Reliable Shaft Monitoring Technology for Critical Assets

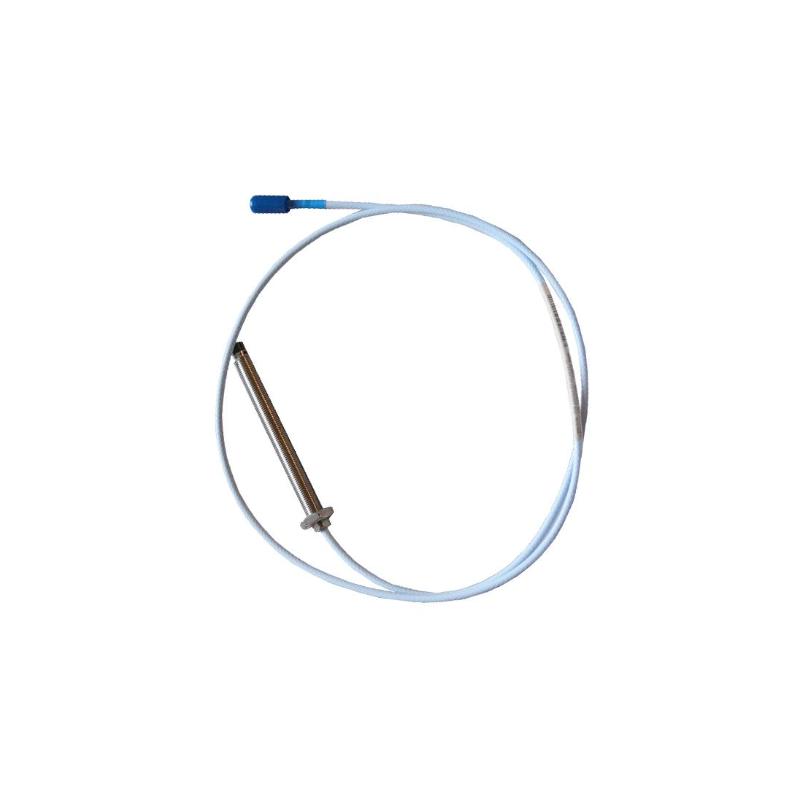

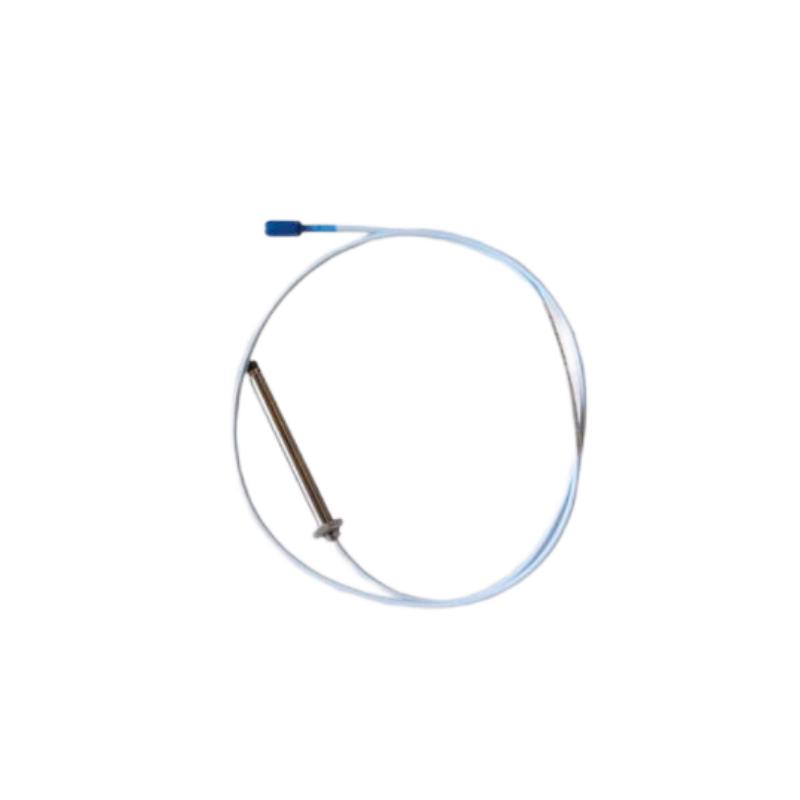

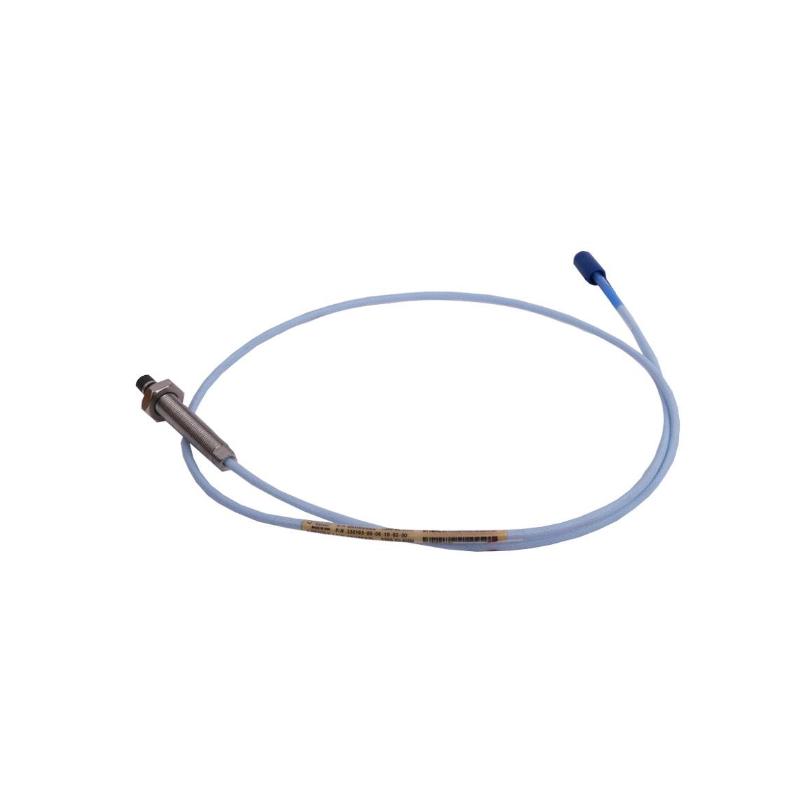

The 162381-064-028-50-05 belongs to the Bently Nevada 3300 XL 8 mm proximity probe family, a widely adopted platform for non-contact measurement of rotating shaft movement. The probe operates by generating an electrical output proportional to the distance between the probe tip and the conductive shaft surface, allowing both dynamic vibration and static position measurements.
This model configuration is designed with a 6.4-inch probe length, 8 mm probe diameter, and 5-meter cable length, making it suitable for installations requiring additional mounting depth while maintaining the standard performance characteristics of the 3300 XL monitoring system.
The probe is typically installed together with a compatible 3300 XL extension cable and 3300 XL Proximitor Sensor to create a complete vibration and position monitoring chain.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 162381-064-028-50-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Sensor Technology | Eddy Current Non-Contact Measurement |
| Probe Diameter | 8 mm |
| Probe Length | 6.4 inch (approximately 162.6 mm) |
| Thread Type | 3/8-24 UNF |
| Cable Length | 5 m (16.4 ft) |
| Cable Type | Integral coaxial cable |
| Connector Type | Miniature coaxial ClickLoc connector |
| Probe Material | Stainless Steel |
| Probe Tip Material | PPS molded probe tip |
| Measurement Type | Shaft vibration, displacement, and position |
| Linear Range | Approximately 2 mm (80 mils) system range |
| Typical Scale Factor | 7.87 V/mm (200 mV/mil) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Operating Temperature | Approximately -52°C to +177°C |
| Dimensions | Approx. 162.6 mm × 8 mm probe body |
| Weight | Approx. 323 g/m |
Industrial Applications
Built for Demanding Rotating Equipment Environments
The 162381-064-028-50-05 3300 XL 8 mm Probe is commonly selected for applications requiring continuous machinery health monitoring and precise shaft measurement.
| Industry | Equipment Applications |
|---|
| Power Generation | Steam turbines, generators, turbine auxiliaries |
| Oil & Gas | Centrifugal compressors, pumps, gas turbines |
| Petrochemical | Process machinery and rotating assets |
| Manufacturing | High-speed motors and production equipment |
| Marine | Propulsion and auxiliary rotating systems |
Typical monitoring functions include:
-
Radial shaft vibration measurement
-
Axial shaft position monitoring
-
Rotor displacement detection
-
Keyphasor® reference measurement
-
Machinery protection systems
-
Predictive maintenance monitoring
The 3300 XL 8 mm system is widely used for fluid-film bearing machines where accurate vibration and position monitoring are required.
Key Advantages
High Accuracy Without Mechanical Contact
The eddy-current sensing principle allows the probe to measure shaft movement without physical contact, eliminating mechanical wear and improving long-term measurement stability.
Proven Industrial Reliability
The 3300 XL 8 mm platform provides a mature and dependable solution for critical machinery monitoring, helping operators identify developing mechanical issues before unexpected failures occur.
Extended Installation Flexibility
The 6.4-inch probe length supports applications where standard-length probes may not provide sufficient installation depth or mechanical clearance.
Strong Environmental Performance
The stainless-steel probe construction and robust cable design allow reliable operation in demanding industrial environments with continuous vibration exposure.
Easy System Integration
The probe works with existing 3300 XL monitoring components, allowing users to maintain standardized spare parts, maintenance procedures, and condition monitoring strategies.
Technical FAQs
Q1: What is the main function of the Bently Nevada 162381-064-028-50-05 probe?
It measures shaft vibration, displacement, and position using non-contact eddy-current sensing technology.
Q2: Is this probe part of the 3300 XL 8 mm system?
Yes. It is designed for use with the Bently Nevada 3300 XL 8 mm proximity transducer system.
Q3: What type of measurement technology does this probe use?
The probe uses eddy-current technology to measure the distance between the probe tip and a conductive target.
Q4: What is the probe diameter?
The probe has an 8 mm sensing diameter, which is the standard configuration for the 3300 XL 8 mm family.
Q5: What is the cable length of this model?
The 162381-064-028-50-05 configuration includes a 5-meter integrated cable.
Q6: Which sensor module is required with this probe?
A compatible 3300 XL Proximitor Sensor is required to process the probe signal.
Q7: Can this probe measure both vibration and shaft position?
Yes. The probe supports both dynamic vibration measurement and static shaft position monitoring.
Q8: What is the recommended probe gap setting?
The typical recommended gap setting is approximately 1.27 mm (50 mils) for standard 3300 XL system calibration.
Q9: Is the probe suitable for turbine applications?
Yes. It is commonly used on turbines, compressors, and other critical rotating machinery.
Q10: What maintenance is required for this proximity probe?
Routine inspection should include checking probe mounting condition, connector integrity, cable condition, and monitoring signal stability.
