External Mounting Housing for 3300 XL 8 mm Proximity Probe Systems

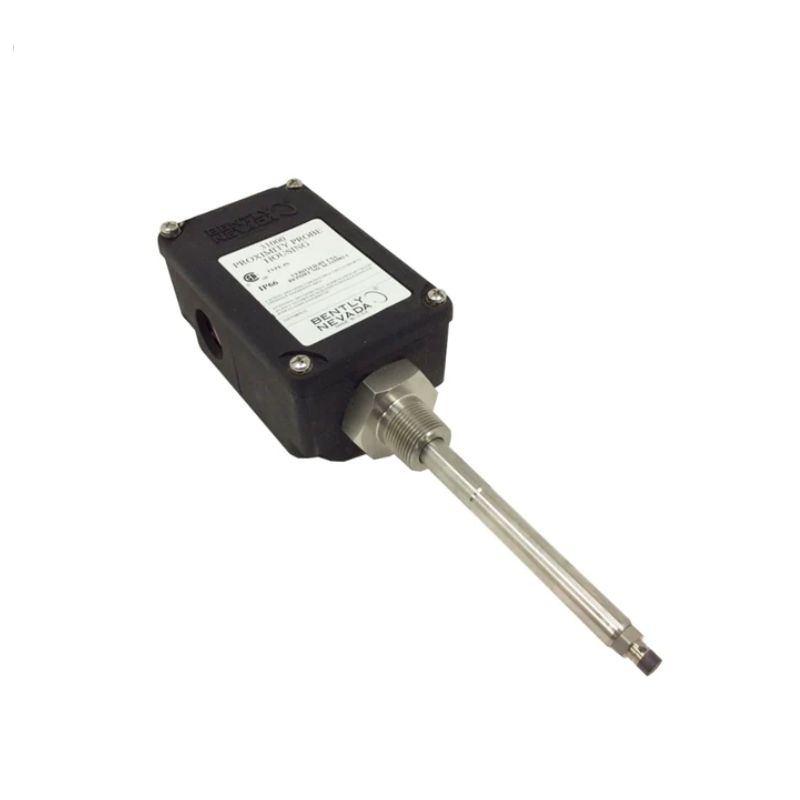

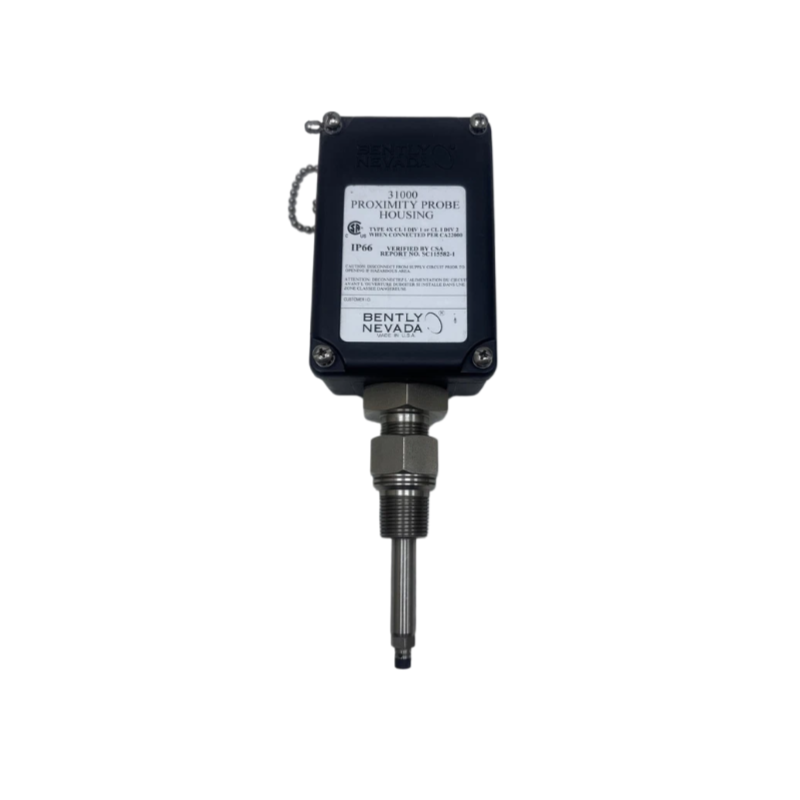

The Bently Nevada 31000-28-10-00-133-03-02 is a 31000 Series Proximity Probe Housing Assembly designed for external mounting and protection of 3300 XL 8 mm proximity probes used in rotating machinery vibration and shaft position monitoring applications. The housing provides external access to the probe and extension cable, allowing probe gap adjustment and probe replacement without disassembling the machine.

The 31000 Series housing assemblies are constructed from glass-reinforced polyphenylene sulfide (PPS) with corrosion-resistant stainless-steel components and are designed for externally mounted proximity probe installations following API 670 recommendations.

Product Specifications

Frequently Asked Questions

Does this assembly include the proximity probe?

Yes. The 28 option identifies a supplied 3300 XL 8 mm proximity probe with multiple approvals, and the 10 option specifies a 1.0 m probe cable.

What does the “133” option mean?

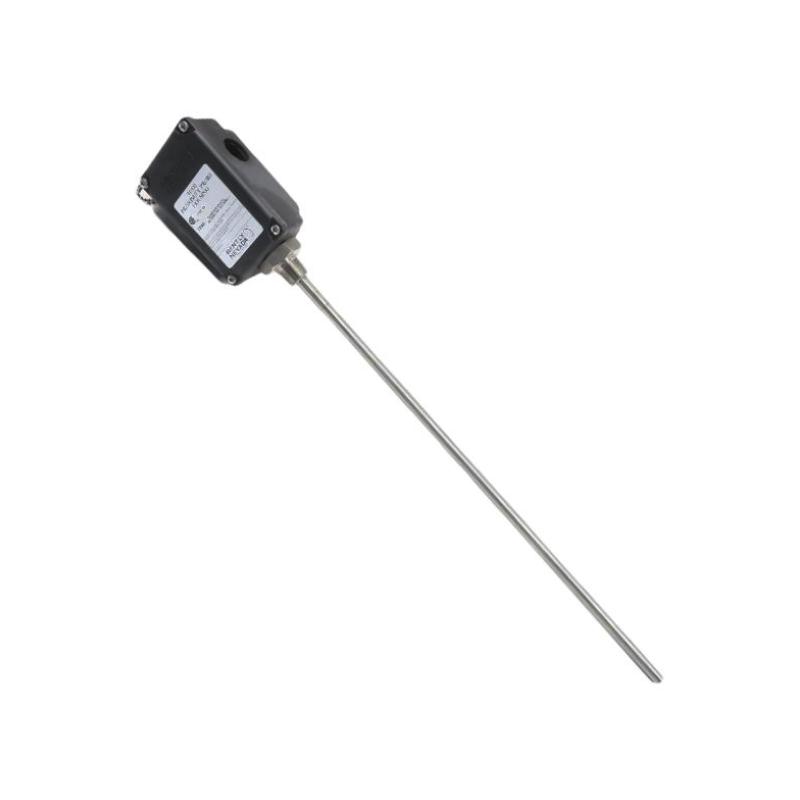

The 133 option specifies a 13.3-inch probe penetration length, allowing installation where the probe must extend a long distance through the machine casing.

What fittings are supplied?

The 03 option includes:

• Two plugs
• One 3/4-14 NPT fitting
• One 3/4-14 NPT to 1/2-14 NPT stainless-steel reducer
• Cable seal grip with interchangeable grommets

Is this an explosion-proof enclosure?

No. The 31000 Series provides mechanical and environmental protection only. For explosion-proof applications, Bently Nevada specifies dedicated explosion-proof housing assemblies such as CA21000 or CA24701.
