Bently Nevada 31000-28-05-00-063-01-02 Proximity Probe Housing

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Bently Nevada 31000-28-05-00-063-01-02 Proximity Probe Housing

Name: Bently Nevada 31000-28-05-00-063-01-02 Proximity Probe Housing
Brand: Bently Nevada PLC
SKU: 9723
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:31000-28-05-00-063-01-02
Product Origin:USA
Product Dimensions:0.5 m
Product Weight:1.2kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

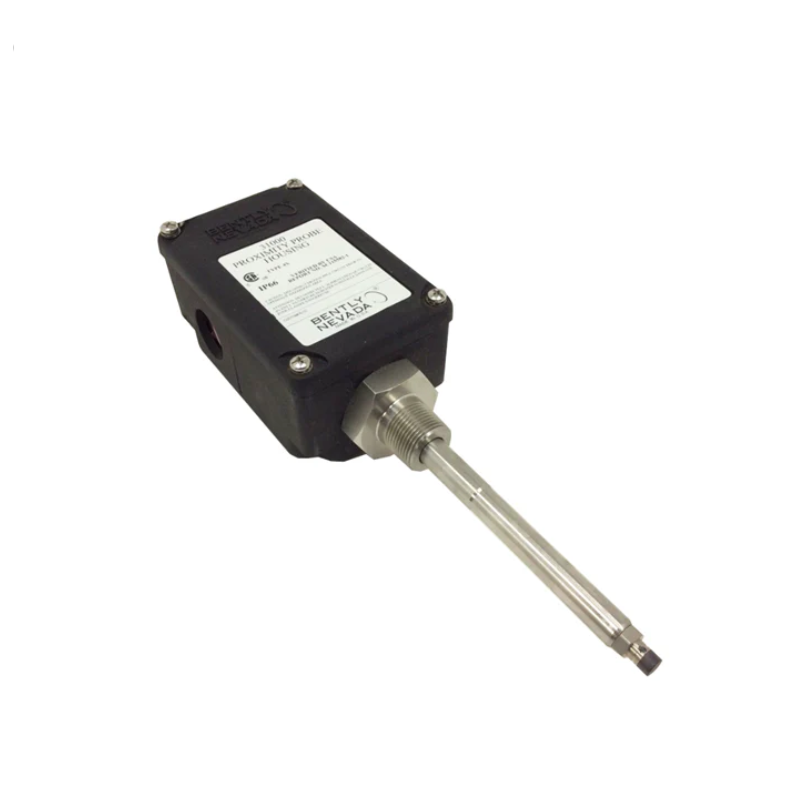

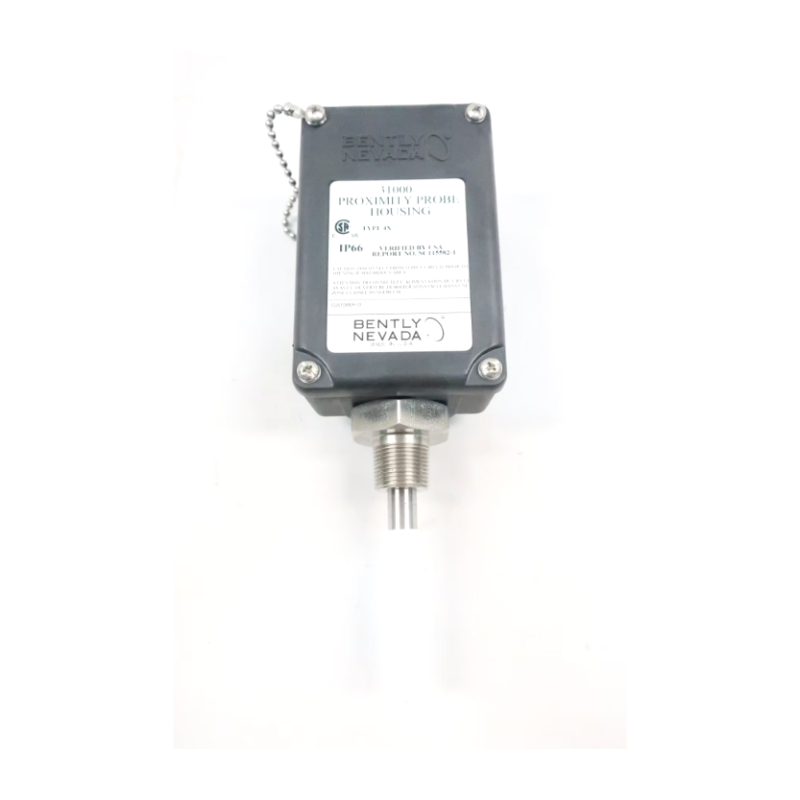

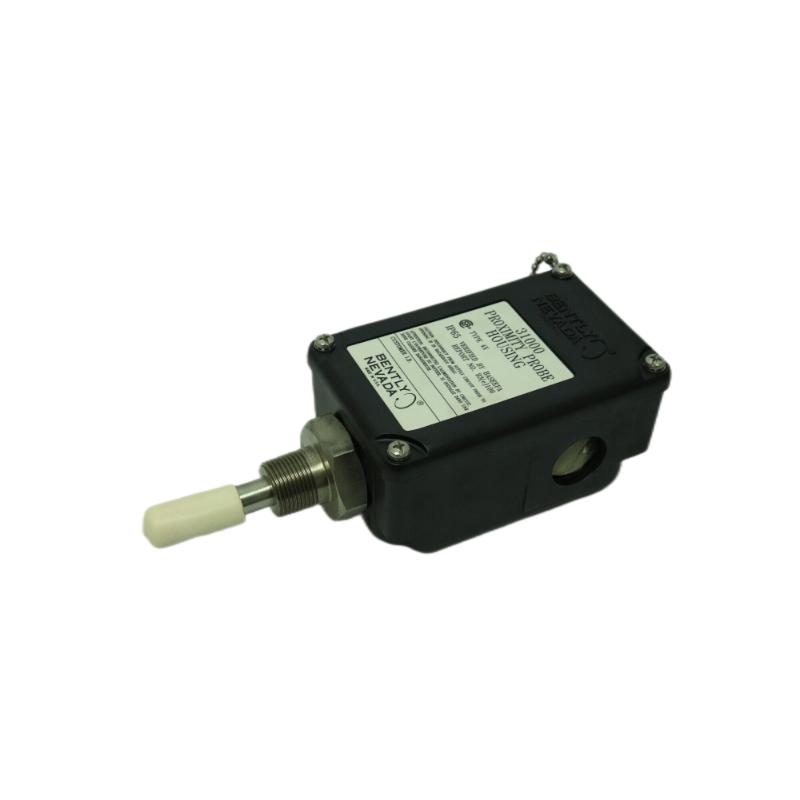

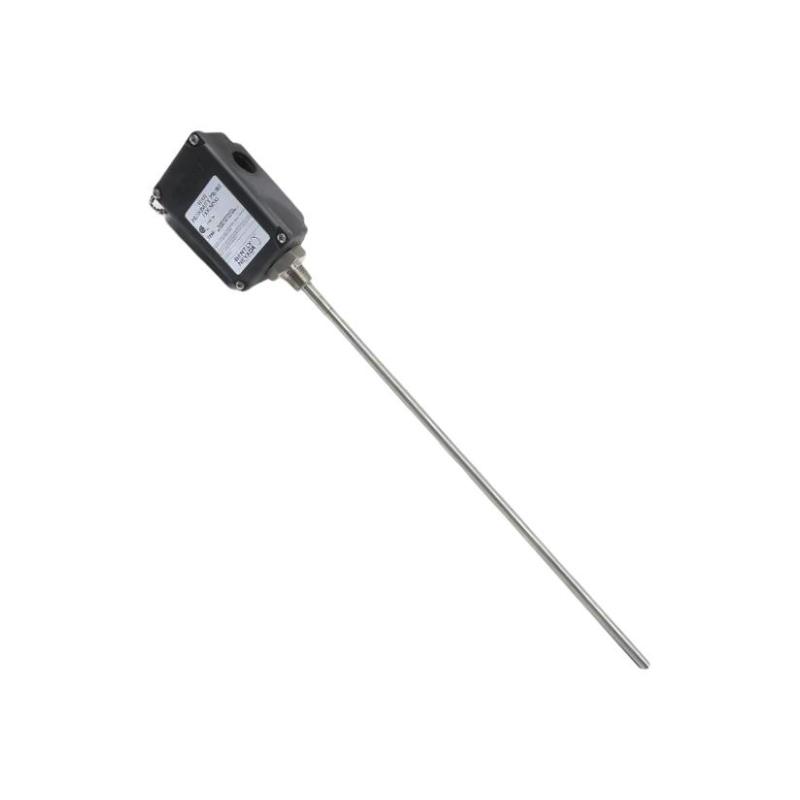

External Housing Assembly for 3300 XL 8 mm Proximity Probe Systems

The Bently Nevada 31000-28-05-00-063-01-02 is a 31000 Series Proximity Probe Housing Assembly designed for external mounting of 3300 XL 8 mm proximity probes used in vibration, shaft position, and Keyphasor® monitoring applications. The housing provides environmental protection and convenient access to the probe and cable, allowing probe adjustment or replacement without machine disassembly. It is designed to comply with API 670 requirements for externally mounted proximity probe housings.

Product Specifications

Specification	Details
Manufacturer	Bently Nevada
Part Number	31000-28-05-00-063-01-02
Product Type	Proximity Probe Housing Assembly
Series	31000
Compatible Probe	3300 XL 8 mm Proximity Probe (Multiple Approvals)
Probe Cable Length	0.5 m (20 in)
Standoff Adapter	None
Probe Penetration	6.3 in (160 mm)
Fittings	One 3/4-14 NPT conduit fitting with two plugs
Mounting Thread	3/4-14 NPT
Housing Material	Glass-reinforced PPS (Polyphenylene Sulfide)
Hardware Material	303/304 Stainless Steel
Typical Weight	Approximately 1.2 kg (2.6 lb)

Typical Applications

The 31000-28-05-00-063-01-02 housing assembly is commonly used on:

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Generators
Fans and blowers
Gearboxes

Typical monitoring functions include:

Radial shaft vibration
Shaft position monitoring
Rotor displacement
Keyphasor® speed/reference measurements
Continuous condition monitoring and machinery protection

Benefits

Simplifies installation and maintenance
Reduces machine downtime during probe replacement
Protects probes and connectors from environmental contaminants
Maintains accurate probe positioning
Improves long-term reliability of vibration monitoring systems
Suitable for harsh industrial environments

Frequently Asked Questions

Does this assembly include a proximity probe?

Yes. The 28 option indicates that a 3300 XL 8 mm proximity probe with multiple approvals is included, and the 05 option specifies a 0.5 m probe cable.

What does the "063" option indicate?

The 063 option specifies a 6.3-inch (160 mm) probe penetration length, making this configuration suitable for applications requiring extended reach through machine casings.

Is a standoff adapter included?

No. The 00 option indicates that no standoff adapter is supplied.

Is the housing explosion-proof?

No. The 31000 Series provides mechanical and environmental protection only. For explosion-proof applications, Bently Nevada recommends the CA21000 or CA24701 housing series.
