Bently Nevada 31000-28-05-00-056-01-02 Proximity Probe Housing Assemblies

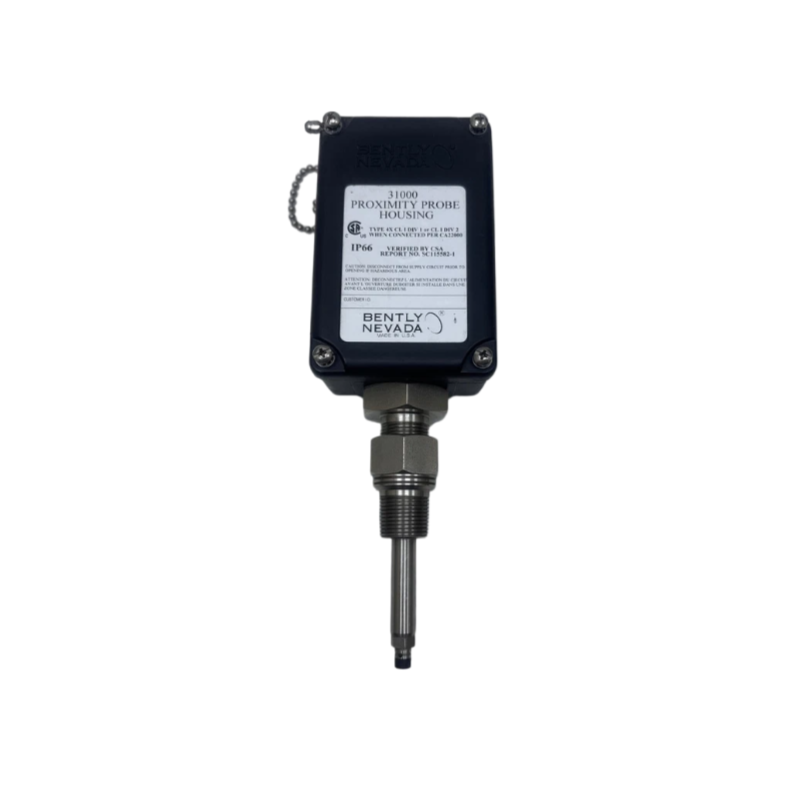

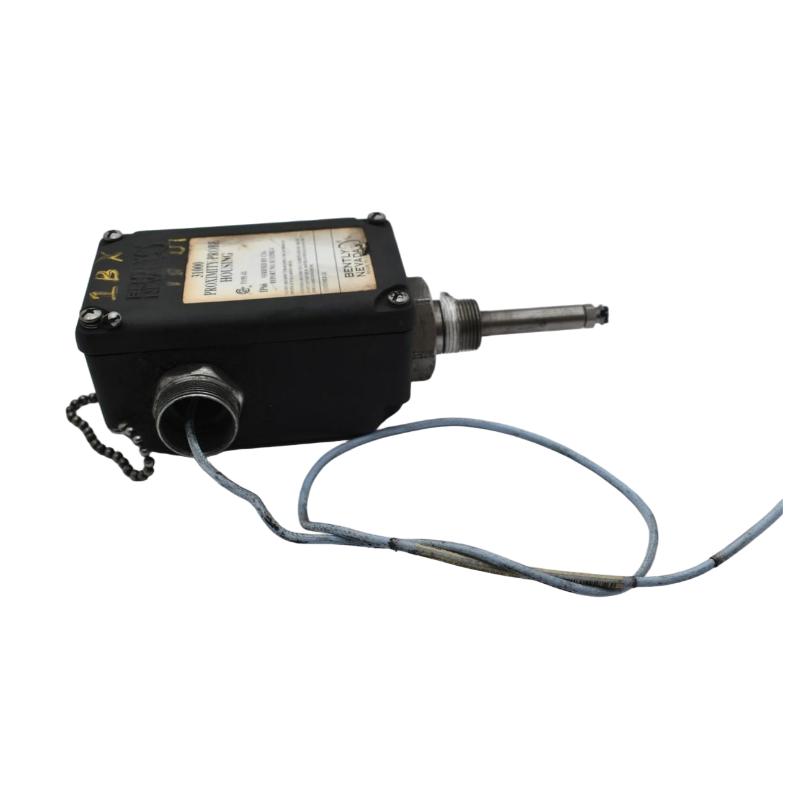

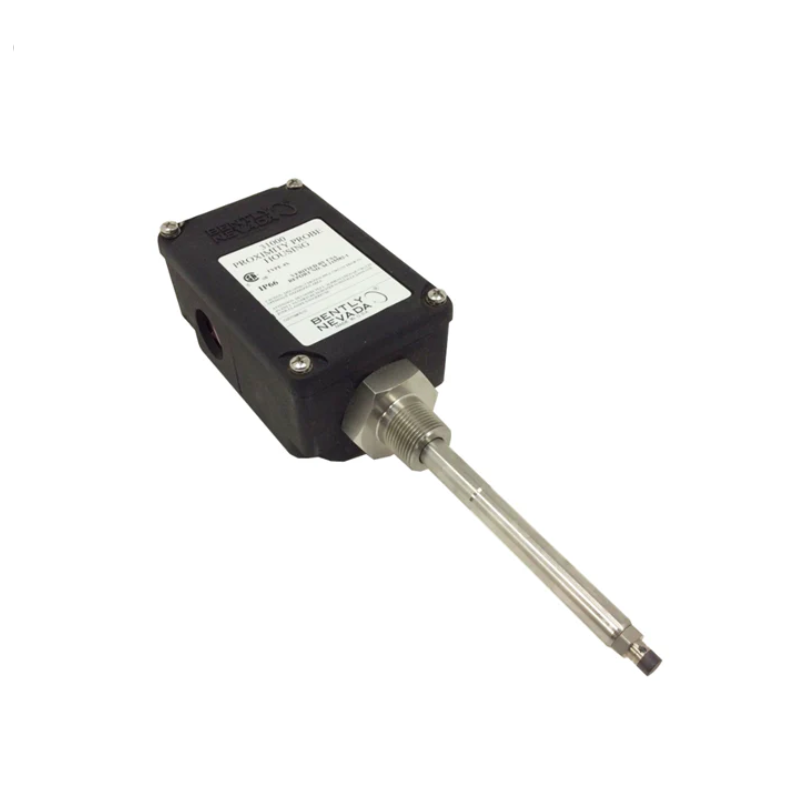

Name: Bently Nevada 31000-28-05-00-056-01-02 Proximity Probe Housing Assemblies
Brand: Bently Nevada PLC
SKU: 9721
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:31000-28-05-00-056-01-02
Product Origin:USA
Product Dimensions:0.5 meter
Product Weight:1.2kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

External Housing Assembly for 3300 XL 8 mm Proximity Probe Systems

The Bently Nevada 31000-28-05-00-056-01-02 is a 31000 Series Proximity Probe Housing Assembly designed to provide secure external mounting and environmental protection for 3300 XL 8 mm proximity probe systems. It allows technicians to adjust the probe gap or replace the probe without disassembling the machine, reducing maintenance time and supporting continuous machinery protection. The 31000 Series is fully compliant with API 670 recommendations for externally mounted proximity probe housings.

Product Specifications

Specification	Details
Manufacturer	Bently Nevada
Part Number	31000-28-05-00-056-01-02
Product Type	Proximity Probe Housing Assembly
Series	31000
Compatible Probe	3300 XL 8 mm Proximity Probe (Multiple Approvals)
Probe Cable Length	0.5 m (20 in)
Standoff Adapter	None
Probe Penetration	5.6 in (142 mm)
Fittings	One 3/4-14 NPT conduit fitting with two plugs
Mounting Thread	3/4-14 NPT
Housing Material	Glass-reinforced Polyphenylene Sulfide (PPS)
Hardware Material	Corrosion-resistant stainless steel
Typical Weight	Approximately 1.2 kg (2.6 lb)

Typical Applications

The 31000-28-05-00-056-01-02 housing assembly is commonly installed on:

Steam turbines
Gas turbines
Centrifugal compressors
Industrial pumps
Electric motors
Generators
Fans and blowers
Gearboxes

Typical monitoring applications include:

Radial shaft vibration
Shaft position
Rotor displacement
Keyphasor® reference measurements
Continuous machinery condition monitoring

Frequently Asked Questions

Does this assembly include the proximity probe?

Yes. The 28 option specifies a factory-installed 3300 XL 8 mm proximity probe with multiple approvals, and the 05 option includes a 0.5 m probe cable.

What does the "056" option indicate?

The 056 option specifies a 5.6-inch (142 mm) probe penetration, making this version suitable for applications requiring a longer probe reach.

Is a standoff adapter included?

No. The 00 option indicates that no standoff adapter is supplied.

Is this housing explosion-proof?

No. The 31000 Series provides mechanical and environmental protection only. For explosion-proof applications, Bently Nevada recommends dedicated explosion-proof housing assemblies such as the CA21000 or CA24701.
