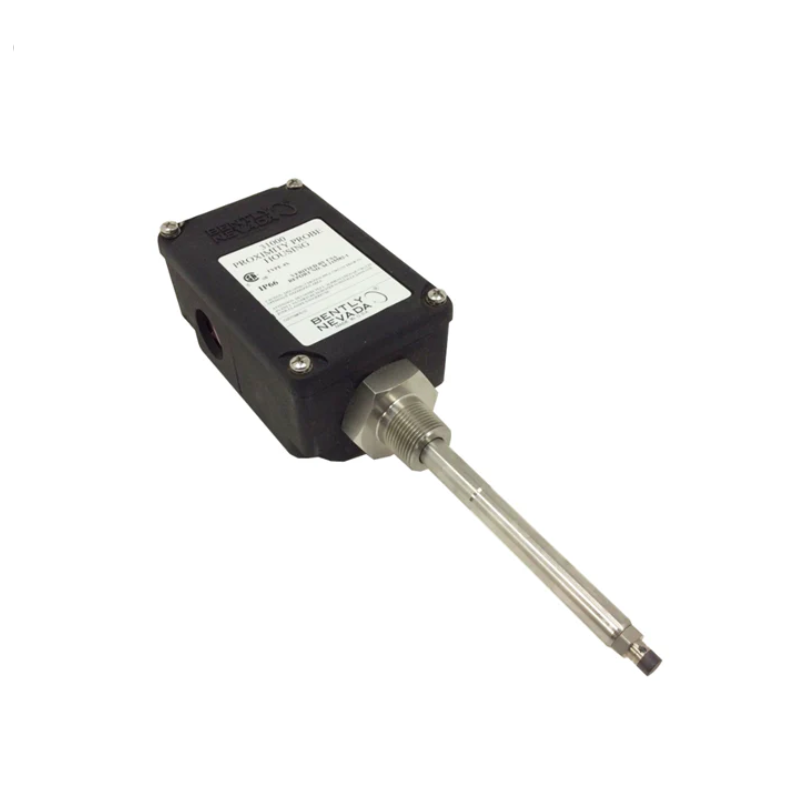

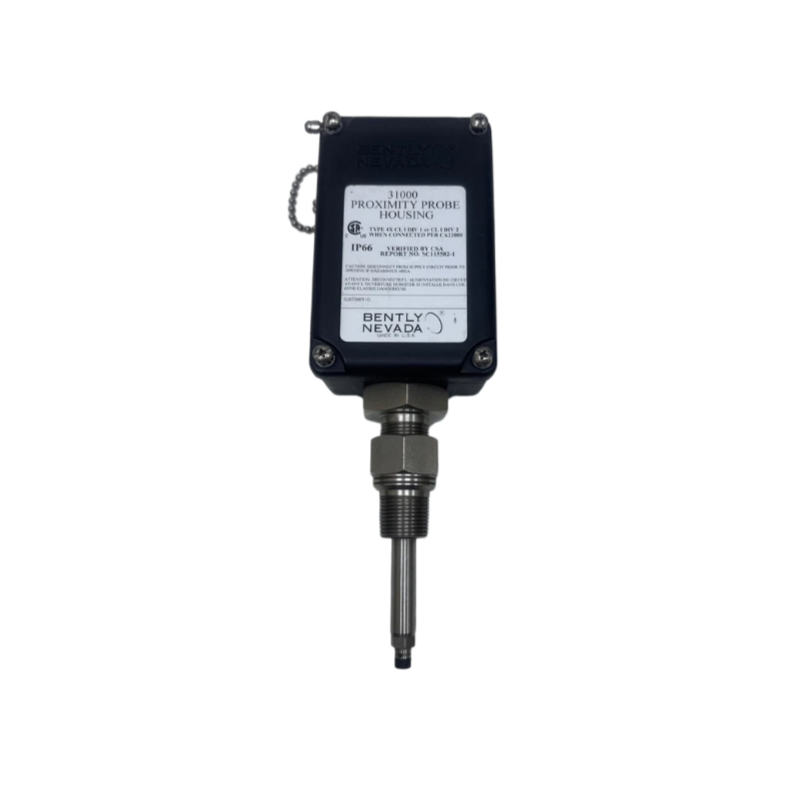

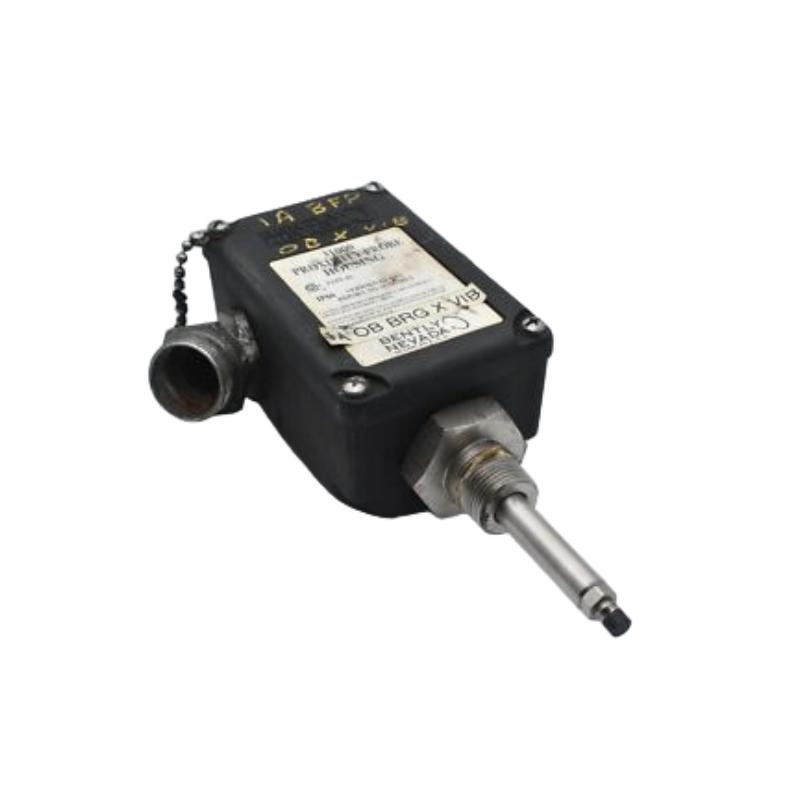

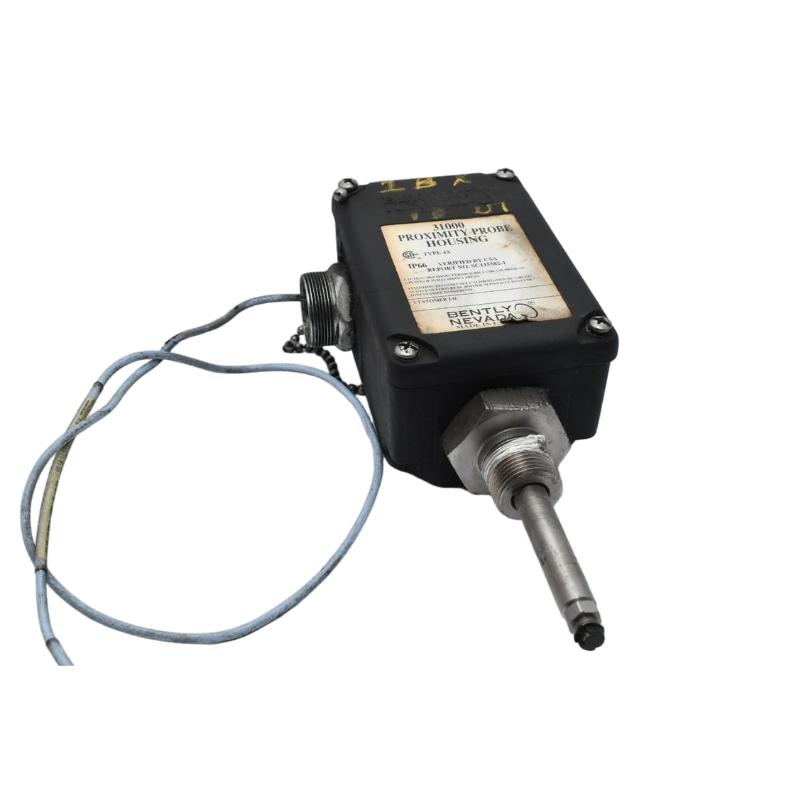

External Housing Assembly for 3300 XL 8 mm Proximity Probe Systems

The Bently Nevada 31000-28-05-00-035-01-02 is a 31000 Series Proximity Probe Housing Assembly designed to provide secure external mounting and environmental protection for 3300 XL 8 mm proximity probes. It enables probe gap adjustment and probe replacement without dismantling the machine, helping reduce maintenance time while supporting continuous vibration monitoring and machinery protection. The 31000 Series is fully compliant with API 670 recommendations for externally mounted proximity probe housings.

Product Specifications

Specification	Details
Manufacturer	Bently Nevada
Part Number	31000-28-05-00-035-01-02
Product Type	Proximity Probe Housing Assembly
Series	31000
Compatible Probe	3300 XL 8 mm Proximity Probe (Multiple Approvals)
Probe Cable Length	0.5 m (20 in)
Standoff Adapter	None
Probe Penetration	3.5 in (88.9 mm)
Fittings	One 3/4-14 NPT conduit fitting with two plugs
Mounting Thread	3/4-14 NPT
Housing Material	Glass-reinforced Polyphenylene Sulfide (PPS)
Hardware Material	Corrosion-resistant stainless steel
Typical Weight	Approximately 1.2 kg (2.6 lb)

Key Features

Designed for 3300 XL 8 mm proximity probe installations
External mounting allows probe adjustment without opening the machine
Simplifies probe replacement during maintenance
Rugged PPS housing with corrosion-resistant stainless-steel components
Suitable for harsh industrial environments
Compatible with Bently Nevada 3300 and 3500 machinery monitoring systems
Designed in accordance with API 670 installation practices.

Typical Applications

The 31000-28-05-00-035-01-02 housing assembly is commonly installed on:

Steam turbines
Gas turbines
Centrifugal compressors
Industrial pumps
Electric motors
Generators
Fans and blowers
Gearboxes

Typical measurements include:

Radial shaft vibration
Shaft position
Rotor displacement
Keyphasor® reference measurements
Continuous machinery condition monitoring

Frequently Asked Questions

Does this housing include the proximity probe?

Yes. The 28 option specifies a 3300 XL 8 mm proximity probe with multiple approvals, while the 05 option indicates a 0.5 m probe cable is supplied with the housing assembly.

What does the "035" option represent?

The 035 option specifies a 3.5-inch (88.9 mm) probe penetration, allowing installation on machinery requiring a longer probe reach.

Is a standoff adapter included?

No. The 00 option indicates that no standoff adapter is supplied.

Is this housing explosion-proof?

No. The 31000 Series provides mechanical and environmental protection only. For explosion-proof applications, Bently Nevada recommends dedicated explosion-proof housing assemblies such as the CA21000 or CA24701 series.
