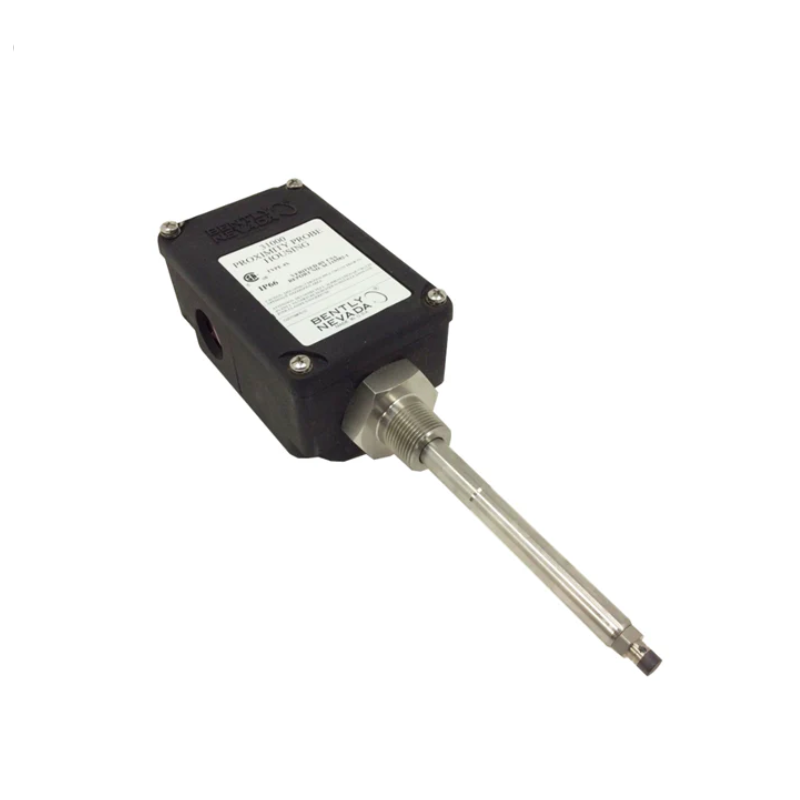

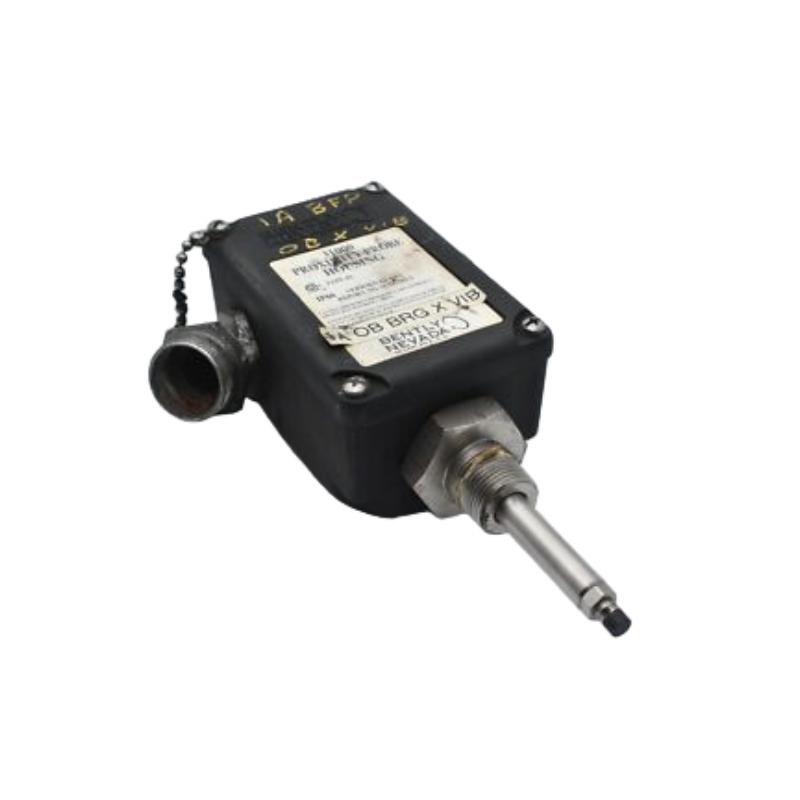

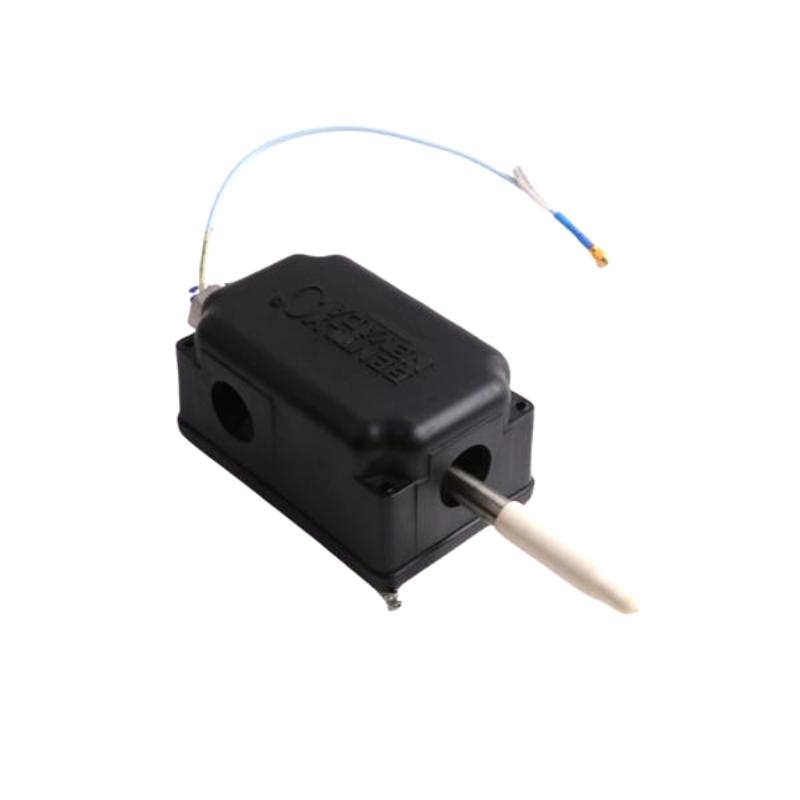

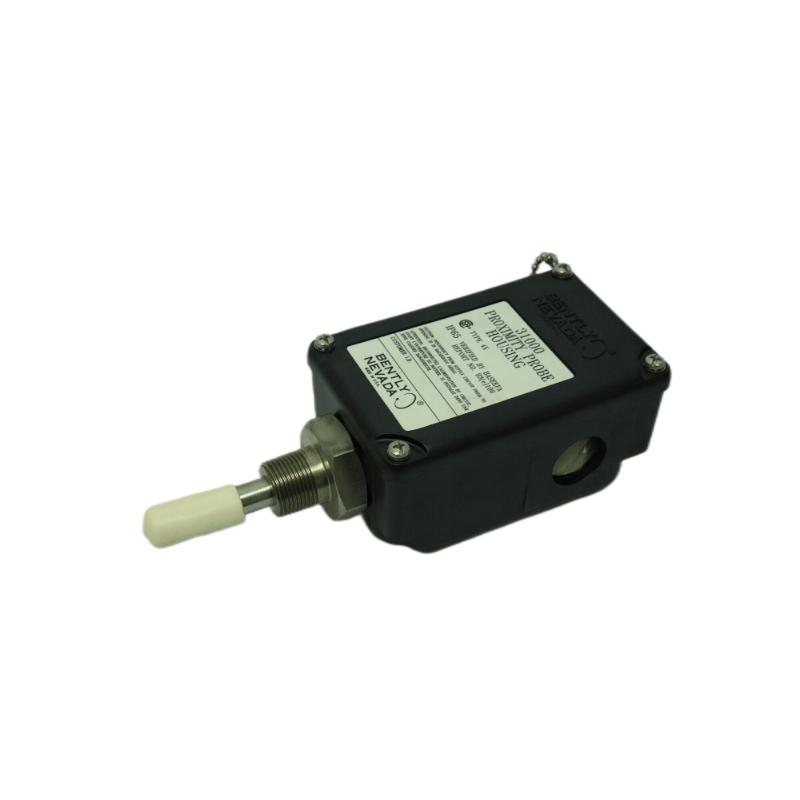

External Housing Assembly for 3300 XL 8 mm Proximity Probe Systems
The Bently Nevada 31000-28-05-00-024-03-02 is a 31000 Series Proximity Probe Housing Assembly designed to provide secure external mounting, environmental protection, and easy maintenance access for 3300 XL 8 mm proximity probe systems. It enables technicians to adjust the probe gap or replace the probe without opening the machine casing, making it ideal for continuous machinery protection and condition monitoring applications.
The 31000 Series housing assemblies are manufactured from high-strength polyphenylene sulfide (PPS) with corrosion-resistant stainless-steel hardware and are designed to comply with API 670 recommendations for externally mounted proximity probe housings.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-28-05-00-024-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 31000 |
| Compatible Probe | 3300 XL 8 mm Proximity Probe (multiple approvals) |
| Probe Cable Length | 0.5 m (20 in) |
| Standoff Adapter | None |
| Probe Penetration | 2.4 in (024 option) |
| Fittings | Two plugs, one 3/4-14 NPT fitting with cable seal grip |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Glass-filled Polyphenylene Sulfide (PPS) |
| Hardware Material | Corrosion-resistant stainless steel |
| Typical Application | External mounting for vibration and position probes |
