External Mounting Housing for Bently Nevada Proximity Probe Systems

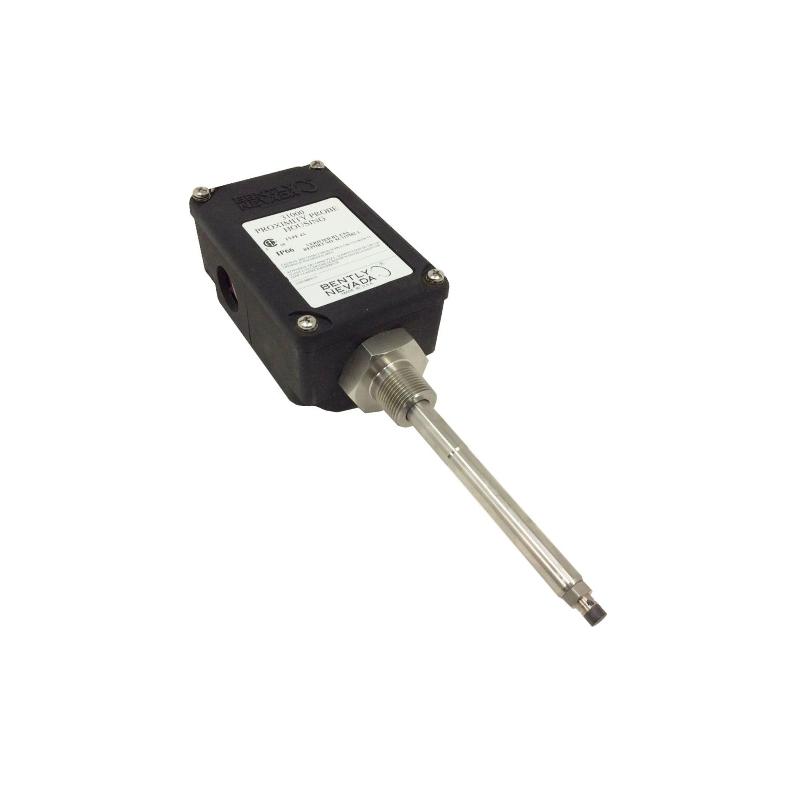

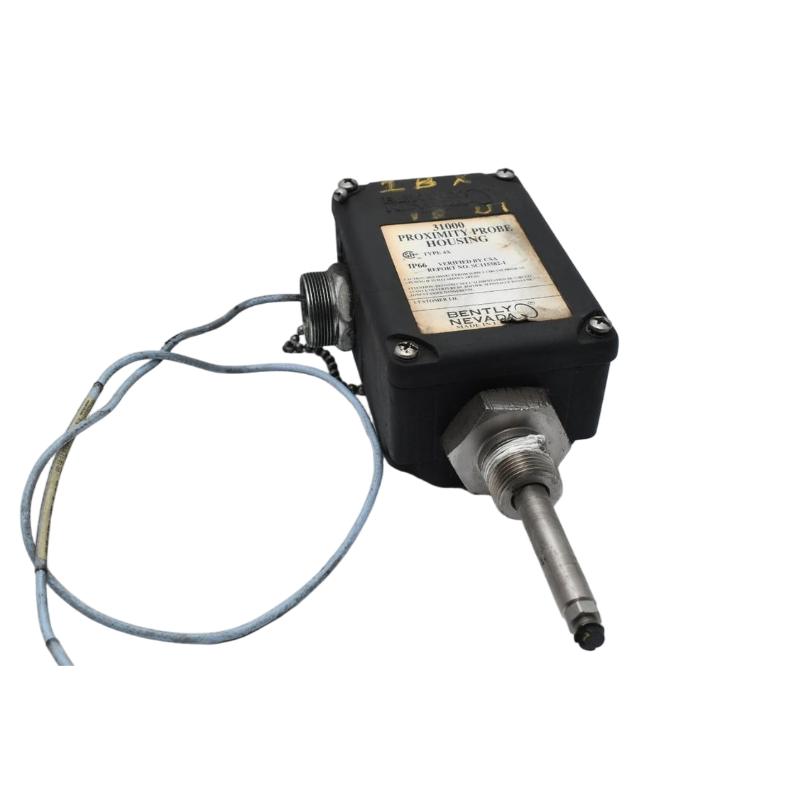

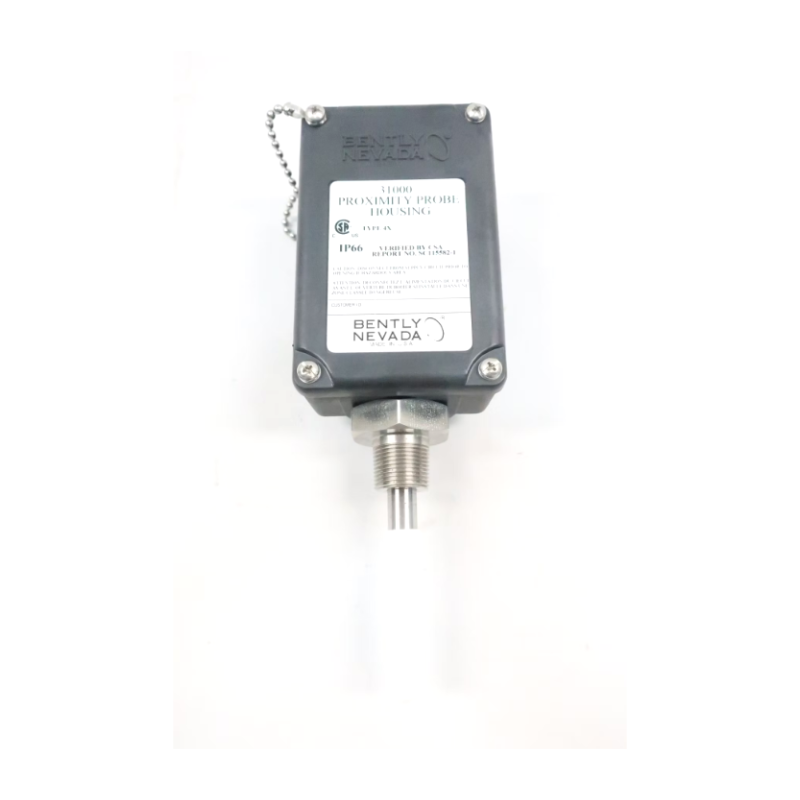

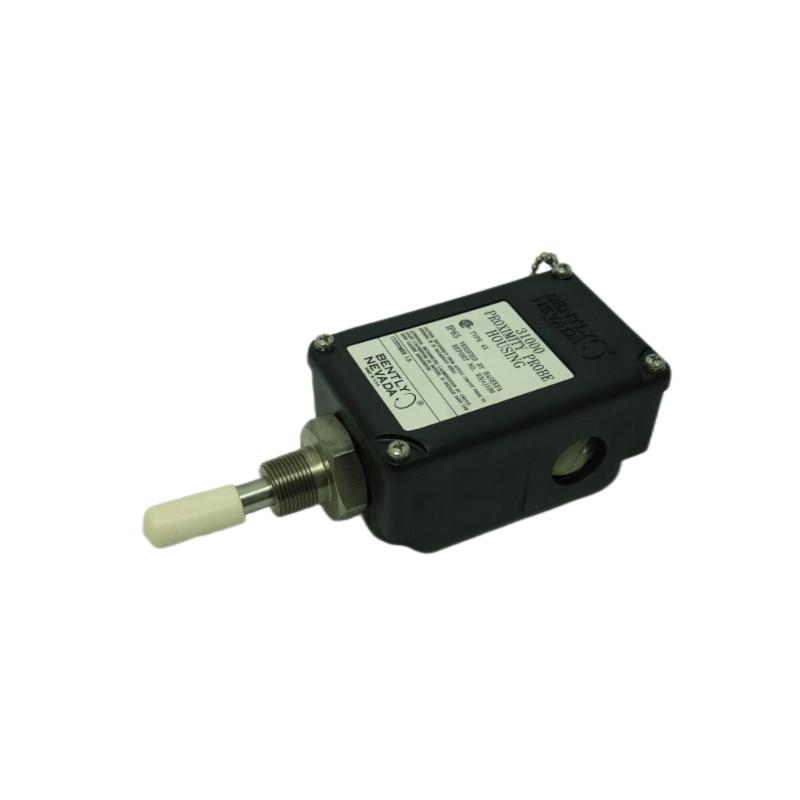

The Bently Nevada 31000-00-00-00-031-01-02 is a 31000 Series Proximity Probe Housing Assembly designed to securely mount and protect proximity probes used for shaft vibration and position monitoring on rotating machinery. The housing allows technicians to adjust the probe gap or replace the probe without disassembling the machine, making it ideal for continuous machinery protection and maintenance applications.

The 31000 Series housing assemblies comply with API 670 recommendations for externally mounted proximity probe housings and are commonly used with Bently Nevada 3300 XL and compatible proximity transducer systems.

Product Specifications

Frequently Asked Questions

What is the purpose of the 31000 Proximity Probe Housing Assembly?

It provides a protective external housing that securely mounts a proximity probe while allowing easy probe adjustment or replacement without opening the machine.

Does this part include a proximity probe?

No. The 00 probe option indicates that the housing is supplied without a probe, allowing users to install a compatible probe separately.

Which probe systems is it compatible with?

It is commonly used with Bently Nevada 3300 XL 8 mm, 3300 XL NSv, and other compatible proximity transducer systems, depending on the selected housing configuration.

Is it suitable for hazardous areas?

Yes. When installed with an approved transducer system and appropriate intrinsic safety barriers, the housing assembly can be used in hazardous-area applications.
