BBently Nevada 330101-00-49-90-12-RU 3300 XL 8mm Proximity Probes

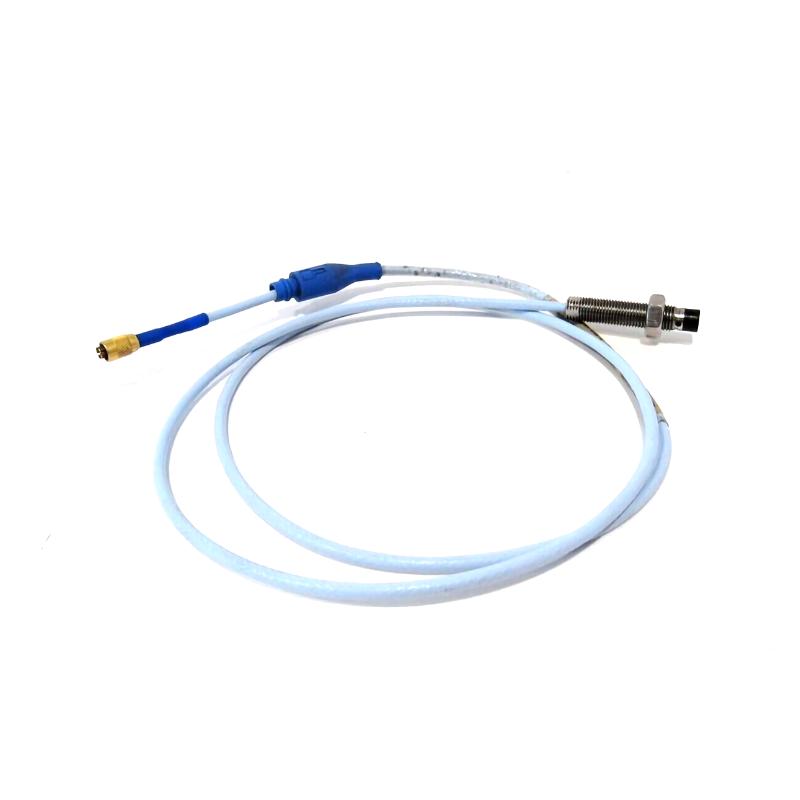

Name: BBently Nevada 330101-00-49-90-12-RU 3300 XL 8mm Proximity Probes
Brand: Bently Nevada PLC
SKU: 9570
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330101-00-49-90-12-RU
Product Origin:USA
Product Dimensions:Ø8 mm × 124.5 mm
Product Weight:0.6kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Description

The Bently Nevada 330101-00-49-90-12-RU 3300 XL 8 mm Proximity Probe is a precision eddy-current proximity probe designed for the 3300 XL 8 mm Proximity Transducer System. It provides accurate non-contact measurement of shaft vibration and shaft position for continuous monitoring of rotating machinery in industrial applications.

This configuration features a 4.9 in. (124.5 mm) probe case length, a 9.0 m (29.5 ft) FluidLoc® integrated cable, a Miniature ClickLoc™ coaxial connector, and the RU country-specific certification option. The FluidLoc® cable design helps reduce fluid migration through the cable, contributing to dependable long-term operation in challenging environments. The probe is fully compatible with matching 3300 XL Proximitor Sensors configured for a 9-meter system.

Technical Specifications

Specification	Details
Manufacturer	Bently Nevada
Model Number	330101-00-49-90-12-RU
Product Type	3300 XL 8 mm Proximity Probe
Series	3300 XL 8 mm Proximity Transducer System
Probe Diameter	8 mm
Measurement Principle	Eddy Current, Non-contact
Unthreaded Length	0.0 in.
Overall Case Length	4.9 in. (124.5 mm)
Integrated Cable Length	9.0 m (29.5 ft)
Cable Type	FluidLoc® Cable
Connector Type	Miniature ClickLoc™ Coaxial Connector
Mounting Thread	3/8-24 UNF
Linear Measurement Range	2.0 mm (80 mils)
Scale Factor	7.87 V/mm (200 mV/mil) ±5%
Frequency Response	0 Hz to 10 kHz
Operating Temperature	-52°C to +177°C (-62°F to +351°F)
Minimum Target Diameter	15.2 mm (0.6 in.)
Approval Option	RU Country Approval
Approximate Dimensions	Ø8 mm × 124.5 mm
Approximate Net Weight	0.56 kg
Approximate Shipping Weight	0.90 kg
Country of Origin	USA

Typical Applications

The 330101-00-49-90-12-RU is suitable for continuous condition monitoring on a wide variety of rotating assets where precise shaft motion measurement is required.

Typical applications include:

Steam turbines
Gas turbines
Centrifugal compressors
Industrial pumps
Electric motors
Generators
Gearboxes
Fans
Blowers
Turbo-expanders

Its 9-meter FluidLoc® cable provides installation flexibility for applications requiring extended cable routing while maintaining stable measurement performance.

Product Advantages

Genuine Bently Nevada 3300 XL Series proximity probe.
High-precision 8 mm eddy-current sensing technology.
Extended 4.9-inch probe body.
Factory-installed 9.0 m FluidLoc® cable.
Miniature ClickLoc™ connector for secure installation.
Enhanced cable design to help reduce fluid migration.
Excellent linearity and repeatability.
Rugged stainless steel construction.
Compatible with 3300 XL Proximitor Sensors.
Designed for dependable long-term machinery monitoring.

Technical FAQs

1. What is the primary function of this probe?
It measures shaft vibration and shaft position without physical contact using eddy-current sensing technology.

2. What is the probe diameter?
The sensing tip diameter is 8 mm.

3. What is the overall case length?
The probe case length is 4.9 inches (124.5 mm).

4. How long is the integrated cable?
This model includes a 9.0 m (29.5 ft) FluidLoc® integrated cable.

5. What connector is used?
It is equipped with a Miniature ClickLoc™ coaxial connector.

6. What does the "12" cable option indicate?
It specifies a FluidLoc® cable with a Miniature ClickLoc™ connector.

7. What does the "RU" suffix represent?
The RU suffix identifies a country-specific approval/configuration for this product variant.

8. What mounting thread does the probe use?
The probe body uses a 3/8-24 UNF thread.

9. Which components are compatible with this probe?
It is designed for use with compatible 3300 XL Proximitor Sensors configured for a 9-meter transducer system.

10. Is this probe suitable for continuous online monitoring?
Yes. It is engineered for permanent installation on critical rotating machinery requiring continuous condition monitoring.
