Engineered for Reliable Shaft Monitoring

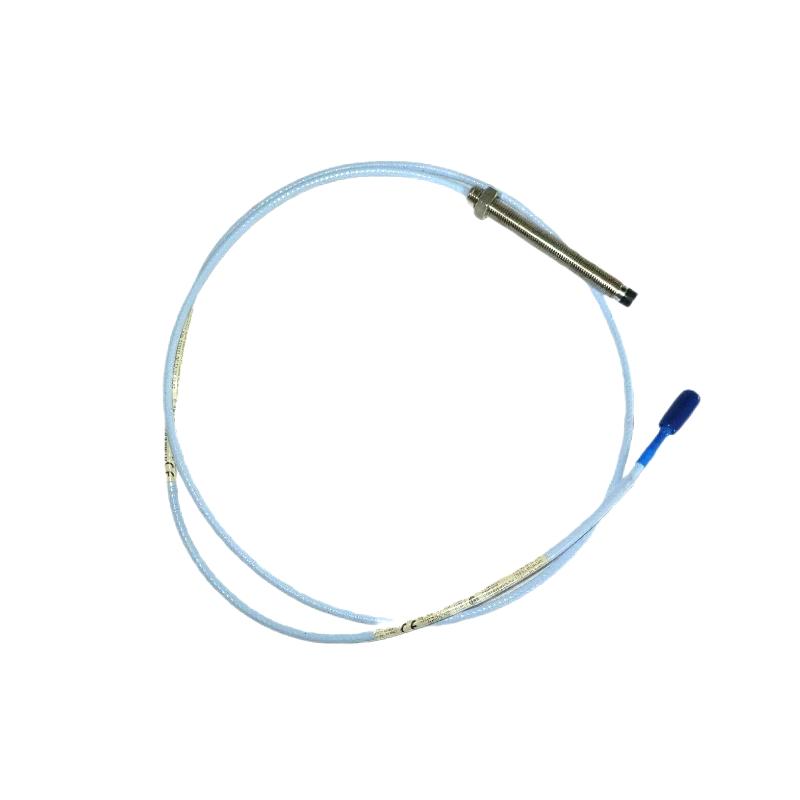

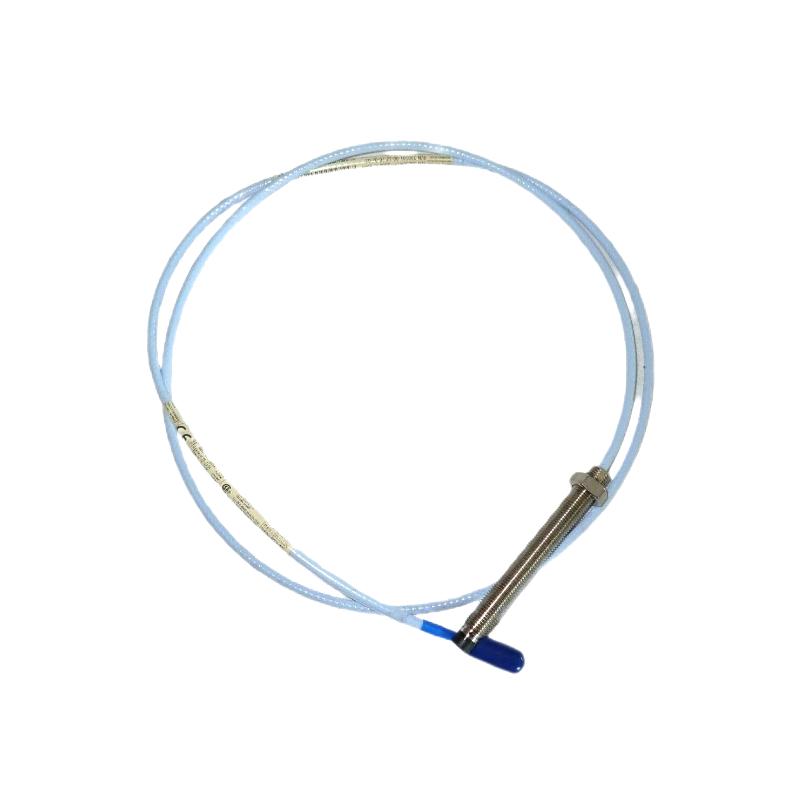

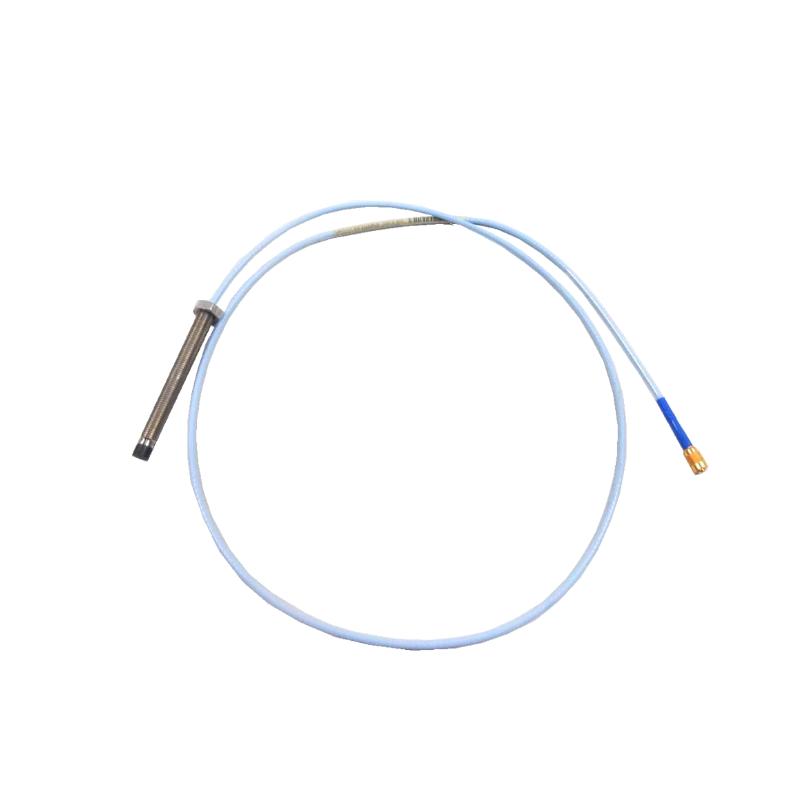

The Bently Nevada 330101-00-48-10-02-00 3300 XL 8 mm Proximity Probe is a high-accuracy eddy-current proximity probe designed for the 3300 XL 8 mm Proximity Transducer System. It provides dependable, non-contact measurement of shaft vibration and shaft position for rotating machinery, helping maintain consistent monitoring performance in demanding industrial environments.
This model features a 4.8 in. (121.9 mm) probe case length, a 1.0 m (3.3 ft) integrated standard cable, a Miniature ClickLoc™ coaxial connector, and Option 00 (no agency approvals). It is intended for use with compatible 3300 XL Extension Cables and 3300 XL Proximitor Sensors as part of a complete transducer system.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-48-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Probe Diameter | 8 mm |
| Sensing Principle | Eddy Current, Non-contact |
| Unthreaded Length | 0.0 in. |
| Overall Case Length | 4.8 in. (121.9 mm) |
| Integrated Cable Length | 1.0 m (3.3 ft) |
| Cable Type | Standard FEP Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Mounting Thread | 3/8-24 UNF |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 Hz to 10 kHz |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Minimum Target Diameter | 15.2 mm (0.6 in.) |
| Agency Approval | None (Option 00) |
| Approximate Dimensions | Ø8 mm × 121.9 mm |
| Approximate Net Weight | 0.16 kg |
| Approximate Shipping Weight | 0.42 kg |
| Country of Origin | USA |
