Precision Monitoring Solution

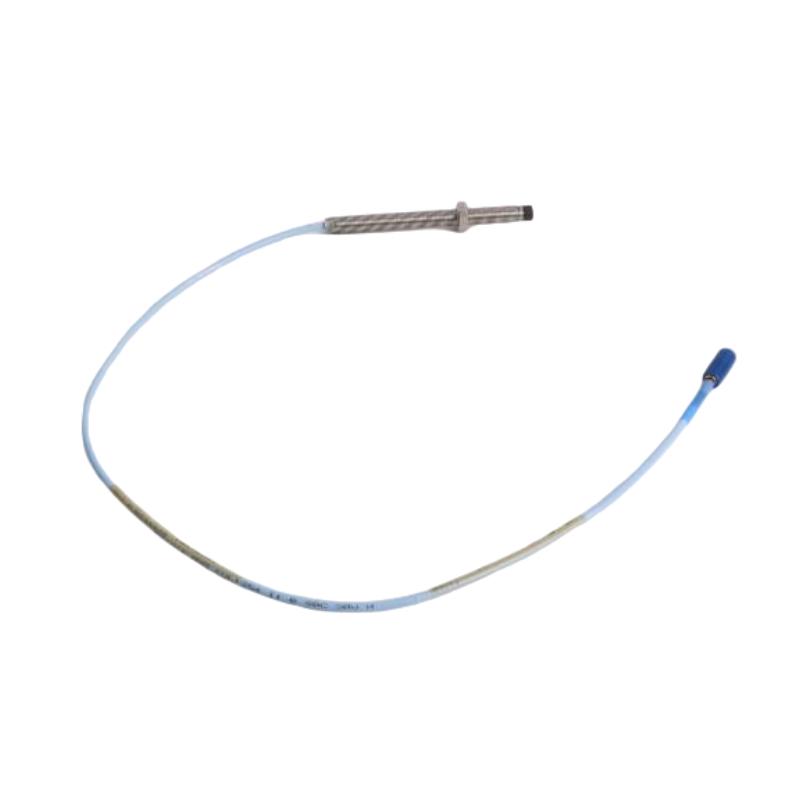

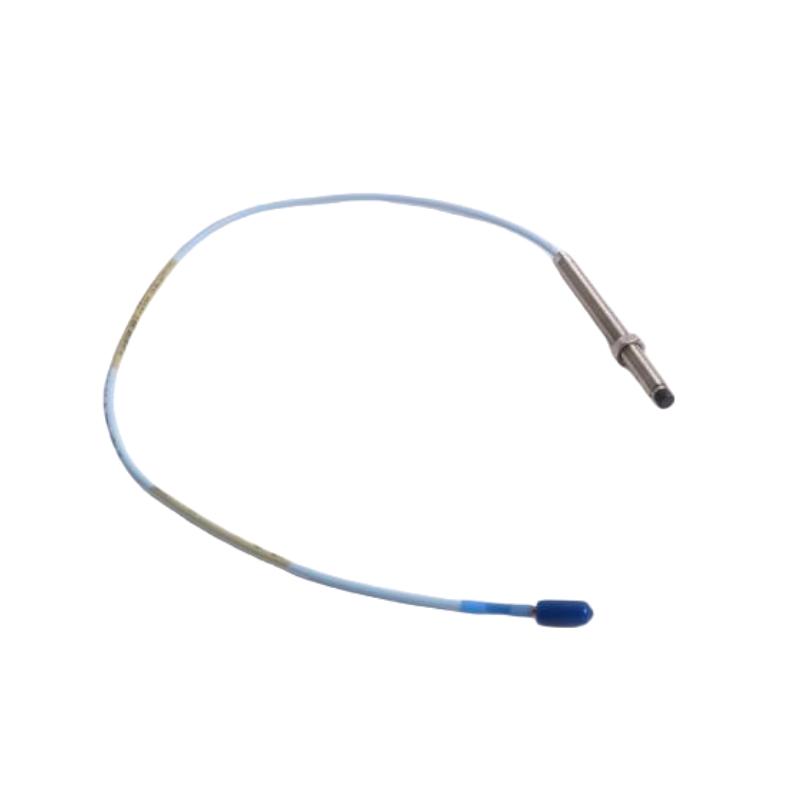

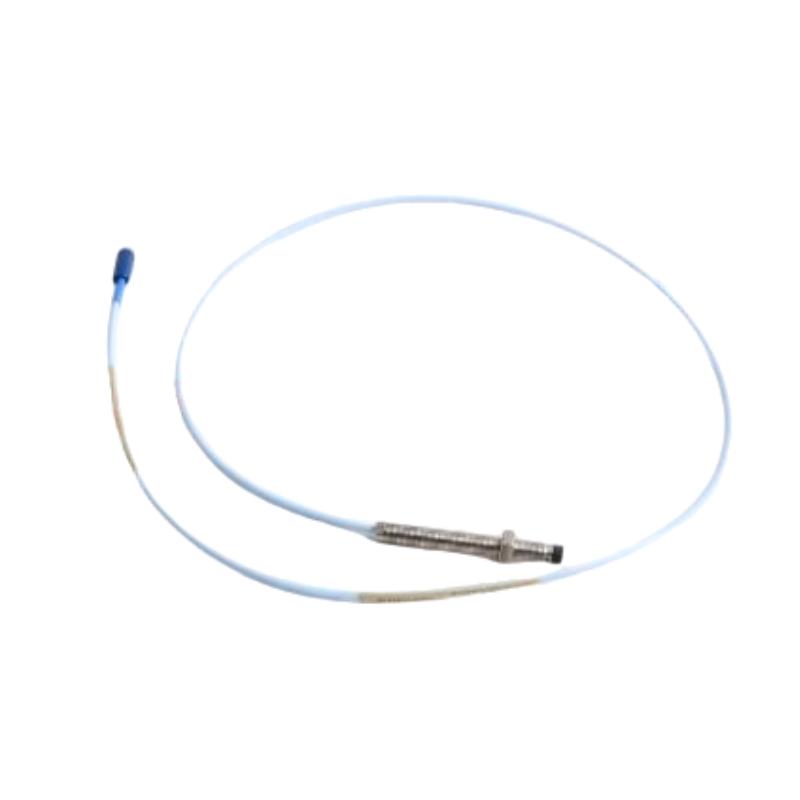

The Bently Nevada 330101-00-49-90-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy-current proximity probe engineered for the 3300 XL 8 mm Proximity Transducer System. It is designed to provide accurate, non-contact measurement of shaft vibration and shaft position on rotating equipment, delivering dependable performance for continuous machinery monitoring.
This configuration features a 4.9 in. (124.5 mm) probe case length, a 9.0 m (29.5 ft) integrated standard cable, a Miniature ClickLoc™ coaxial connector, and CSA, ATEX, and IECEx hazardous-area approvals (Option 05). When combined with a compatible 3300 XL Proximitor Sensor, it forms a complete transducer system that complies with the performance requirements of API 670.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-49-90-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Probe Diameter | 8 mm |
| Measurement Principle | Eddy Current, Non-contact |
| Unthreaded Length | 0.0 in. |
| Overall Case Length | 4.9 in. (124.5 mm) |
| Integrated Cable Length | 9.0 m (29.5 ft) |
| Cable Type | Standard FEP Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Mounting Thread | 3/8-24 UNF |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 Hz to 10 kHz |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Minimum Target Diameter | 15.2 mm (0.6 in.) |
| Agency Approvals | CSA, ATEX, IECEx |
| Approximate Dimensions | Ø8 mm × 124.5 mm |
| Approximate Net Weight | 0.55 kg |
| Approximate Shipping Weight | 0.85 kg |
| Country of Origin | USA |
