Product Overview

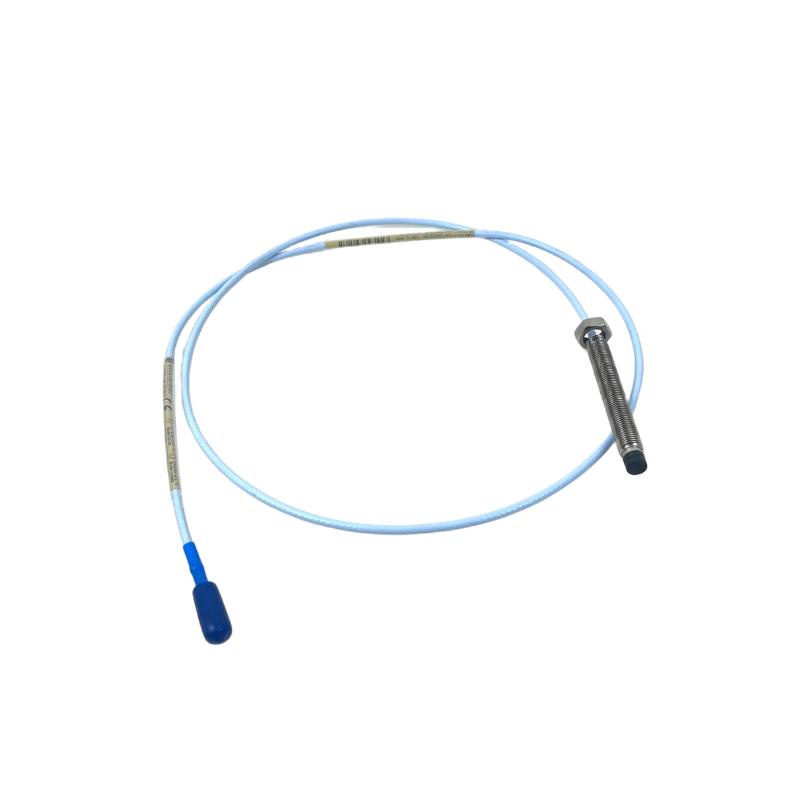

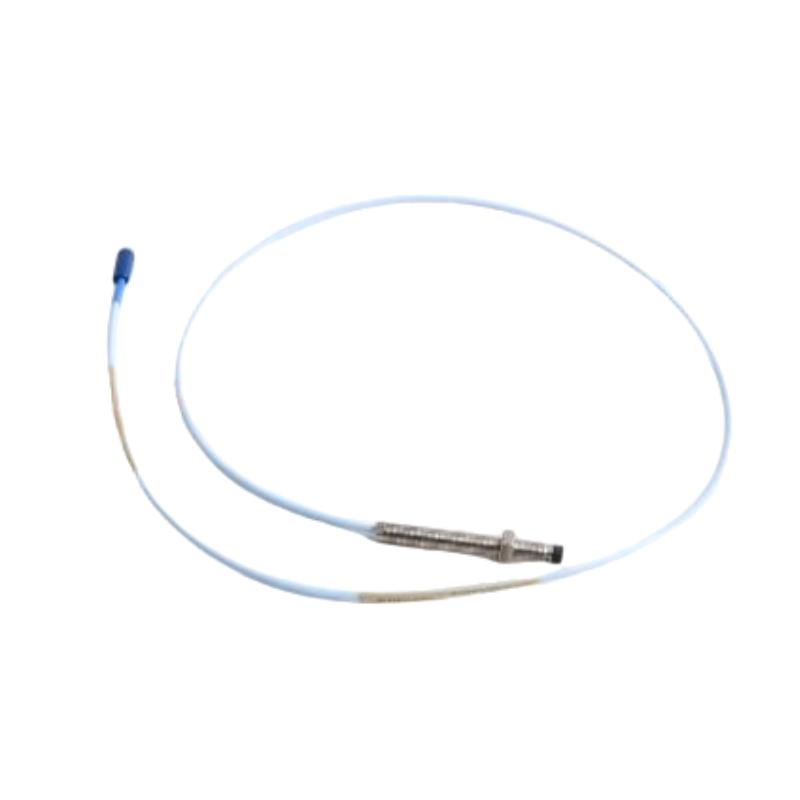

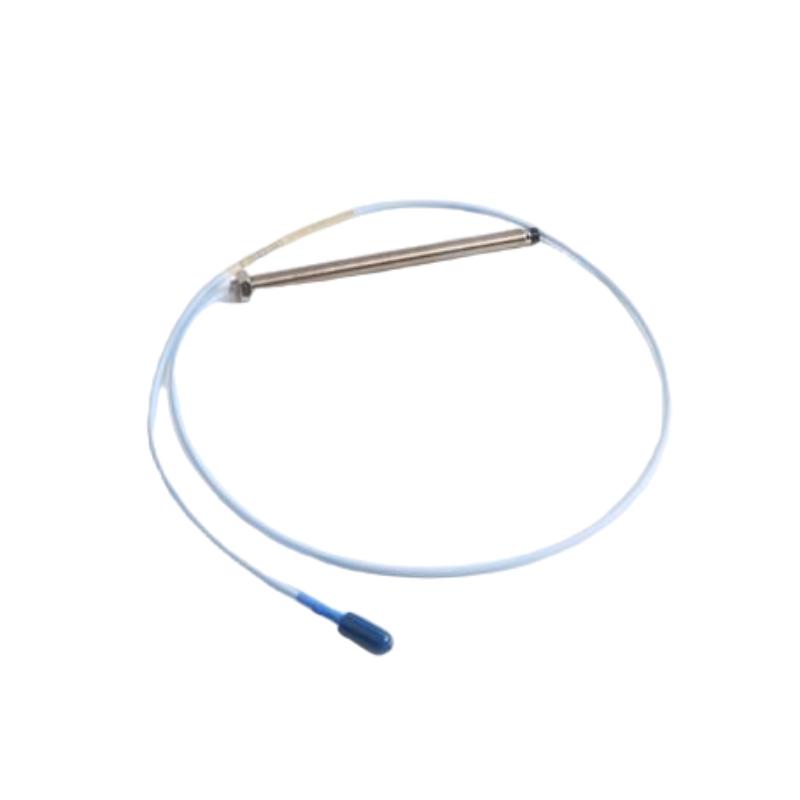

The Bently Nevada 330101-00-49-90-12-00 3300 XL 8 mm Proximity Probe is a precision eddy-current proximity probe designed for the 3300 XL 8 mm Proximity Transducer System. It delivers accurate, non-contact measurement of shaft vibration and shaft position, providing stable long-term performance for rotating machinery condition monitoring.
This configuration incorporates a 4.9 in. (124.5 mm) probe case length, a 9.0 m (29.5 ft) FluidLoc® cable, a Miniature ClickLoc™ coaxial connector, and Option 00 (no agency approvals). The FluidLoc cable design helps resist fluid ingress in demanding industrial environments while maintaining reliable signal transmission throughout the transducer system.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-49-90-12-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Probe Diameter | 8 mm |
| Measurement Principle | Eddy Current, Non-contact |
| Unthreaded Length | 0.0 in. |
| Overall Case Length | 4.9 in. (124.5 mm) |
| Integrated Cable Length | 9.0 m (29.5 ft) |
| Cable Type | FluidLoc® Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Mounting Thread | 3/8-24 UNF |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 Hz to 10 kHz |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Minimum Target Diameter | 15.2 mm (0.6 in.) |
| Agency Approval | None (Option 00) |
| Approximate Dimensions | Ø8 mm × 124.5 mm |
| Approximate Net Weight | 0.56 kg |
| Approximate Shipping Weight | 0.90 kg |
| Country of Origin | USA |
