Product Overview

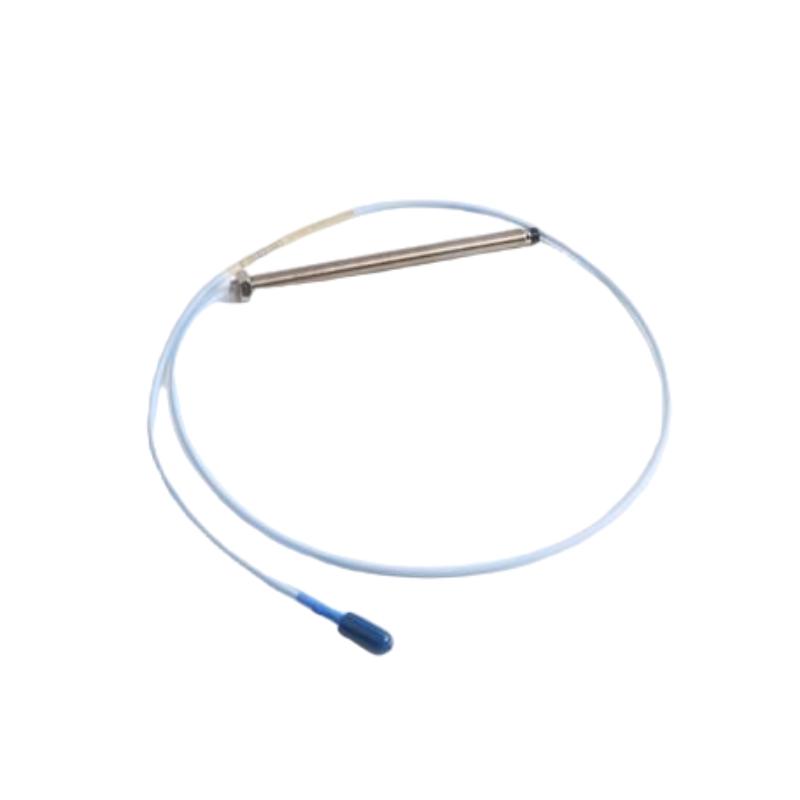

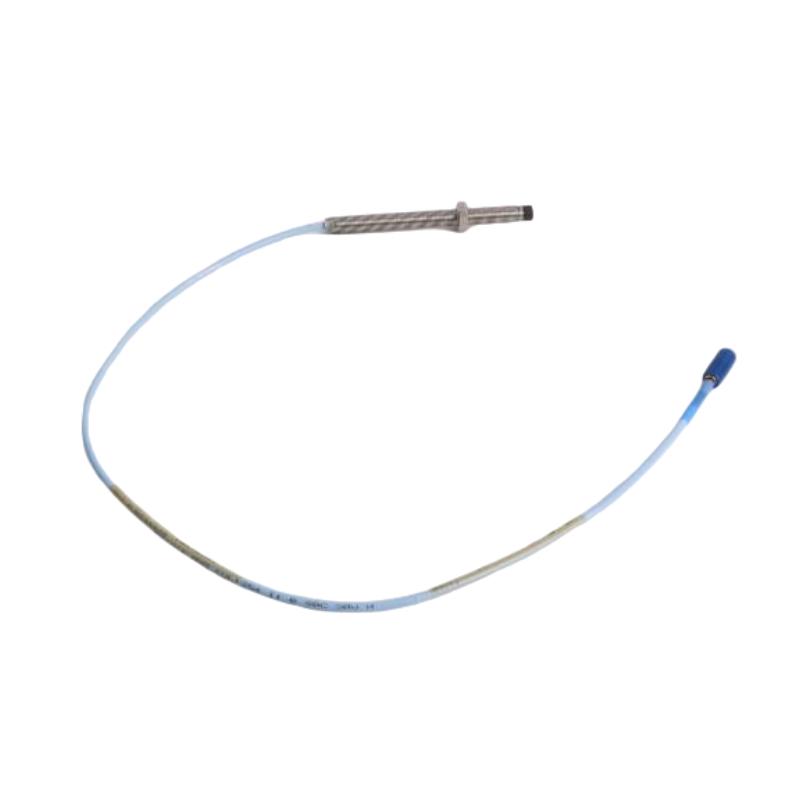

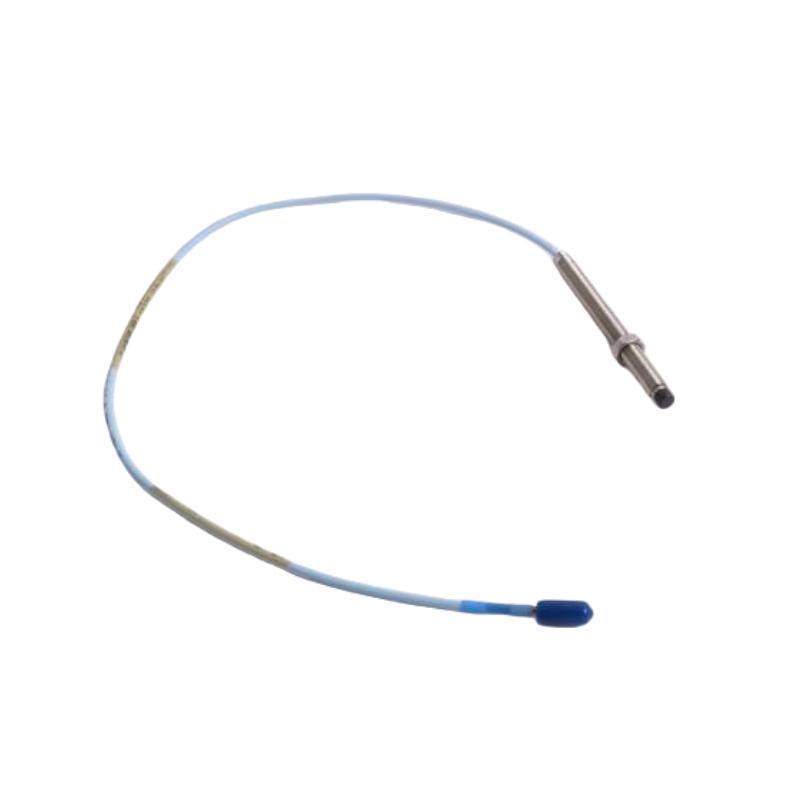

The Bently Nevada 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe is a precision non-contact eddy-current probe designed for the 3300 XL 8 mm Proximity Transducer System. It provides highly accurate shaft vibration and shaft position measurements while delivering exceptional reliability for continuous monitoring of rotating machinery.
This configuration features a 4.7 in. (119.4 mm) overall case length, a 1.0 m (3.3 ft) integrated standard cable, a Miniature ClickLoc™ coaxial connector, and no agency approvals (Option 00). It is intended for use with compatible 3300 XL Extension Cables and 3300 XL Proximitor Sensors, creating a complete transducer system optimized for long-term monitoring performance.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-47-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy Current, Non-contact |
| Unthreaded Length | 0.0 in. |
| Overall Case Length | 4.7 in. (119.4 mm) |
| Integrated Cable Length | 1.0 m (3.3 ft) |
| Cable Type | Standard FEP Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Thread Size | 3/8-24 UNF |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 Hz to 10 kHz |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Minimum Target Diameter | 15.2 mm (0.6 in.) |
| Agency Approval | None (Option 00) |
| Approximate Dimensions | Ø8 mm × 119.4 mm |
| Approximate Net Weight | 0.17 kg |
| Approximate Shipping Weight | 0.42 kg |
| Country of Origin | USA |
