Product Introduction

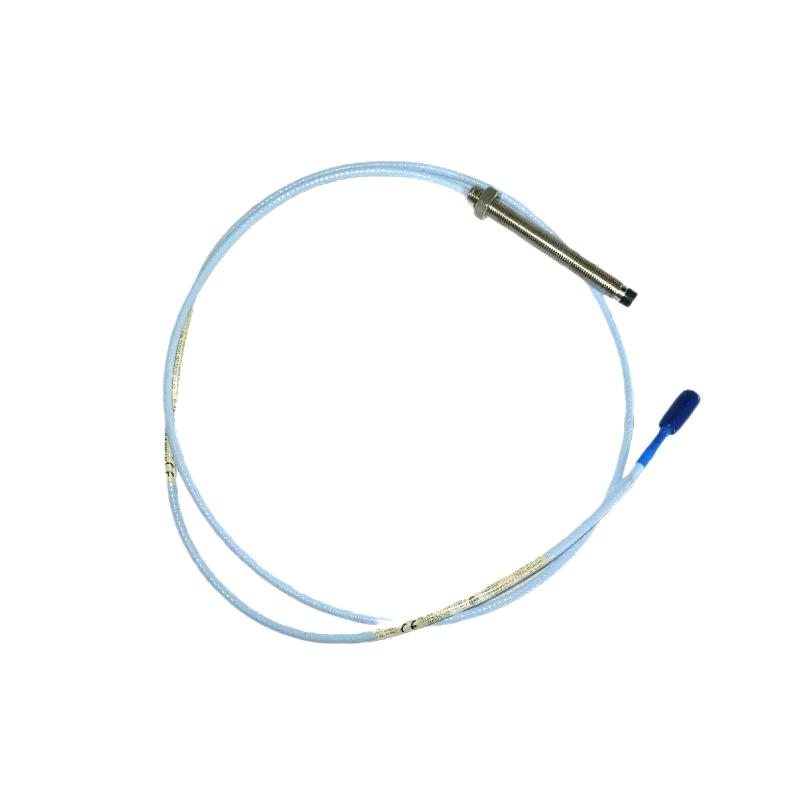

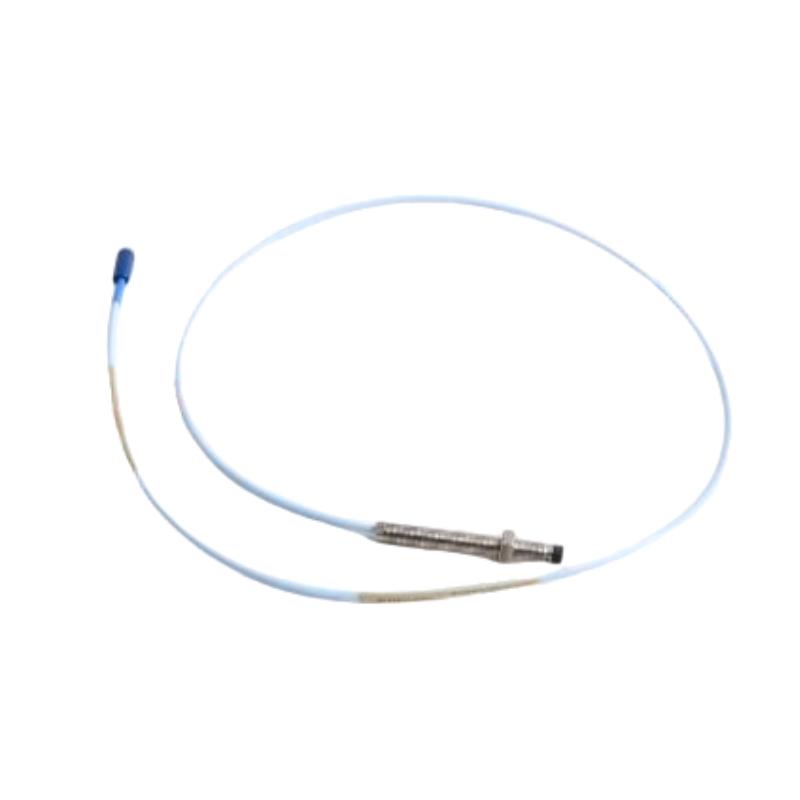

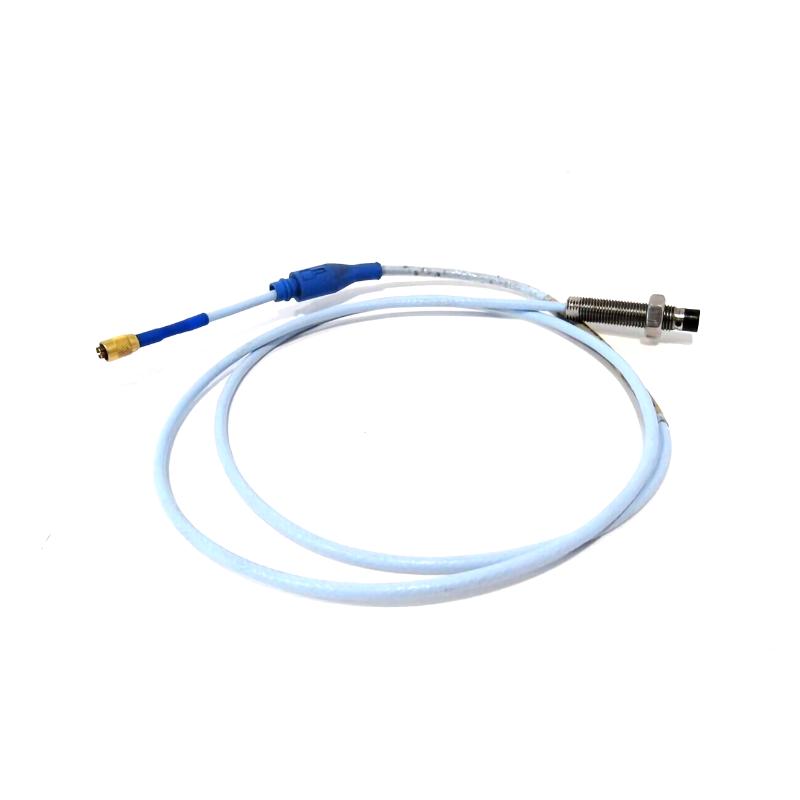

The Bently Nevada 330101-00-40-05-02-05 3300 XL 8 mm Proximity Probe is a precision eddy-current sensor engineered for the 3300 XL 8 mm Proximity Transducer System. Designed for continuous shaft vibration and position measurement, this probe delivers reliable performance, excellent measurement accuracy, and outstanding long-term stability in demanding rotating machinery applications.
This model features a 4.0 in. (101.6 mm) probe case, 0.5 m (1.6 ft) integrated standard cable, Miniature ClickLoc™ connector, and CSA, ATEX, and IECEx hazardous-area certifications. When combined with a compatible 3300 XL Extension Cable and 3300 XL Proximitor Sensor, it forms a complete transducer system that meets the performance requirements of API 670.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-40-05-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Probe Diameter | 8 mm |
| Sensing Technology | Eddy Current, Non-contact |
| Unthreaded Length | 0.0 in. |
| Overall Case Length | 4.0 in. (101.6 mm) |
| Integrated Cable Length | 0.5 m (1.6 ft) |
| Cable Type | Standard FEP Cable |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Thread Size | 3/8-24 UNF |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 Hz to 10 kHz |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Minimum Target Diameter | 15.2 mm (0.6 in.) |
| Certifications | CSA, ATEX, IECEx |
| Approximate Dimensions | Ø8 mm × 101.6 mm |
| Approximate Net Weight | 0.15 kg |
| Approximate Shipping Weight | 0.40 kg |
| Country of Origin | USA |
