Product Overview

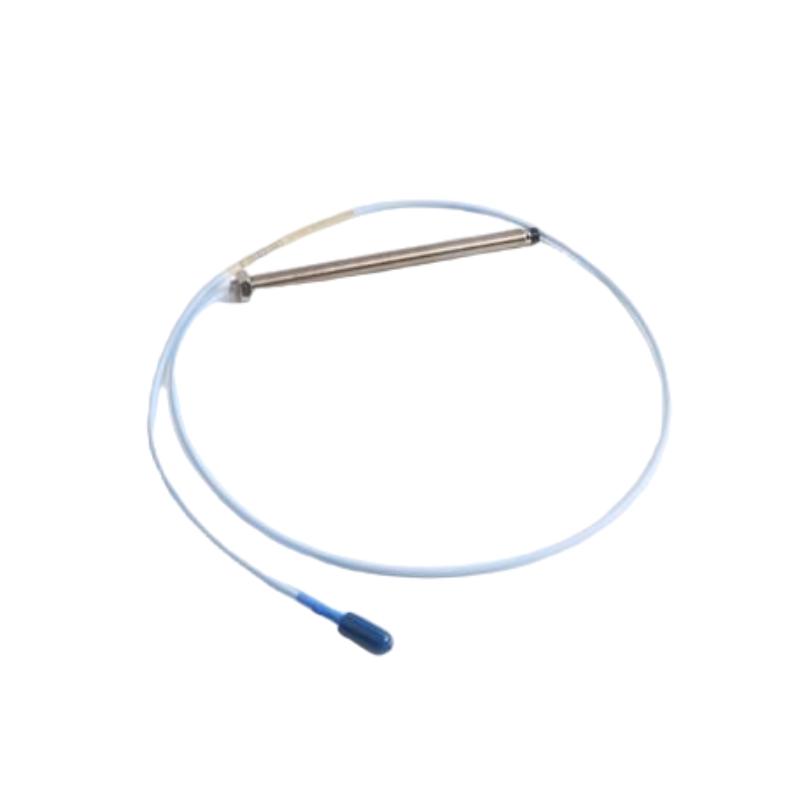

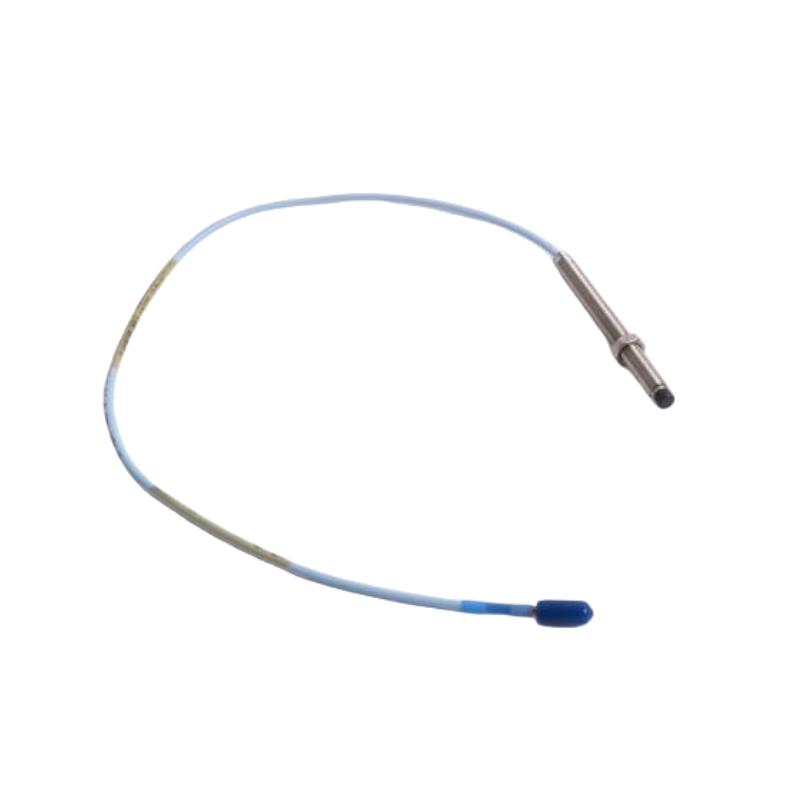

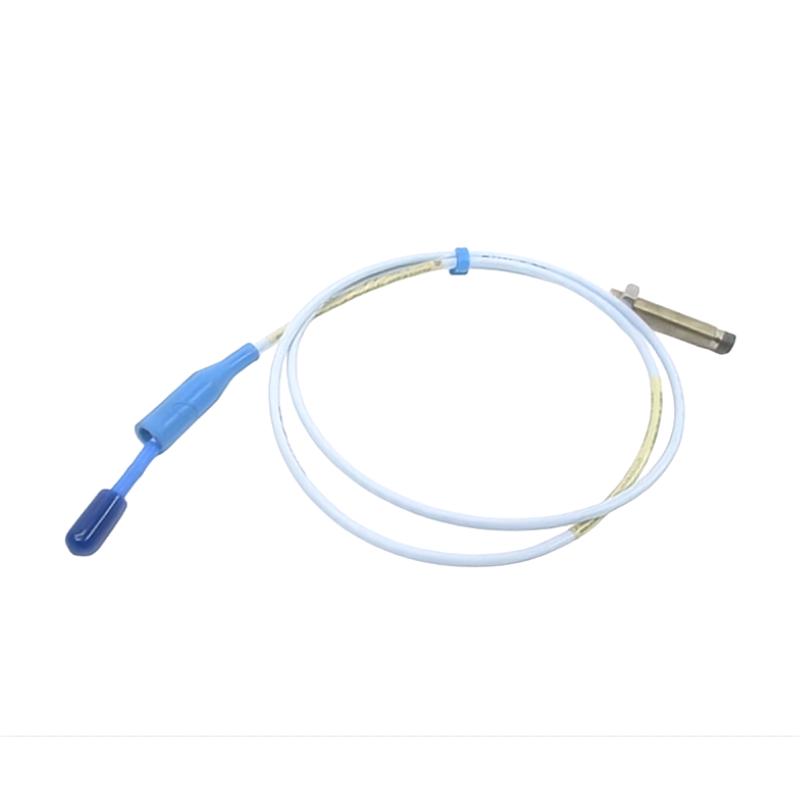

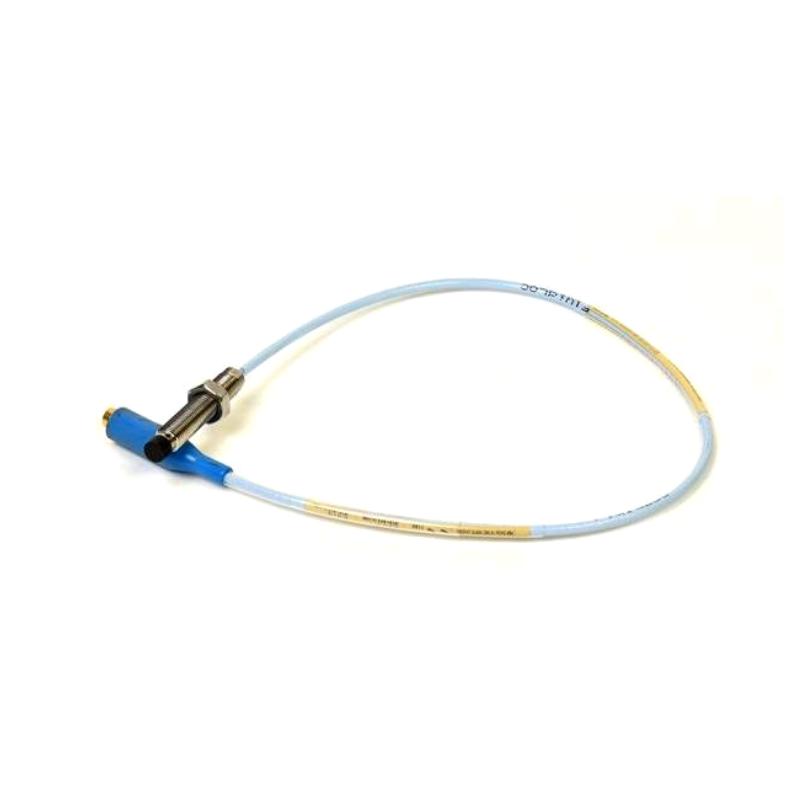

The Bently Nevada 330101-00-40-05-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy-current proximity probe developed for the 3300 XL 8 mm Proximity Transducer System. It is designed to deliver accurate non-contact measurement of shaft vibration and shaft displacement while maintaining excellent long-term stability in continuous monitoring applications.
This configuration features a 4.0 in. (101.6 mm) probe case length, a 0.5 m (1.6 ft) integrated cable, a Miniature ClickLoc™ coaxial connector, and CSA, ATEX, and IECEx approvals. When paired with compatible 3300 XL Extension Cables and 3300 XL Proximitor Sensors, it forms a complete transducer system suitable for demanding rotating machinery installations.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-40-05-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Probe Diameter | 8 mm |
| Measurement Principle | Eddy Current, Non-contact |
| Unthreaded Length | 0.0 in. |
| Overall Case Length | 4.0 in. (101.6 mm) |
| Integrated Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Cable Type | Standard FEP Cable |
| Thread Size | 3/8-24 UNF |
| System Linear Range | 2.0 mm (80 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 Hz to 10 kHz |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Minimum Target Diameter | 15.2 mm (0.6 in.) |
| Agency Approvals | CSA, ATEX, IECEx |
| Approximate Dimensions | Ø8 mm Probe Tip × 101.6 mm Case Length |
| Approximate Product Weight | 0.15 kg |
| Country of Origin | USA |
