Bently Nevada 330101-00-39-10-02-05 3300 XL 8 mm Proximity Probe

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

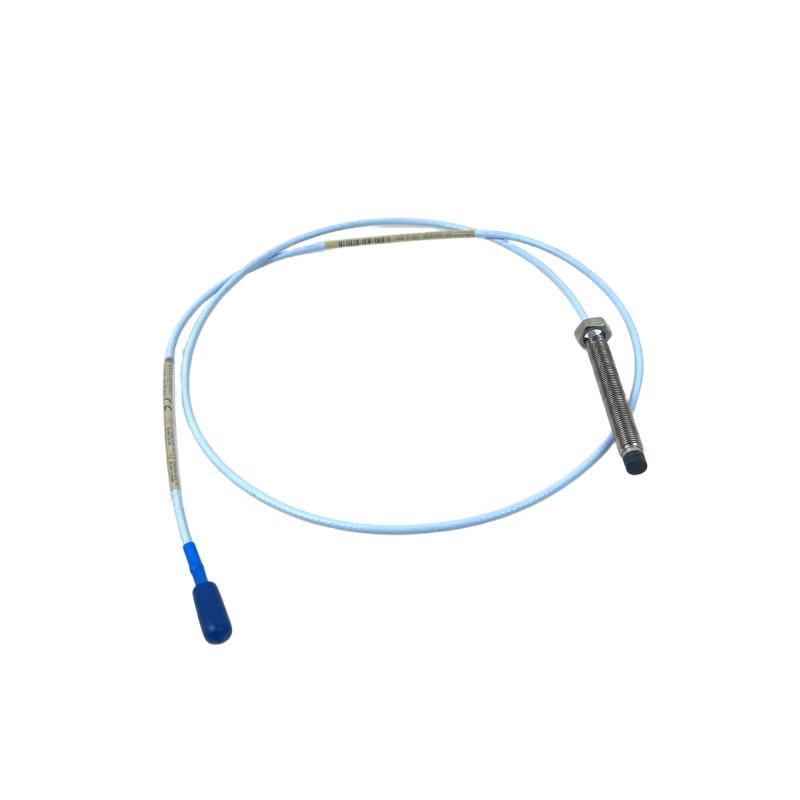

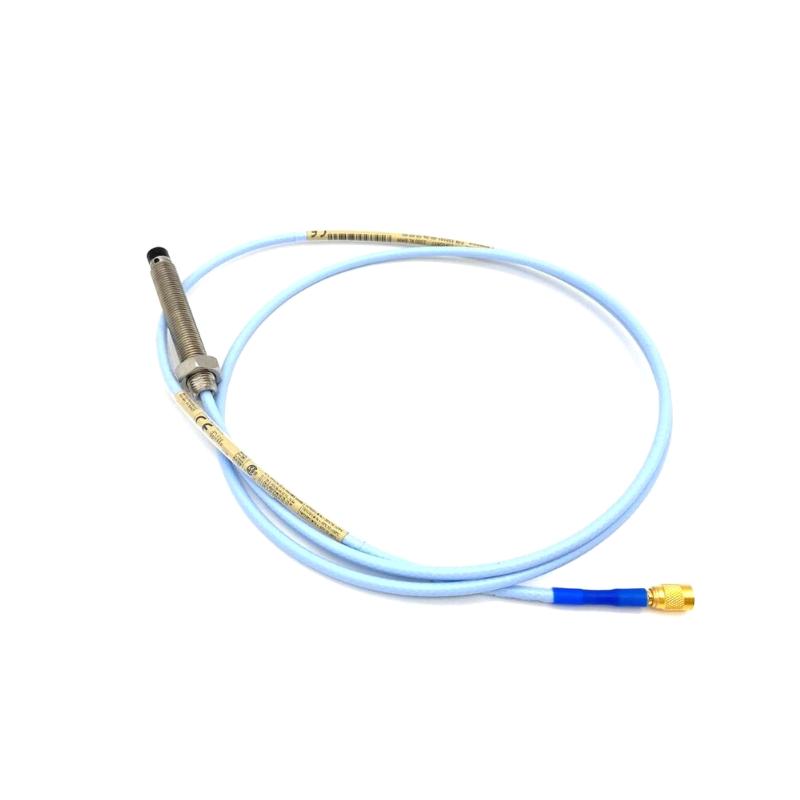

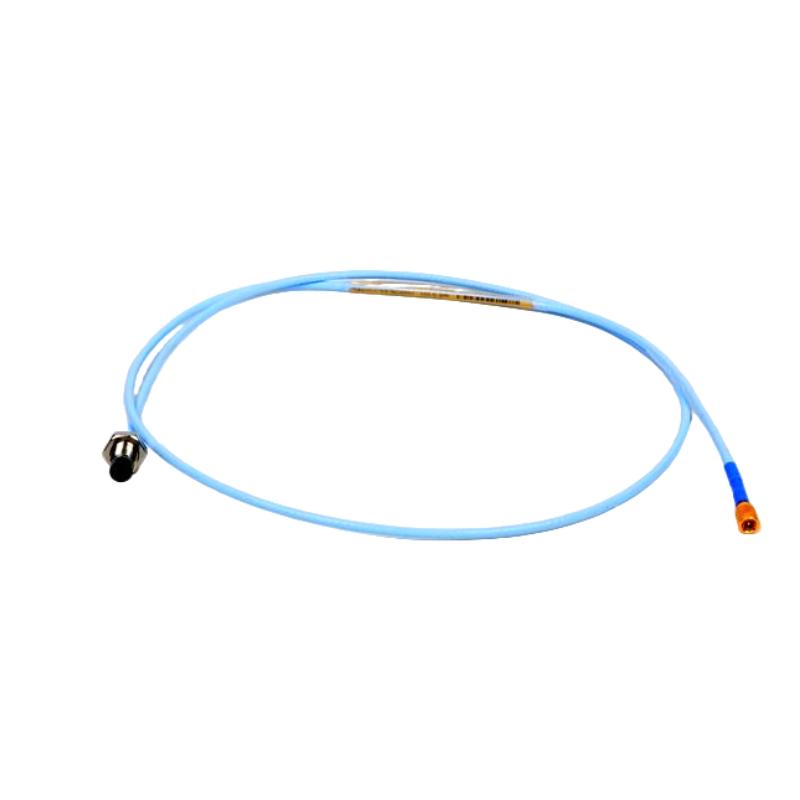

Bently Nevada 330101-00-39-10-02-05 3300 XL 8 mm Proximity Probe

Name: Bently Nevada 330101-00-39-10-02-05 3300 XL 8 mm Proximity Probe
Brand: Bently Nevada PLC
SKU: 9558
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330101-00-39-10-02-05
Product Origin:USA
Product Dimensions:1.0 meter
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The Bently Nevada 330101-00-39-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact proximity probe designed for the 3300 XL 8 mm Proximity Transducer System. It utilizes eddy current sensing technology to provide accurate shaft displacement and vibration measurements for critical rotating machinery.

This configuration features a 0.0 in. unthreaded length, a 3.9 in. (99.1 mm) overall case length, a 1.0 m (3.3 ft) integrated cable, a Miniature ClickLoc™ coaxial connector, and CSA, ATEX, and IECEx approvals. It is engineered to operate with compatible 3300 XL extension cables and 3300 XL Proximitor sensors, delivering dependable long-term measurement performance.

Technical Specifications

Specification	Details
Manufacturer	Bently Nevada
Model Number	330101-00-39-10-02-05
Product Type	3300 XL 8 mm Proximity Probe
Series	3300 XL 8 mm Proximity Transducer System
Probe Diameter	8 mm
Measurement Principle	Eddy Current, Non-contact
Unthreaded Length	0.0 in.
Overall Case Length	3.9 in. (99.1 mm)
Integrated Cable Length	1.0 m (3.3 ft)
Connector Type	Miniature ClickLoc™ Coaxial Connector
Cable Type	Standard Cable
Thread Size	3/8-24 UNF
System Linear Range	2.0 mm (80 mils)
Frequency Response	0 Hz to 10 kHz
Operating Temperature	-52°C to +177°C (-62°F to +351°F)
Minimum Cable Bend Radius	25.4 mm (1.0 in.)
Agency Approvals	CSA, ATEX, IECEx
Approximate Dimensions	Ø8 mm Probe Tip × 99.1 mm Case Length
Approximate Product Weight	0.16 kg
Approximate Shipping Weight	0.45 kg
Country of Origin	USA

Typical Applications

The 330101-00-39-10-02-05 is designed for continuous shaft vibration and shaft position measurement on rotating equipment requiring high measurement stability and long service life.

Typical applications include:

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Generators
Gearboxes
Fans
Blowers
Process machinery

Its 3.9-inch probe body and 1.0-meter integrated cable provide installation flexibility for a wide range of machinery layouts.

Product Advantages

Genuine Bently Nevada 3300 XL Series probe.
Precision 8 mm eddy current sensing technology.
Compact 3.9-inch probe body.
Factory-installed 1.0 m integrated cable.
Miniature ClickLoc™ connector for secure connections.
Excellent linearity and measurement repeatability.
CSA, ATEX, and IECEx certified configuration.
Compatible with 3300 XL extension cables and Proximitor sensors.
Corrosion-resistant construction for long service life.
Designed for continuous machinery condition monitoring.

Technical FAQs

1. What type of probe is the 330101-00-39-10-02-05?
It is a 3300 XL 8 mm non-contact proximity probe designed for shaft vibration and displacement measurement.

2. What is the probe diameter?
The sensing tip diameter is 8 mm.

3. What is the overall case length?
The probe has a 3.9 in. (99.1 mm) case length.

4. What cable length is supplied?
This configuration includes a 1.0 m (3.3 ft) integrated cable.

5. Which connector does this probe use?
It is equipped with a Miniature ClickLoc™ coaxial connector.

6. What certifications are included?
Option 05 provides CSA, ATEX, and IECEx approvals.

7. What is the measurement principle?
The probe uses eddy current non-contact sensing technology to measure shaft movement accurately.

8. What is the operating temperature range?
The probe operates from -52°C to +177°C (-62°F to +351°F).

9. Which components are compatible with this probe?
It is intended for use with 3300 XL extension cables and 3300 XL Proximitor sensors as part of a complete transducer system.

10. Is this probe suitable for continuous machinery monitoring?
Yes. It is designed for permanent installation and continuous monitoring of rotating equipment.
