Product Overview

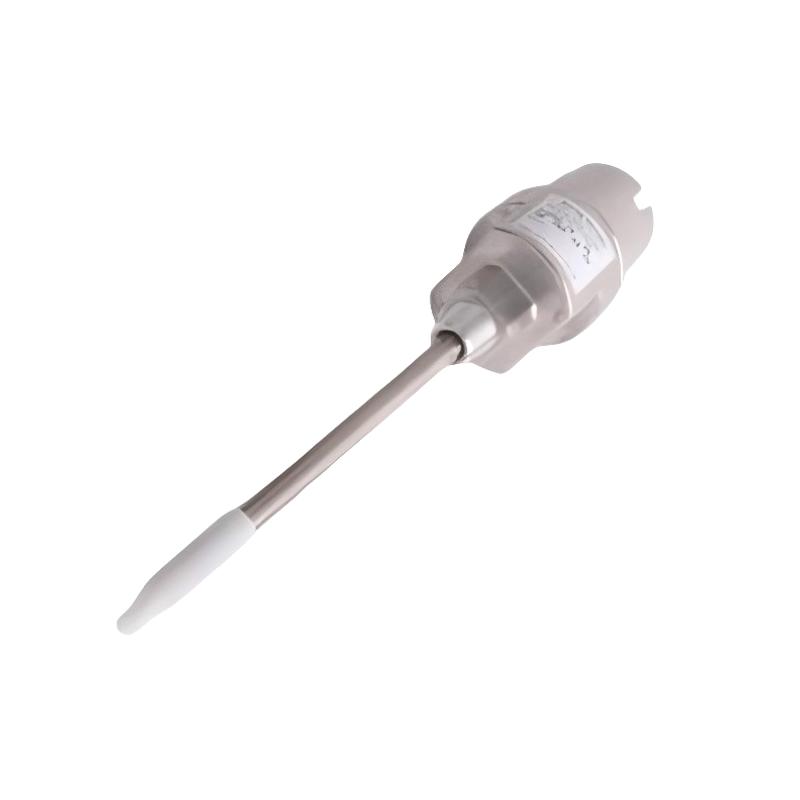

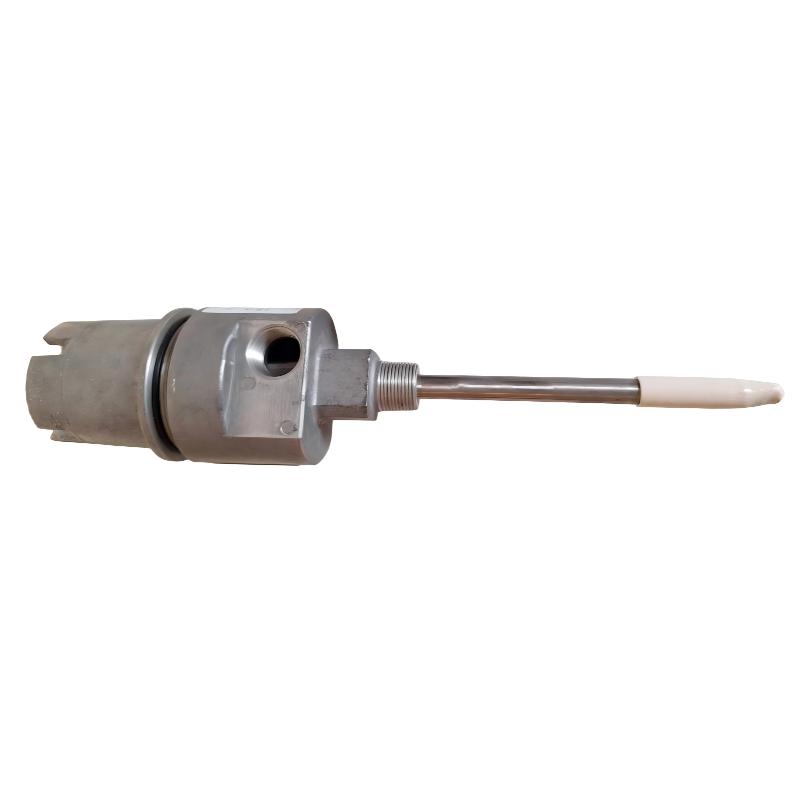

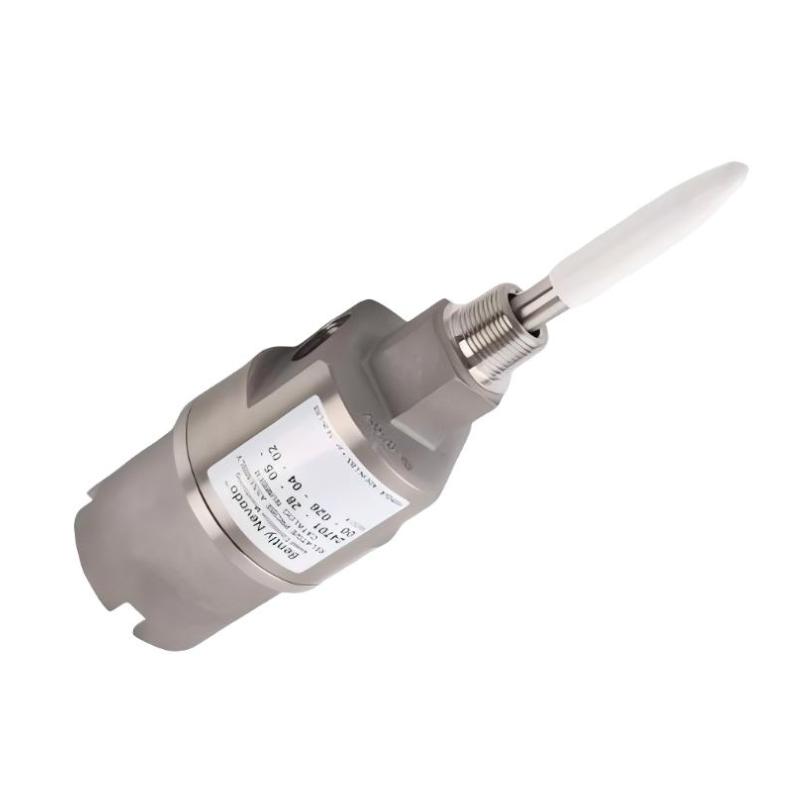

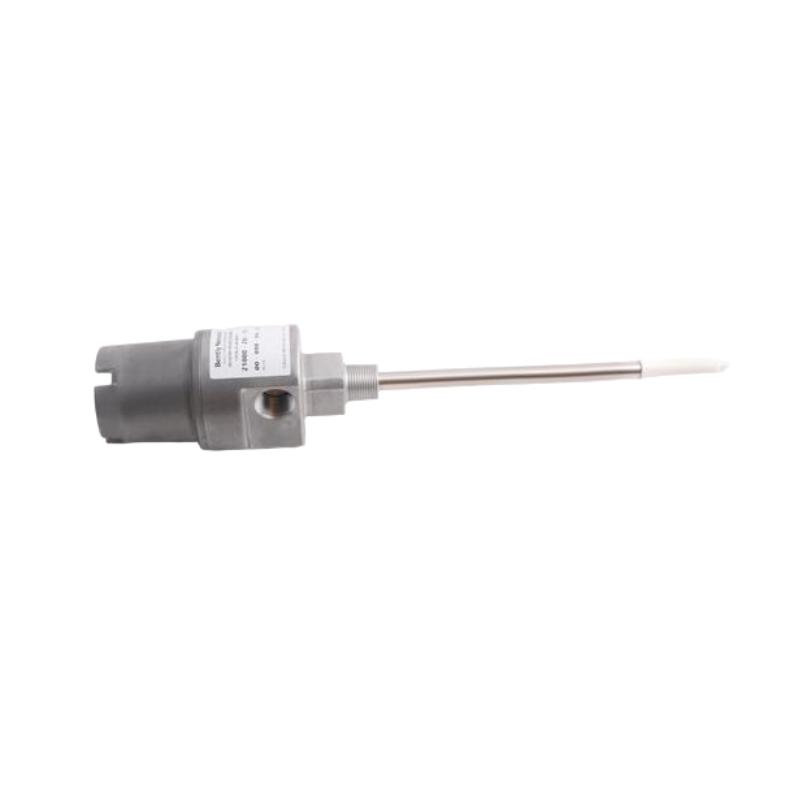

The Bently Nevada 24701-16-05-00-033-04-02 Proximity Probe Housing Assembly is a premium stainless steel housing designed for externally mounting a 3300 XL 8 mm reverse-mount proximity probe on rotating machinery. It provides durable mechanical protection, dependable environmental sealing, and convenient access for probe installation and maintenance.
This configuration includes a 3300 XL 8 mm reverse-mount probe (Option 16), a 0.5 m (20 in.) probe cable (Option 05), no standoff adapter (Option 00), a 3.3 in. (83.8 mm) probe penetration (Option 033), one 3/4-14 NPT plug (Option 04), and a 3/4-14 NPT mounting thread (Option 02). The 24701 Series features a 303 stainless steel housing body with a 304 stainless steel probe sleeve, making it suitable for demanding environments where corrosion resistance is important.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 24701-16-05-00-033-04-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 24701 |
| Included Probe | 3300 XL 8 mm Reverse-Mount Probe |
| Probe Cable Length | 0.5 m (20 in.) |
| Standoff Adapter | None |
| Probe Penetration | 3.3 in. (83.8 mm) |
| Housing Material | 303 Stainless Steel |
| Probe Sleeve Material | 304 Stainless Steel |
| Dome Cover | Stainless Steel Threaded Cover |
| Sealing Method | O-Ring Sealed |
| Fittings | One 3/4-14 NPT Plug |
| Mounting Thread | 3/4-14 NPT |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL 8 mm Proximitor Sensor |
| Operating Temperature* | -51°C to +177°C (-60°F to +351°F) |
| Housing Diameter | Approx. 83.3 mm (3.28 in.) |
| Approximate Product Weight | 1.8 kg |
| Approximate Shipping Weight | 2.0 kg |
| Country of Origin | USA |
