Product Overview

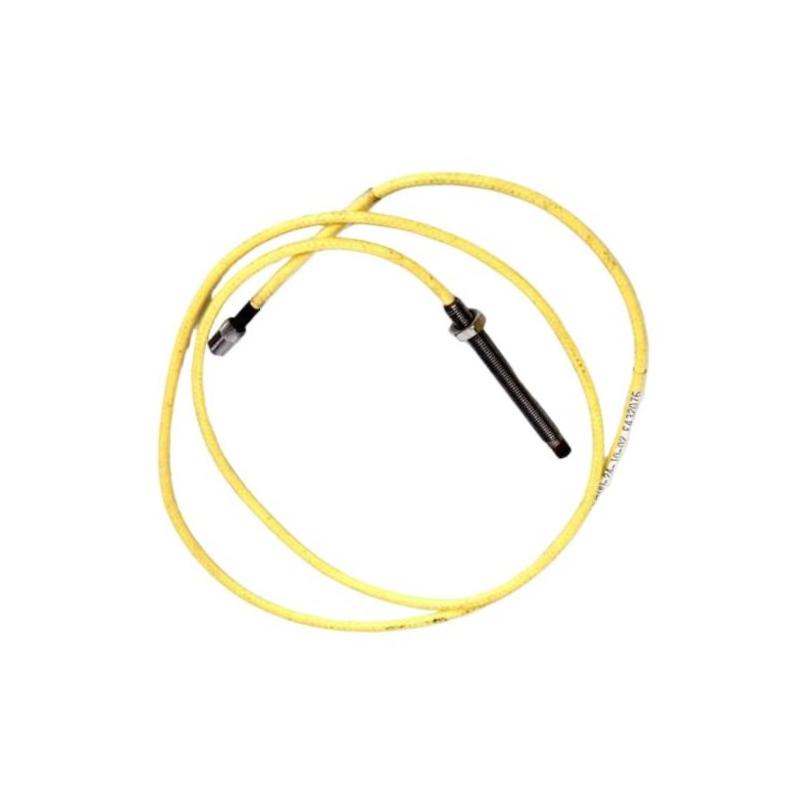

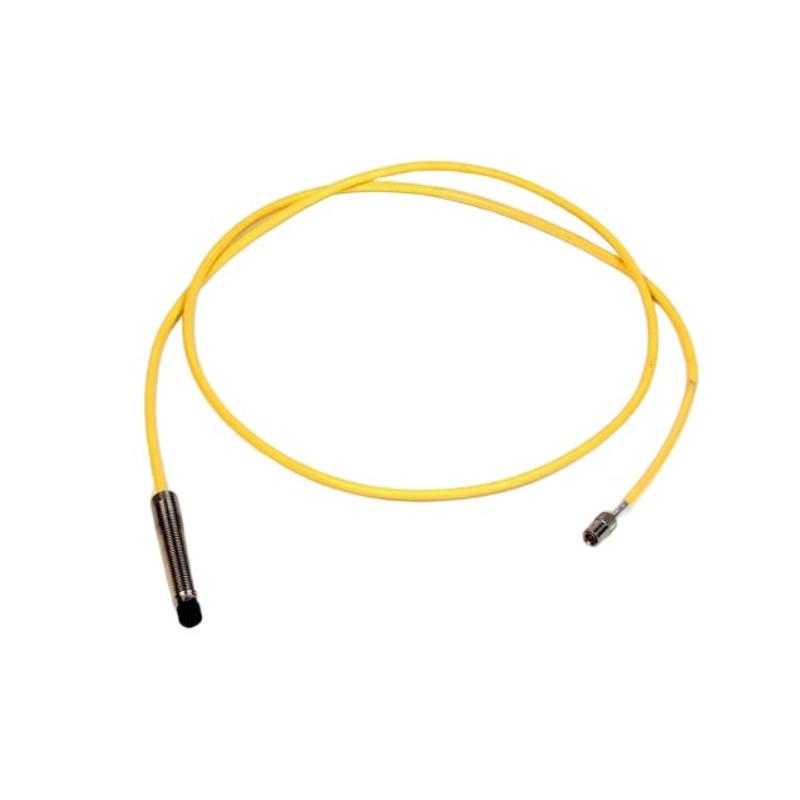

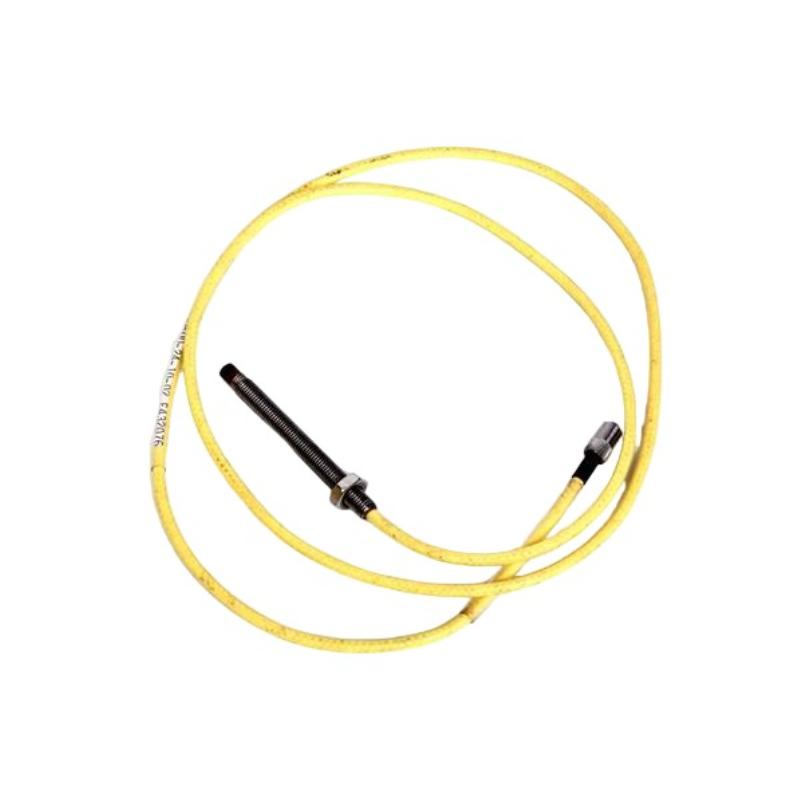

The Bently Nevada 21500-04-02-10-02 7200 5 mm Probe is a precision non-contact proximity probe designed for the 7200 Series Transducer System. It provides accurate shaft displacement and vibration measurement for rotating equipment while delivering stable long-term performance in demanding operating environments.
This configuration features a 5 mm probe, a 0.4 in. (10.2 mm) unthreaded length, a 2.0 in. (50.8 mm) case length, a 1.0 m (3.3 ft) integrated cable, and a miniature male coaxial connector. When paired with compatible 7200 Series extension cables and Proximitor sensors, it forms a complete transducer system for continuous machinery condition monitoring.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 21500-04-02-10-02 |
| Product Type | 7200 5 mm Probe |
| Series | 7200 Transducer System |
| Probe Diameter | 5 mm |
| Measurement Principle | Eddy Current, Non-contact |
| Unthreaded Length | 0.4 in. (10.2 mm) |
| Case Length | 2.0 in. (50.8 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Male Coaxial Connector |
| Probe Thread | 1/4-28 UNF |
| Recommended Installation Torque | 5.1 N·m (45 in·lb) |
| Maximum Installation Torque | 7.3 N·m (65 in·lb) |
| Operating Temperature | -35°C to +177°C (-31°F to +351°F) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in.) |
| Approximate Probe Weight | 0.12 kg |
| Approximate Shipping Weight | 0.70 kg |
| Country of Origin | USA |
