Introduction

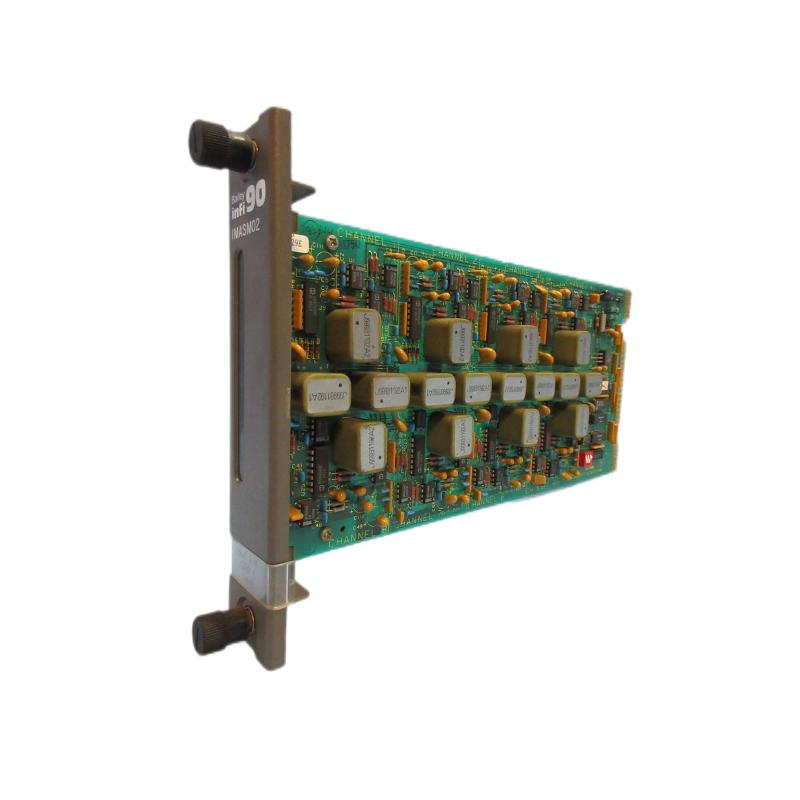

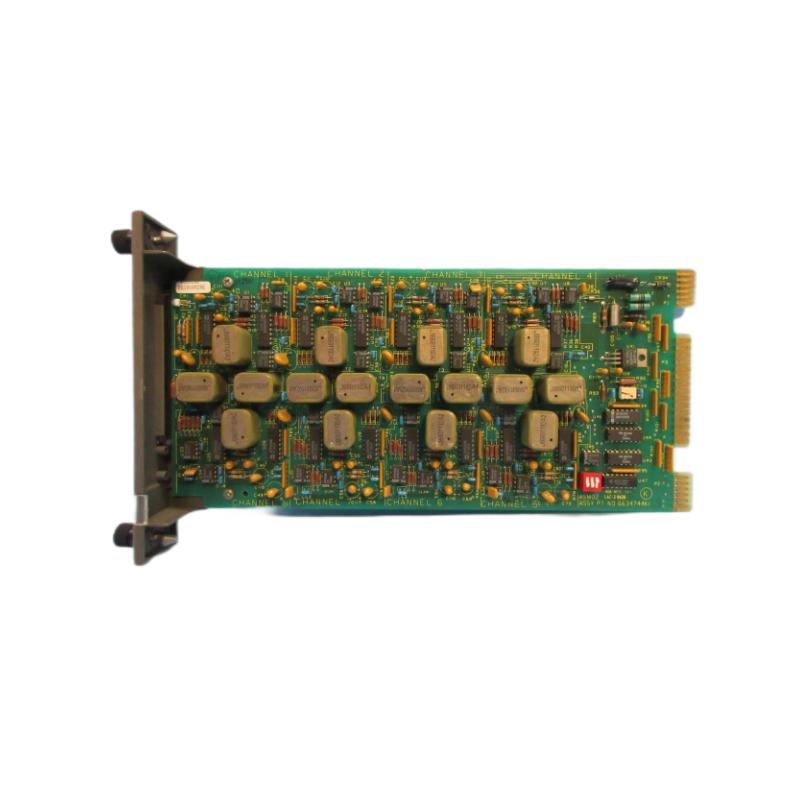

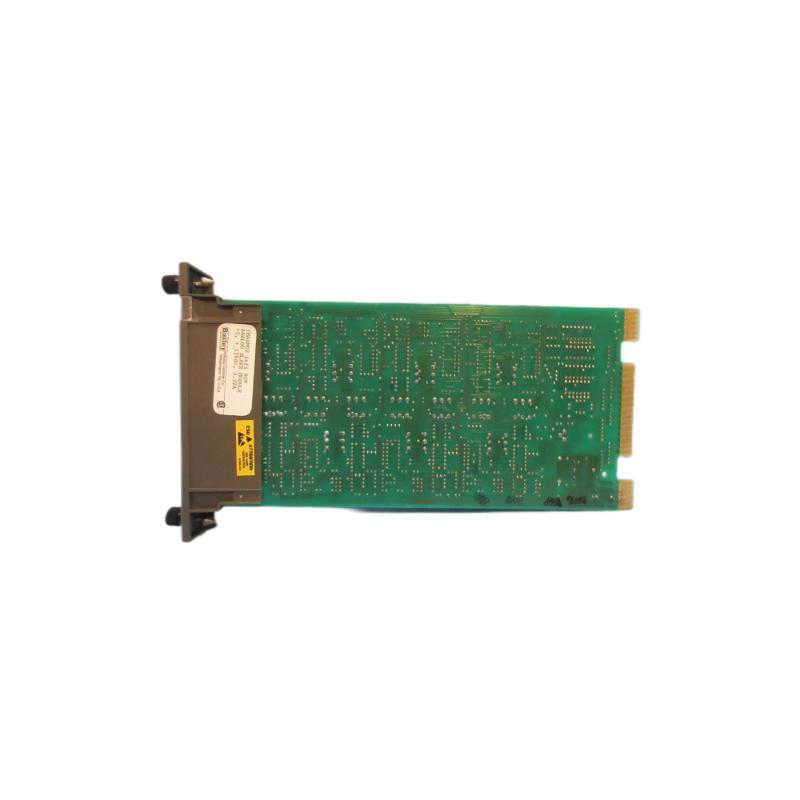

The IMASM02S Analog Input Slave Module from ABB’s Bailey series is a rugged industrial interface device engineered to extend analog signal acquisition within distributed control systems (DCS). Designed for high‑availability process automation environments, this module reliably captures and converts multiple analog sensor inputs into conditioned digital values for control networks. Its robust architecture ensures measurement integrity, making it ideal for continuous process monitoring in oil & gas, power generation, petrochemical, and manufacturing facilities.
Built with long‑term stability and field compatibility in mind, the IMASM02S provides accurate data acquisition from various field instruments, enabling operators to make timely decisions based on real‑world analog signals. Its modular form factor supports easy integration into existing Bailey infrastructure or expansion of analog I/O capacity with minimal disruption.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IMASM02S |
| Module Type | Analog Input Slave Module |
| Input Channels | Multiple analog input channels (typically ±20mA / ±10V range) |
| Input Type | Current and voltage compatible |
| Resolution | High resolution ADC (typically 12–16 bit class) |
| Isolation | Channel‑to‑system galvanic isolation |
| Communication Interface | Serial / bus interface compatible with Bailey DCS backplane |
| Supported Signals | mA and V based industrial sensors |
| Operating Temperature | Typical industrial range (‑20°C to +70°C) |
| Power Consumption | Low‑power draw design |
