Bently Nevada 21504-000-008-05-02 7200 8 mm Standard Mount Probe

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Bently Nevada 21504-000-008-05-02 7200 8 mm Standard Mount Probe

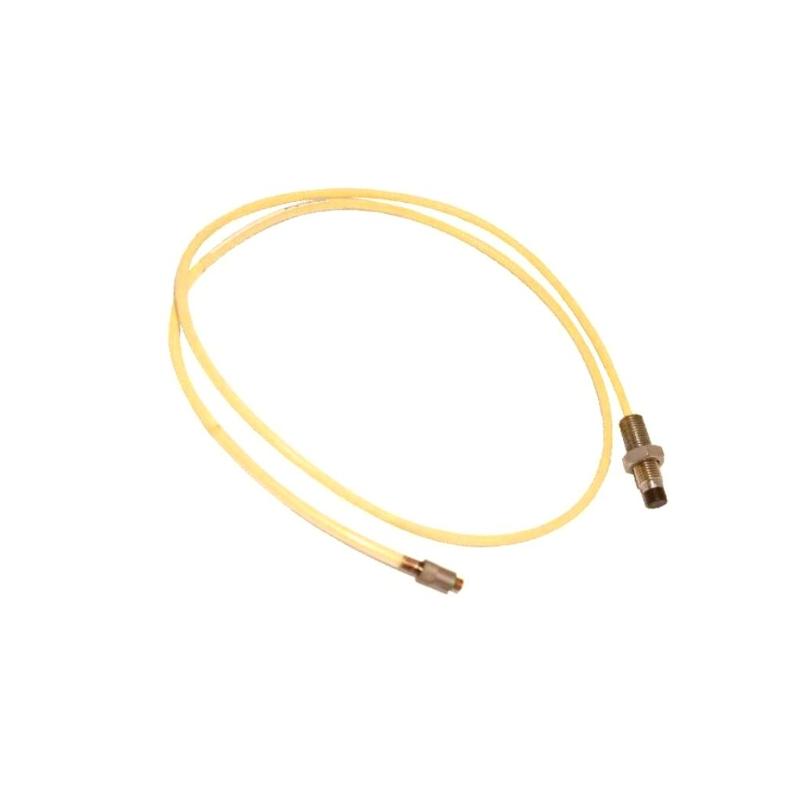

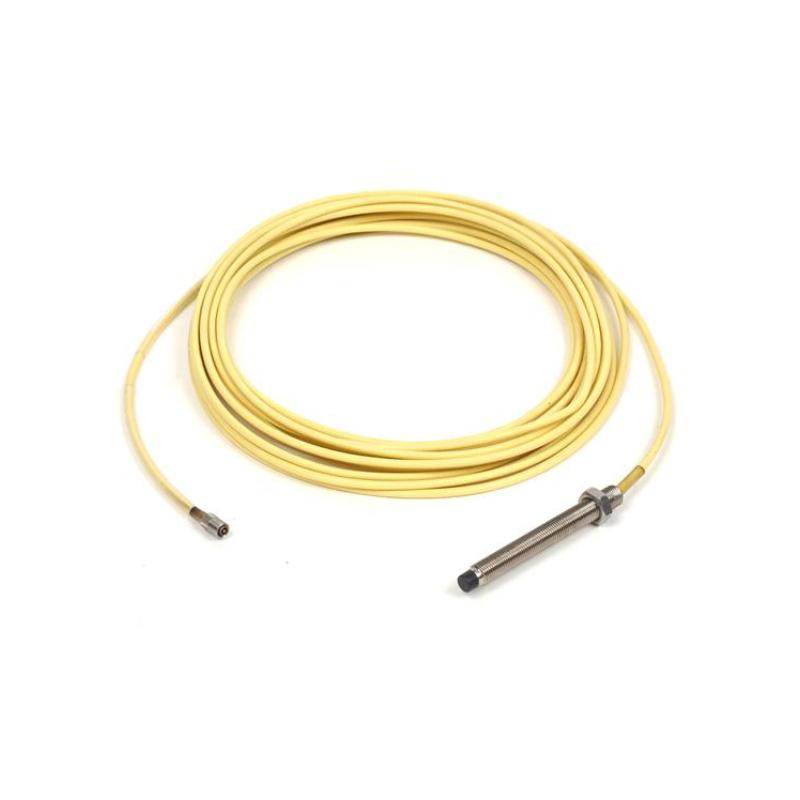

Name: Bently Nevada 21504-000-008-05-02 7200 8 mm Standard Mount Probe
Brand: Bently Nevada PLC
SKU: 9554
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:21504-000-008-05-02
Product Origin:USA
Product Dimensions:Ø8 mm Probe Tip × 20.3 mm Case Length
Product Weight:0.12kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The Bently Nevada 21504-000-008-05-02 7200 8 mm Standard Mount Probe is a precision non-contact proximity probe designed for use with the 7200 Series Transducer System. Engineered for reliable shaft displacement and vibration measurement, this probe delivers stable signal performance and excellent durability in demanding rotating equipment applications.

This model features an 8 mm probe tip, a standard-mount threaded body, and a 0.5 m (20 in.) integrated cable. When combined with compatible 7200 Series extension cables and Proximitor sensors, it forms a complete transducer system capable of providing accurate and repeatable measurements over extended service periods.

Technical Specifications

Specification	Details
Manufacturer	Bently Nevada
Model Number	21504-000-008-05-02
Product Type	7200 8 mm Standard Mount Probe
Series	7200 Transducer System
Probe Diameter	8 mm
Mounting Style	Standard Mount
Measurement Principle	Eddy Current, Non-contact
Thread Size	3/8-24 UNF
Unthreaded Length	0 in.
Case Length	0.8 in. (20.3 mm)
Integrated Cable Length	0.5 m (20 in.)

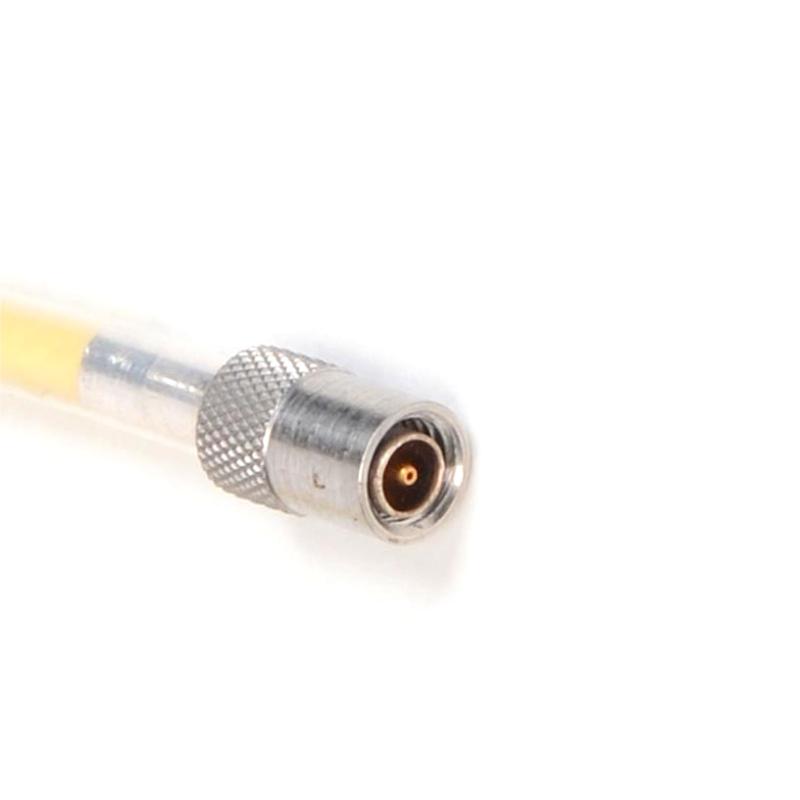

Connector Type	Miniature Male Coaxial Connector
Recommended Installation Torque	5.1 N·m (45 in·lb)
Maximum Installation Torque	7.3 N·m (65 in·lb)
Operating Temperature	-35°C to +177°C (-31°F to +351°F)
Minimum Cable Bend Radius	25.4 mm (1.0 in.)
Approximate Dimensions	Ø8 mm Probe Tip × 20.3 mm Case Length
Approximate Weight	0.12 kg
Country of Origin	USA

Typical Applications

The 21504-000-008-05-02 is designed for continuous shaft vibration and displacement measurement on rotating equipment requiring dependable non-contact sensing.

Typical applications include:

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Gearboxes
Fans
Blowers
Generators
Process machinery

Its compact standard-mount configuration allows straightforward installation in equipment where space is limited while maintaining excellent measurement accuracy.

Product Advantages

Genuine Bently Nevada 7200 Series probe.
Precision 8 mm sensing technology.
Standard-mount threaded construction.
Factory-installed 0.5 m integrated cable.
Stable eddy-current measurement principle.
Excellent long-term signal stability.
Corrosion-resistant construction.
Compatible with 7200 Series transducer components.
Simple installation and maintenance.
Designed for continuous machinery monitoring.

Technical FAQs

1. What type of probe is the 21504-000-008-05-02?
It is a 7200 Series 8 mm Standard Mount Proximity Probe designed for non-contact shaft measurement.

2. What is the probe diameter?
The probe features an 8 mm sensing tip.

3. What cable length is supplied?
The probe includes a 0.5 m (20 in.) integrated cable.

4. What mounting style does this model use?
This model uses a standard threaded mounting configuration.

5. What is the measurement principle?
The probe operates using eddy-current non-contact sensing technology.

6. What operating temperature range is supported?
The probe operates from -35°C to +177°C (-31°F to +351°F).

7. What thread size is used?
The mounting thread is 3/8-24 UNF.

8. What is the approximate product weight?
The probe weighs approximately 0.12 kg.

9. Which products are compatible with this probe?
It is designed for use with compatible 7200 Series extension cables and Proximitor sensors.

10. Is this probe intended for continuous monitoring?
Yes. It is designed for permanent installation and long-term monitoring of rotating machinery.
