Product Overview

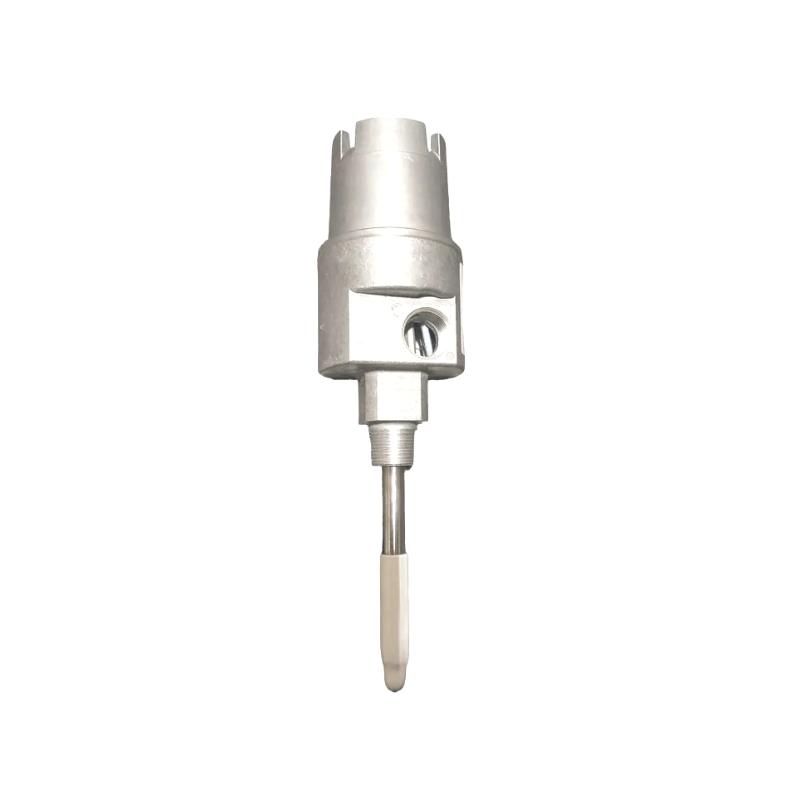

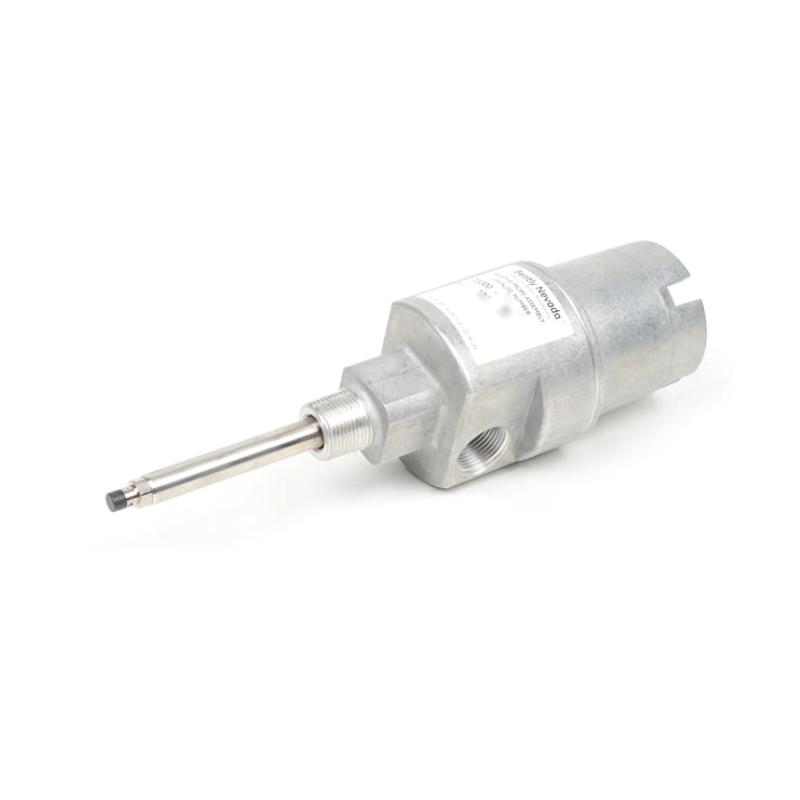

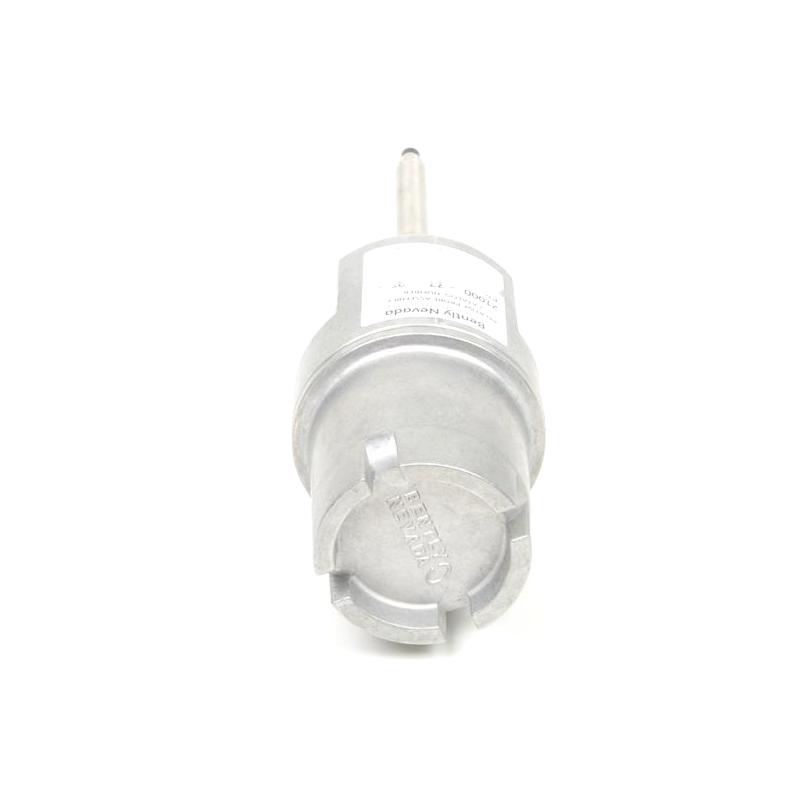

The Bently Nevada 21000-16-10-00-100-04-02 Proximity Probe Housing Assembly is a factory-configured external mounting assembly designed for use with the 3300 XL 8 mm reverse-mount proximity probe. It features a rugged aluminum housing, a precision 304 stainless steel probe sleeve, and an O-ring sealed threaded cover to provide reliable environmental protection and convenient access for probe inspection and replacement.
This configuration includes a 3300 XL 8 mm reverse-mount proximity probe (Option 16), a 1.0 m (39 in.) probe cable (Option 10), no standoff adapter (Option 00), a 10.0 in. (254 mm) probe penetration (Option 100), one 3/4-14 NPT plug (Option 04), and a 3/4-14 NPT mounting thread (Option 02). It is designed for permanent installation on rotating equipment requiring dependable shaft vibration and position measurement.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 21000-16-10-00-100-04-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Series | 21000 |
| Included Probe | 3300 XL 8 mm Reverse-Mount Proximity Probe |
| Probe Cable Length | 1.0 m (39 in.) |
| Standoff Adapter | None |
| Probe Penetration | 10.0 in. (254 mm) |
| Fittings | One 3/4-14 NPT Plug |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Aluminum |
| Probe Sleeve Material | 304 Stainless Steel |
| Housing Cover | Threaded Aluminum Dome |
| Sealing Method | O-Ring Sealed |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL 8 mm Proximitor Sensor |
| Operating Temperature* | -51°C to +177°C (-60°F to +351°F) |
| Housing Diameter | 83.3 mm (3.28 in.) |
| Probe Penetration Length | 254 mm (10.0 in.) |
| Approximate Product Weight | 1.1 kg |
| Approximate Shipping Weight | 2.0 kg |
| Country of Origin | USA |
