Introduction

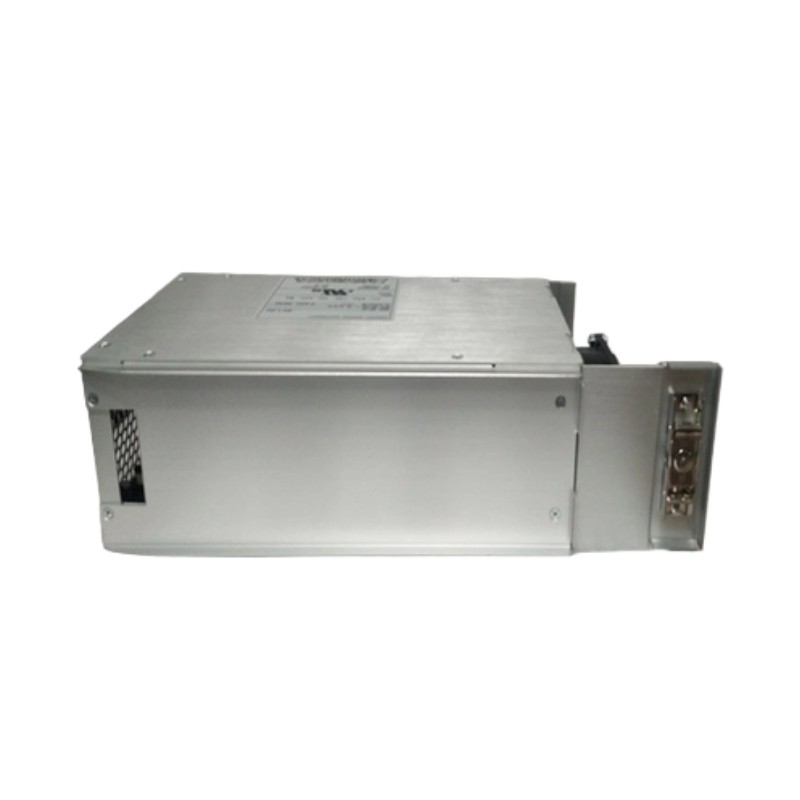

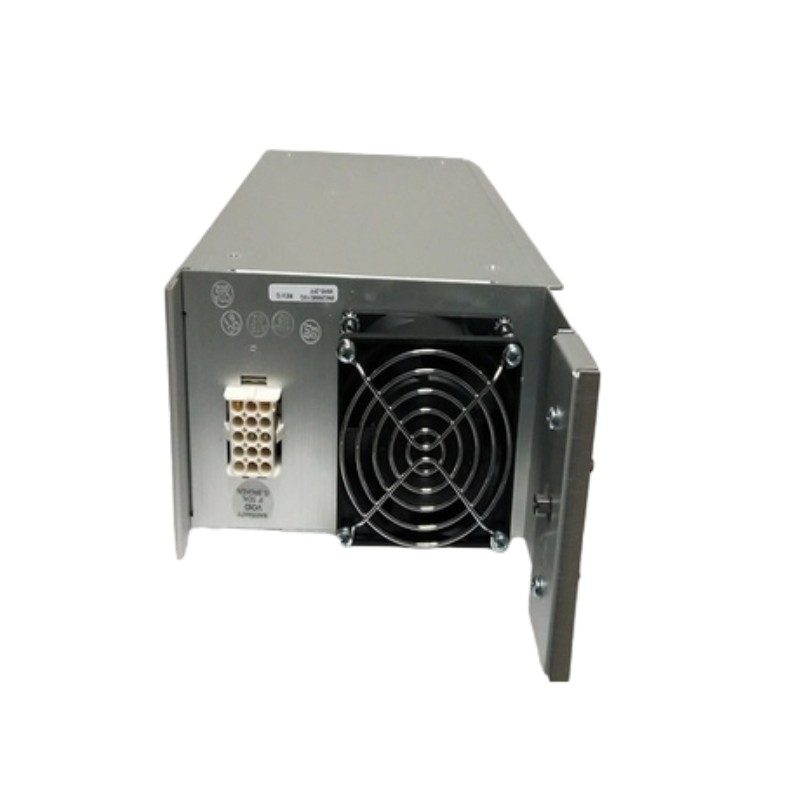

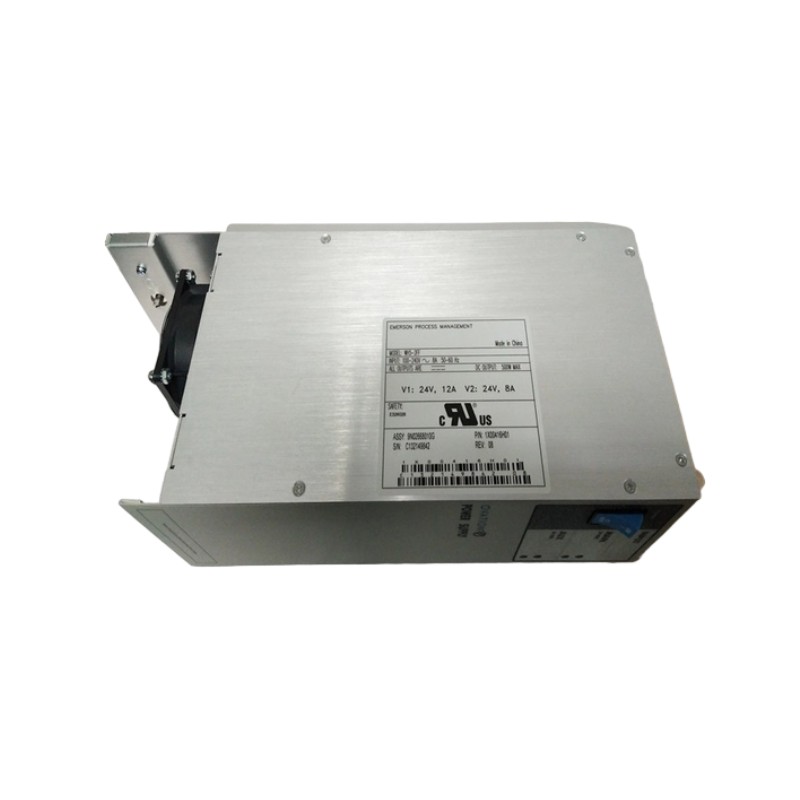

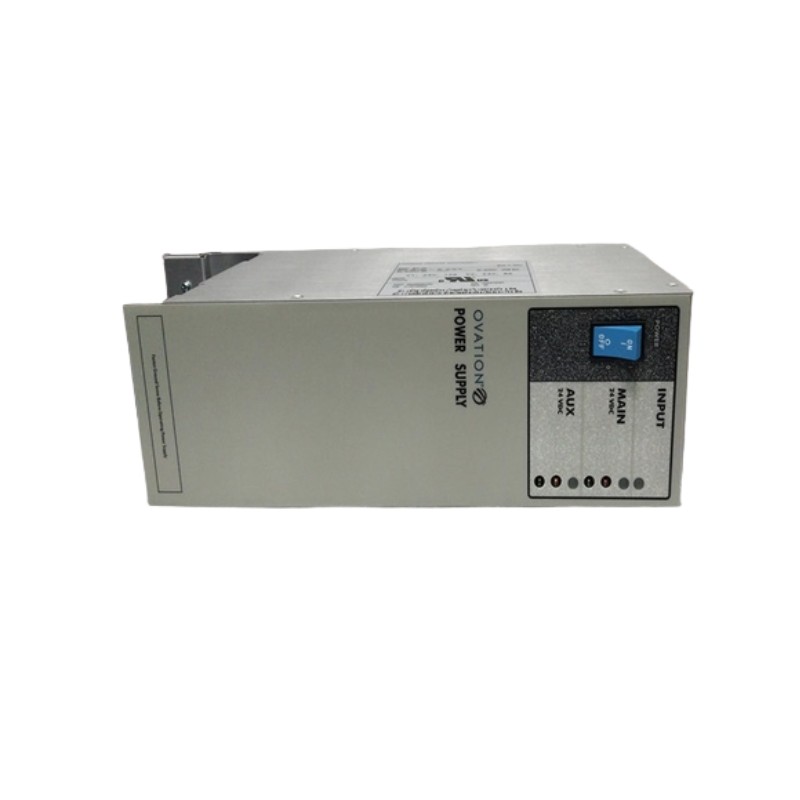

The OVATION 1C31051G02 is a regulated DC power supply module designed for the OVATION Distributed Control System (DCS). From a system-engineer perspective, this module provides stable 24 V DC to control logic, I/O modules, and field devices, ensuring continuous operation in industrial settings such as power plants, chemical plants, and other process facilities. Its design supports predictive maintenance, operational reliability, and simplified replacement procedures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Power Supply Module |
| Model / Part No. | 1C31051G02 |
| Input Voltage | 120 V AC or 240 V AC mains |
| Output Voltage | 24 V DC, regulated |
| Power Rating | 500 W nominal |
| Output Type | 24 V DC for logic, I/O, and field devices |
| Operating Temperature | –10 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Tolerance | 5% to 95% non‑condensing |
| Cooling Method | Natural convection |
| Dimensions | 165 × 32 × 110 mm (H × W × D) |
| Weight | 0.50 kg |
| Mounting | Rack-mountable, standard OVATION chassis |
