Product Overview

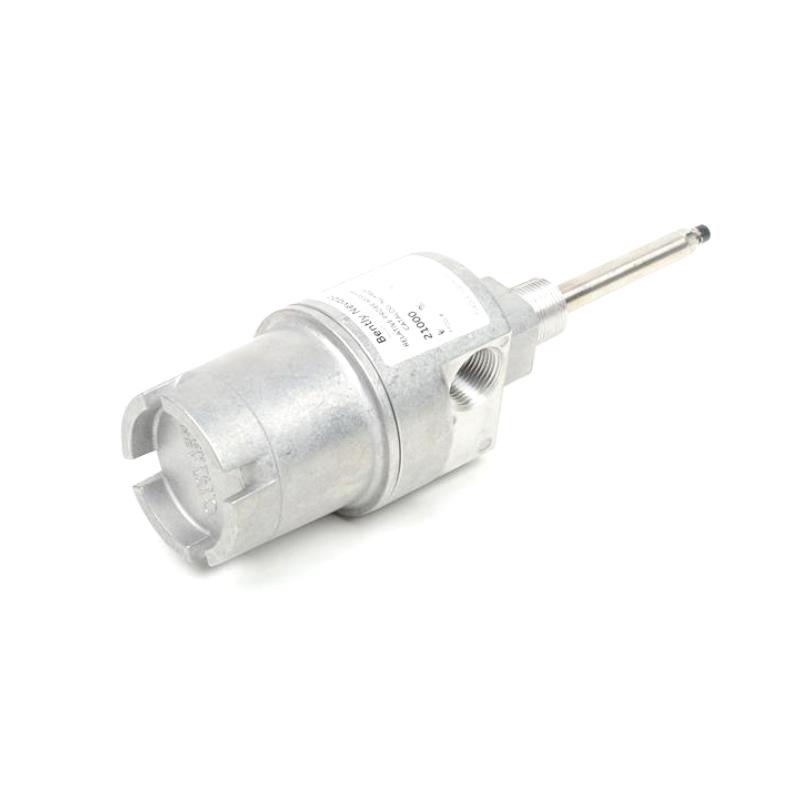

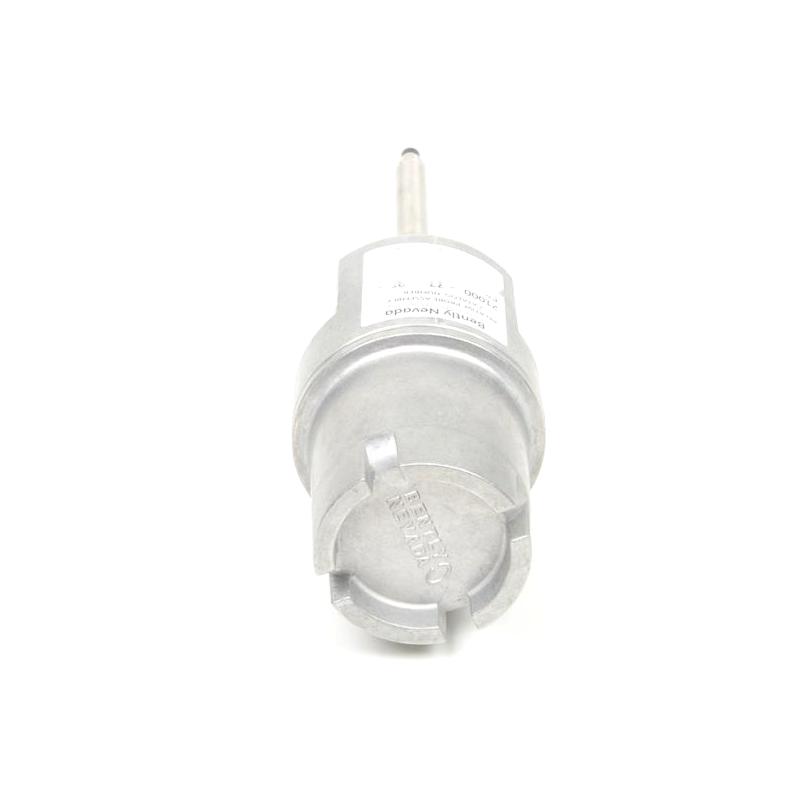

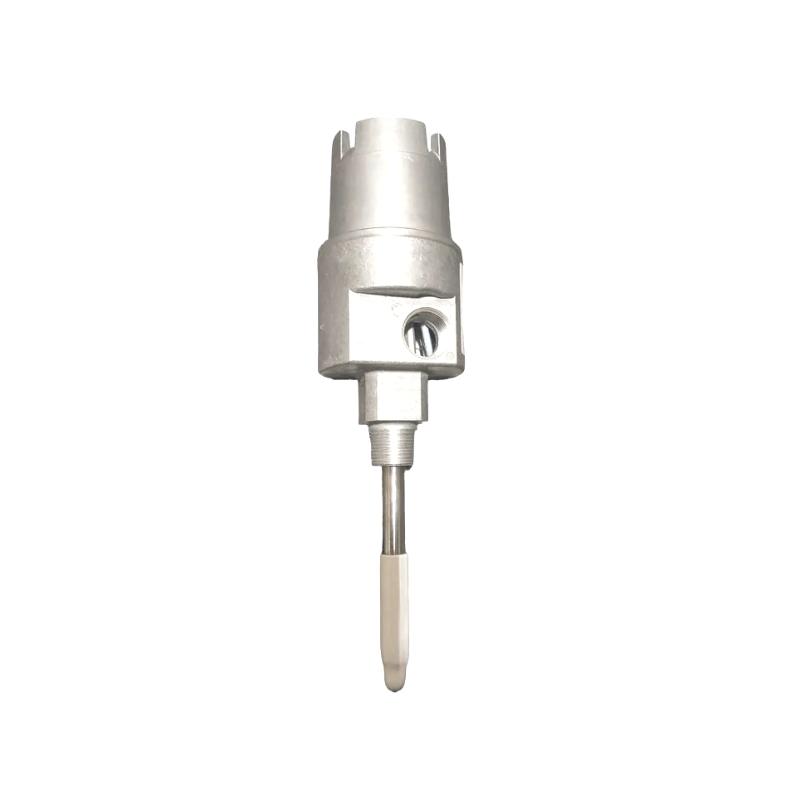

The Bently Nevada 21000-16-10-00-088-00-02 Proximity Probe Housing Assembly is an external mounting assembly designed for the installation of a 3300 XL 8 mm reverse-mount proximity probe. The assembly features a rugged aluminum housing with a 304 stainless steel probe sleeve, providing excellent mechanical protection and convenient access for inspection, calibration, and probe replacement.
This configuration includes a 3300 XL 8 mm reverse-mount probe (Option 16), a 1.0 m (39 in.) probe cable (Option 10), no standoff adapter (Option 00), an 8.8 in. (224 mm) probe penetration (Option 088), no conduit fittings supplied (Option 00), and a 3/4-14 NPT mounting thread (Option 02). The assembly is suitable for permanent installation on rotating machinery where reliable shaft vibration and position measurement are required.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 21000-16-10-00-088-00-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Series | 21000 |
| Included Probe | 3300 XL 8 mm Reverse-Mount Proximity Probe |
| Probe Cable Length | 1.0 m (39 in.) |
| Standoff Adapter | None |
| Probe Penetration | 8.8 in. (224 mm) |
| Fittings | None (Option 00) |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Aluminum |
| Probe Sleeve Material | 304 Stainless Steel |
| Housing Cover | Threaded Aluminum Dome |
| Sealing Method | O-Ring Sealed |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Proximitor | 3300 XL 8 mm Proximitor Sensor |
| Operating Temperature* | -51°C to +177°C (-60°F to +351°F) |
| Housing Diameter | 83.3 mm (3.28 in.) |
| Probe Penetration Length | 224 mm (8.8 in.) |
| Approximate Product Weight | 1.1 kg |
| Approximate Shipping Weight | 2.0 kg |
| Country of Origin | USA |
