Product Overview

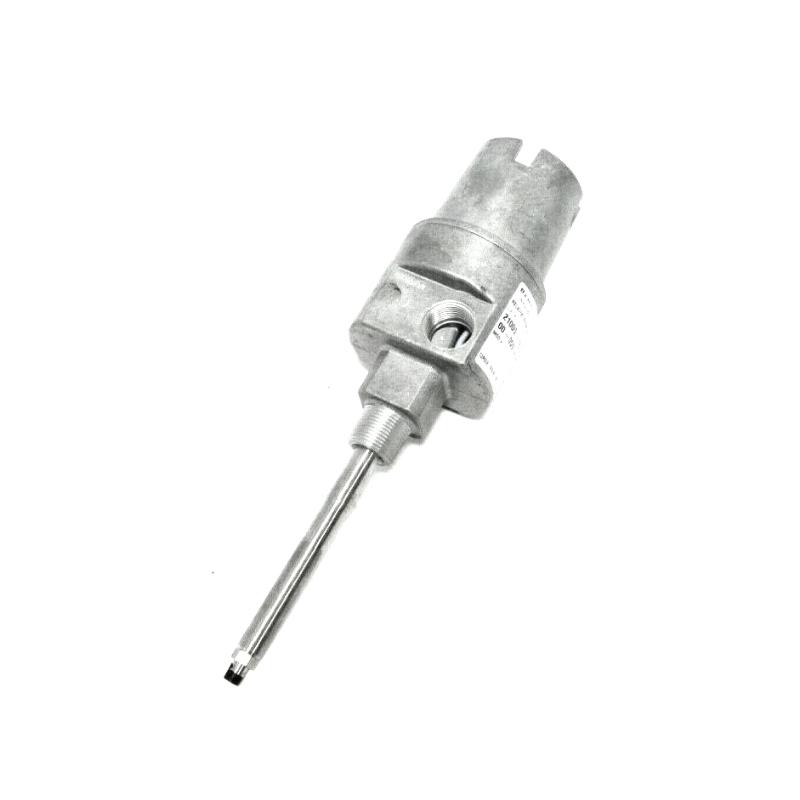

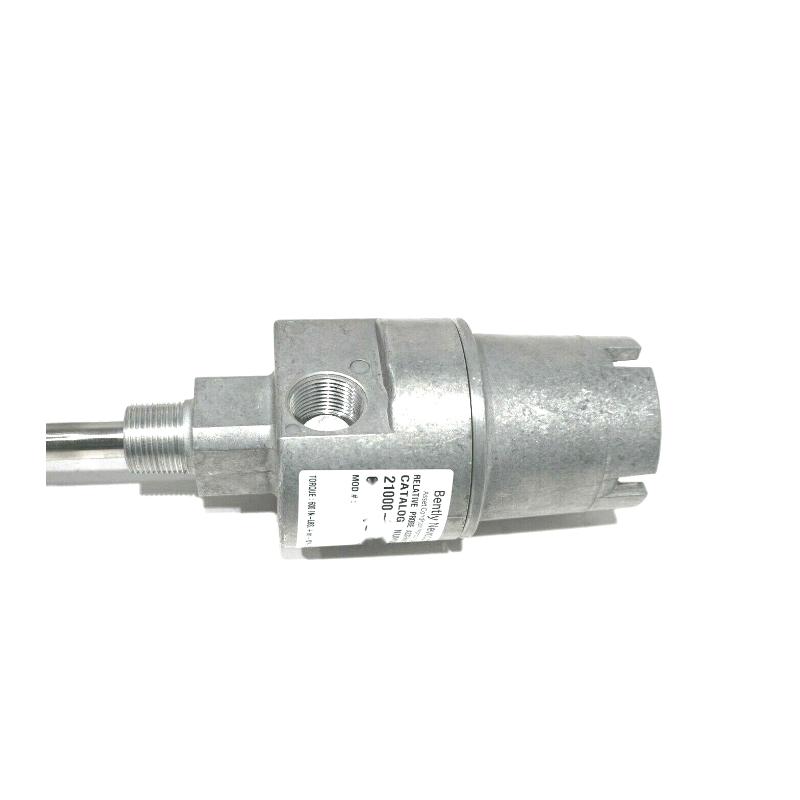

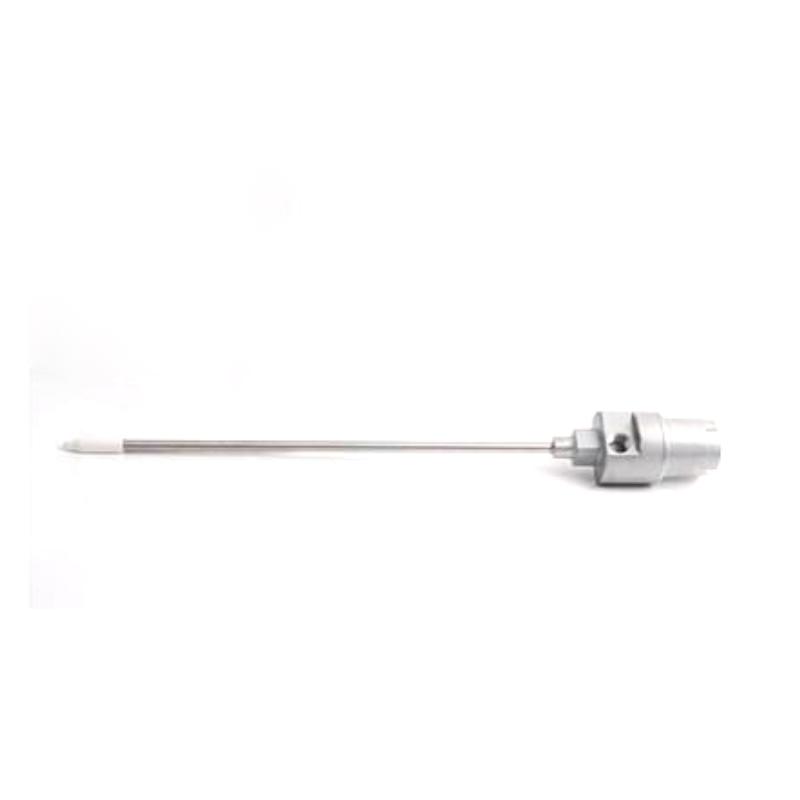

The Bently Nevada 21000-16-05-00-047-04-02 Proximity Probe Housing Assembly is a high-quality external mounting solution engineered for the installation of Bently Nevada reverse-mount proximity probes. Designed with a corrosion-resistant aluminum housing and a 304 stainless-steel probe sleeve, it provides dependable protection while allowing easy access for probe inspection, adjustment, and replacement. The assembly is suitable for continuous machinery condition monitoring and conforms to API 670 recommendations for externally mounted probe housings.
This configuration includes a 3300 XL 8 mm reverse-mount proximity probe (Option 16), a 0.5 m (20 in.) probe cable (Option 05), no standoff adapter (Option 00), a 4.7 in. (119 mm) probe penetration (Option 047), one 3/4-14 NPT plug (Option 04), and a 3/4-14 NPT mounting thread (Option 02).
Technical Specifications
| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 21000-16-05-00-047-04-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Series | 21000 |
| Housing Material | Aluminum |
| Probe Sleeve Material | 304 Stainless Steel |
| Included Probe | 3300 XL 8 mm Reverse-Mount Proximity Probe |
| Probe Cable Length | 0.5 m (20 in.) |
| Standoff Adapter | None |
| Probe Penetration | 4.7 in. (119 mm) |
| Fittings | One 3/4-14 NPT Plug |
| Mounting Thread | 3/4-14 NPT |
| Enclosure Style | Threaded Dome Cover |
| Sealing | O-Ring Sealed Construction |
| Compatible Proximitor | 3300 XL 8 mm Proximitor Sensor |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Operating Temperature* | -51°C to +177°C (-60°F to +351°F) |
| Housing Body Diameter | 83.3 mm (3.28 in.) |
| Product Weight | Approx. 1.1 kg |
| Shipping Weight | Approx. 2.0 kg |
| Country of Origin | USA |
