Product Overview

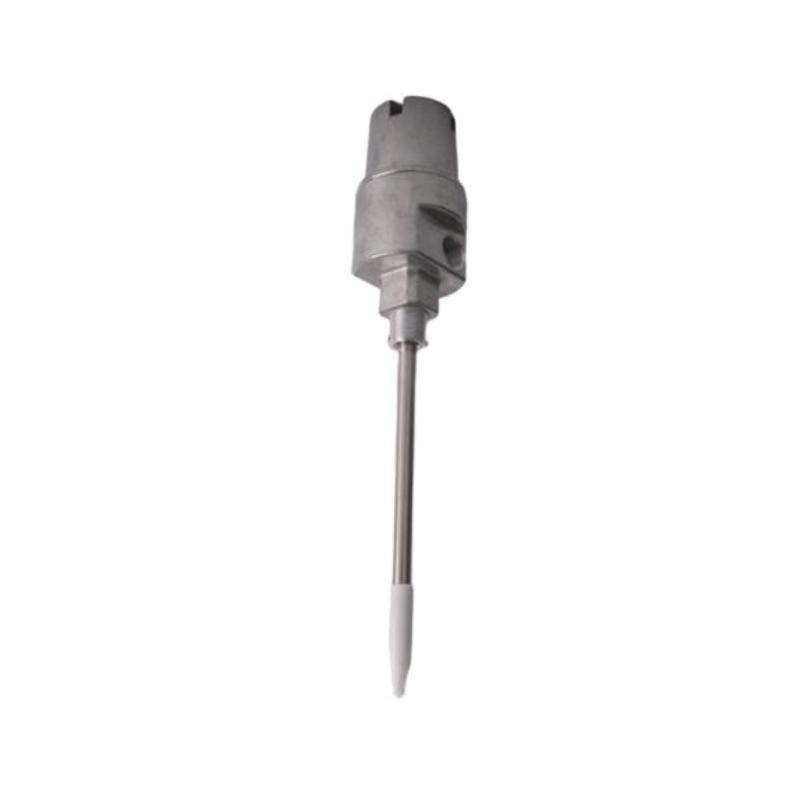

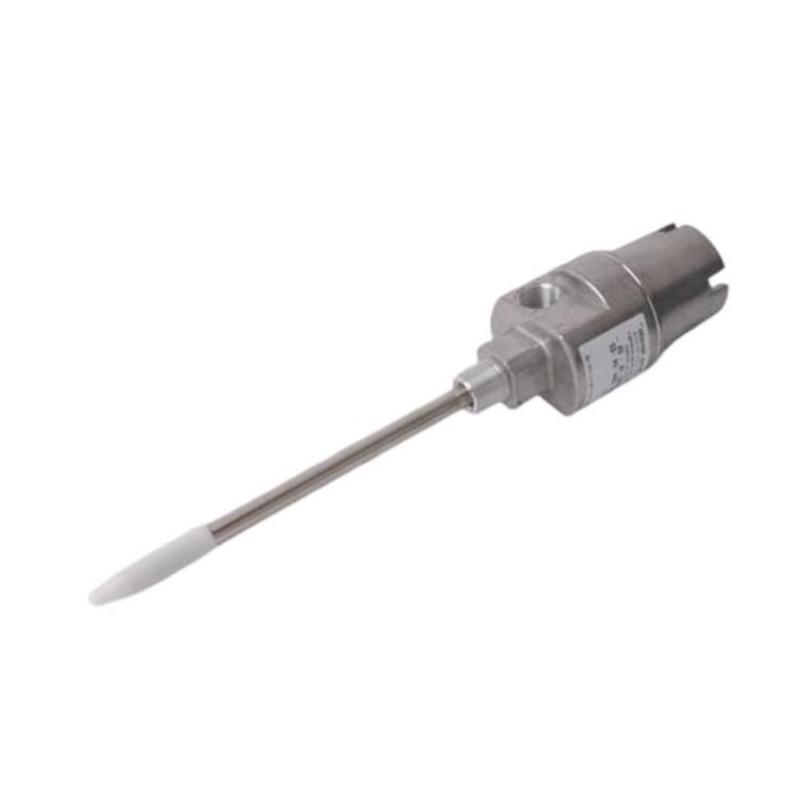

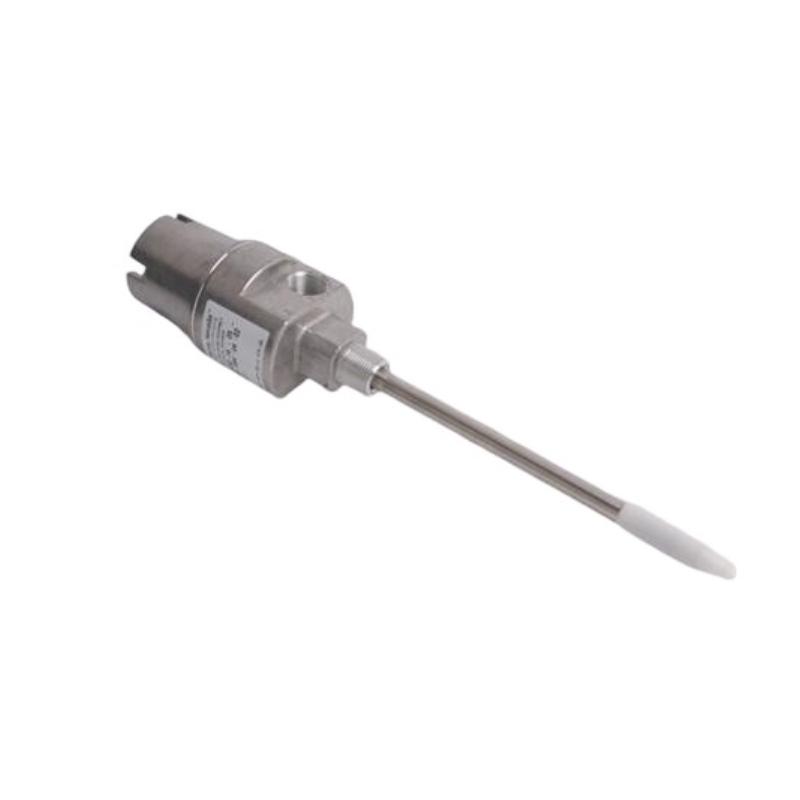

The Bently Nevada 21000-00-00-150-00-02 Proximity Probe Housing Assembly is a rugged external mounting enclosure designed for Bently Nevada proximity transducer installations. Manufactured with an aluminum housing and a 304 stainless-steel probe sleeve, it provides reliable environmental protection while allowing convenient probe inspection, adjustment, and replacement without disassembling the monitored equipment. The assembly is fully compatible with API 670 external mounting practices and is widely used on rotating machinery requiring dependable vibration monitoring.
This configuration is supplied without a proximity probe, without a probe cable, without a standoff adapter, features a 15.0 in. (381 mm) probe penetration, includes no conduit fittings (Option 00), and uses a 3/4-14 NPT mounting thread (Option 02). The extended sleeve length is suitable for installations requiring deeper probe penetration through bearing housings or machine casings.
Technical Specifications
| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 21000-00-00-150-00-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Series | 21000 |
| Housing Material | Aluminum |
| Probe Sleeve Material | 304 Stainless Steel |
| Probe Included | No |
| Probe Cable Included | No |
| Standoff Adapter | None |
| Probe Penetration | 15.0 in. (381 mm) |
| Fittings Option | 00 – No Fittings |
| Mounting Thread | 02 – 3/4-14 NPT |
| Dome Cover | Threaded Aluminum Cover |
| Sealing | O-Ring Sealed Construction |
| Compatible Probes | 3300 XL 8 mm, 3300 XL 11 mm, 3300 XL NSv Reverse Mount Probes |
| Typical Operating Temperature* | -51°C to +177°C (-60°F to +351°F) |
| Housing Dimensions | Sleeve Penetration: 381 mm (15.0 in.) |
| Product Weight | Approx. 1.1 kg |
| Shipping Weight | Approx. 1.5 kg |
| Country of Origin | USA |
