Bently Nevada 21000-11-10-00-240-04-02 Proximity Probe Housing Assemblies

Name: Bently Nevada 21000-11-10-00-240-04-02 Proximity Probe Housing Assemblies
Brand: Bently Nevada PLC
SKU: 9540
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:21000-11-10-00-240-04-02
Product Origin:USA
Product Dimensions:Probe Penetration: 610 mm
Product Weight:1.1kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

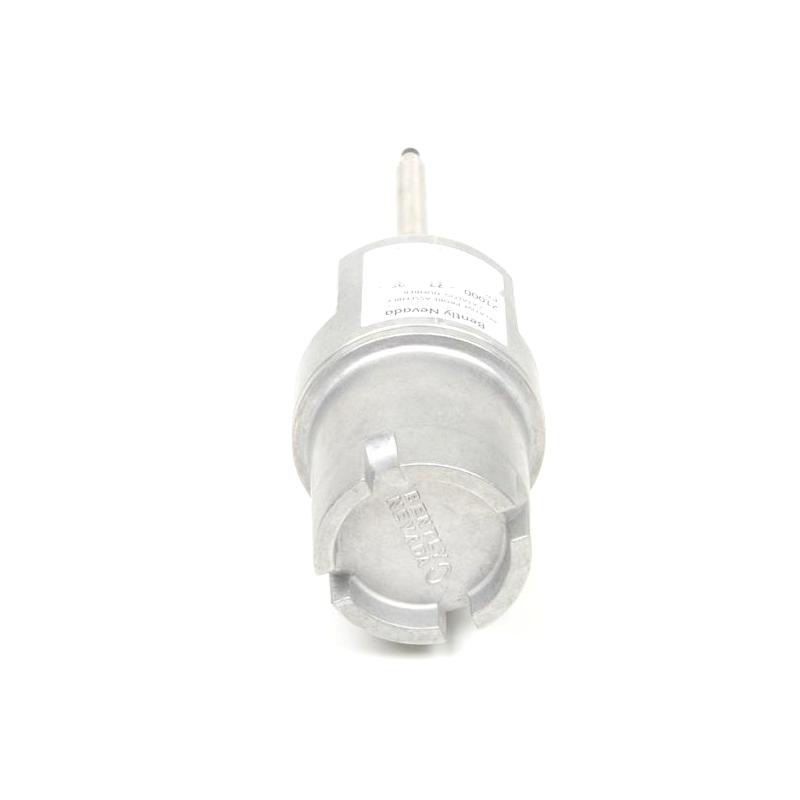

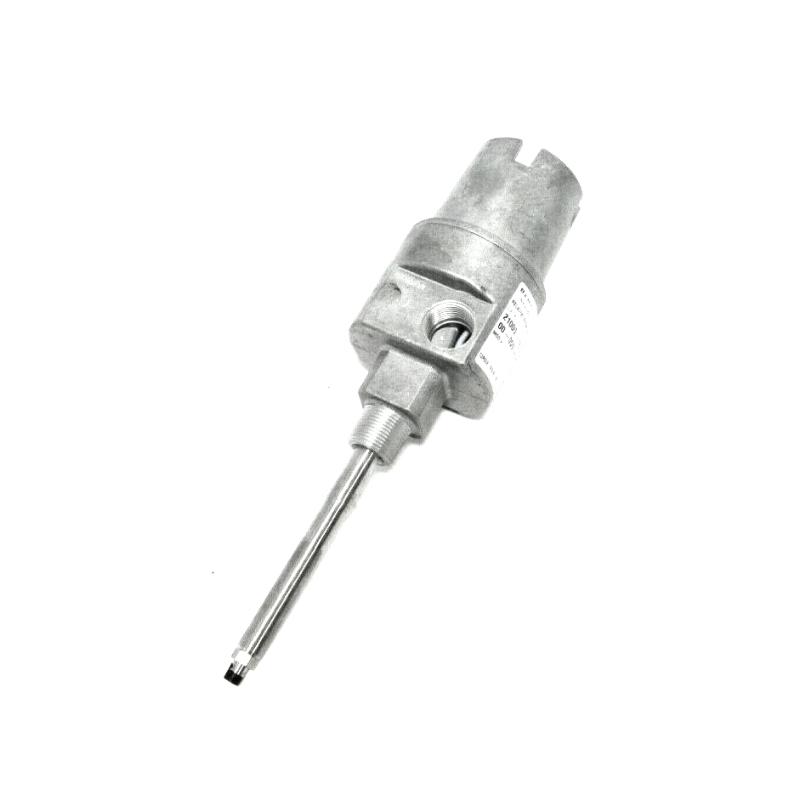

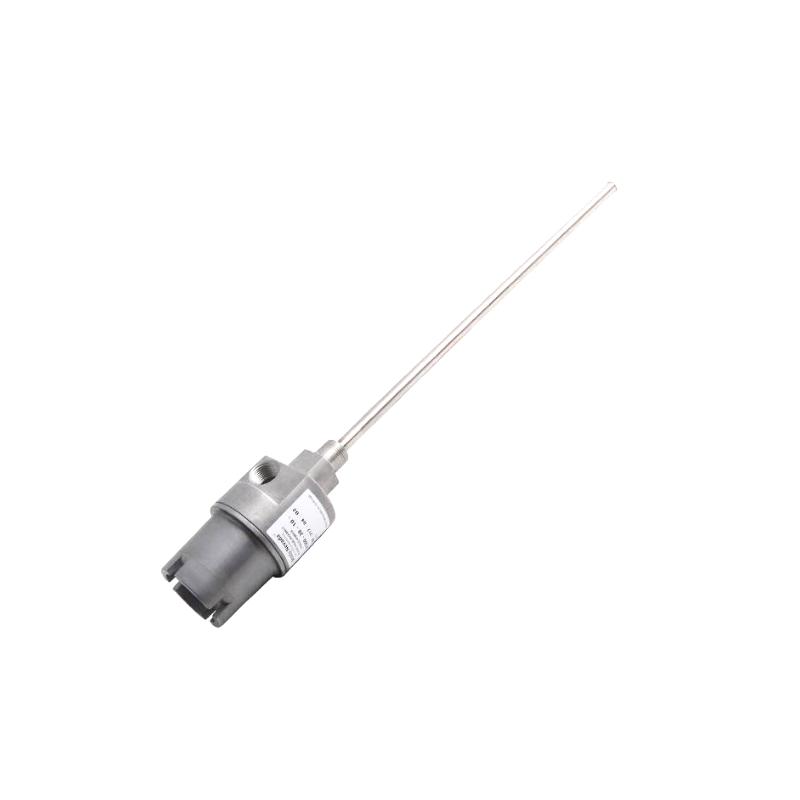

The Bently Nevada 21000-11-10-00-240-04-02 Proximity Probe Housing Assembly is an externally mounted probe housing designed for reliable installation of Bently Nevada reverse-mount proximity probes on rotating machinery. Manufactured with a lightweight aluminum housing and a 304 stainless-steel probe sleeve, it provides dependable environmental protection while allowing easy probe access for inspection and maintenance. The assembly is designed in accordance with API 670 recommendations for externally mounted proximity probe housings and is suitable for long-term machinery monitoring applications.

This specific configuration includes a 3300 XL 8 mm reverse-mount proximity probe (Option 11), a 1.0 m (39 in.) probe cable (Option 10), no standoff adapter (Option 00), a 24.0 in. (610 mm) probe penetration (Option 240), one 3/4-14 NPT plug (Option 04), and a 3/4-14 NPT mounting thread (Option 02). Sleeve lengths exceeding 12 inches are recommended to use additional sleeve support for improved mechanical stability.

Technical Specifications

Specification	Description
Manufacturer	Bently Nevada
Model Number	21000-11-10-00-240-04-02
Product Type	Proximity Probe Housing Assembly
Housing Series	21000
Housing Material	Aluminum
Probe Sleeve Material	304 Stainless Steel
Included Probe	3300 XL 8 mm Reverse-Mount Proximity Probe
Probe Cable Length	1.0 m (39 in.)
Standoff Adapter	None
Probe Penetration	24.0 in. (610 mm)
Conduit Fittings	One 3/4-14 NPT Plug
Mounting Thread	3/4-14 NPT
Enclosure Style	Threaded Dome Cover
Sealing Method	O-Ring Sealed
Compatible Proximitor	3300 XL 8 mm Proximitor Sensor
Compatible Extension Cable	3300 XL Extension Cable
Operating Temperature*	-51°C to +177°C (-60°F to +351°F)
Housing Dimensions	Probe Penetration: 610 mm (24.0 in.)
Product Weight	Approx. 1.1 kg
Shipping Weight	Approx. 1.6 kg
Country of Origin	USA

Typical Applications

The 21000-11-10-00-240-04-02 is designed for external proximity probe mounting on rotating equipment where extended probe reach is required.

Typical applications include:

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Gearboxes
Electric generators
Fans and blowers
Machinery retrofit and maintenance projects

Its 24-inch probe penetration provides additional installation flexibility for equipment with deep bearing housings while maintaining convenient access for maintenance.

Product Advantages

Genuine Bently Nevada 21000 Series assembly.
Supplied with a 3300 XL 8 mm reverse-mount proximity probe.
Includes a factory-matched 1.0 m probe cable.
Durable aluminum housing with stainless-steel sleeve.
Extended 24.0-inch probe penetration.
3/4-14 NPT threaded mounting connection.
O-ring sealed enclosure for reliable environmental protection.
Threaded dome cover enables quick inspection and servicing.
Suitable for continuous machinery monitoring installations.

Technical FAQs

1. What is the 21000-11-10-00-240-04-02?
It is a complete 21000 Series Proximity Probe Housing Assembly supplied with a 3300 XL 8 mm reverse-mount proximity probe and 1.0 m probe cable.

2. Which proximity probe is included?
Option 11 includes a 3300 XL 8 mm reverse-mount proximity probe.

3. What cable length is supplied?
Option 10 specifies a 1.0 m (39 in.) probe cable.

4. Does this configuration include a standoff adapter?
No. Option 00 indicates that no standoff adapter is supplied.

5. What does Option "240" represent?
It specifies a 24.0-inch (610 mm) probe penetration.

6. What fittings are included?
Option 04 includes one 3/4-14 NPT plug.

7. What mounting thread does the housing use?
Option 02 specifies a 3/4-14 NPT mounting thread.

8. What materials are used in the housing?
The housing body is aluminum, and the probe sleeve is manufactured from 304 stainless steel.

9. What is the approximate product weight?
The typical housing weight is approximately 1.1 kg, with an estimated shipping weight of 1.6 kg.

10. Is additional sleeve support recommended?
Yes. For sleeve lengths greater than 12 inches (304 mm), additional sleeve support is recommended to improve installation rigidity.
