Product Overview

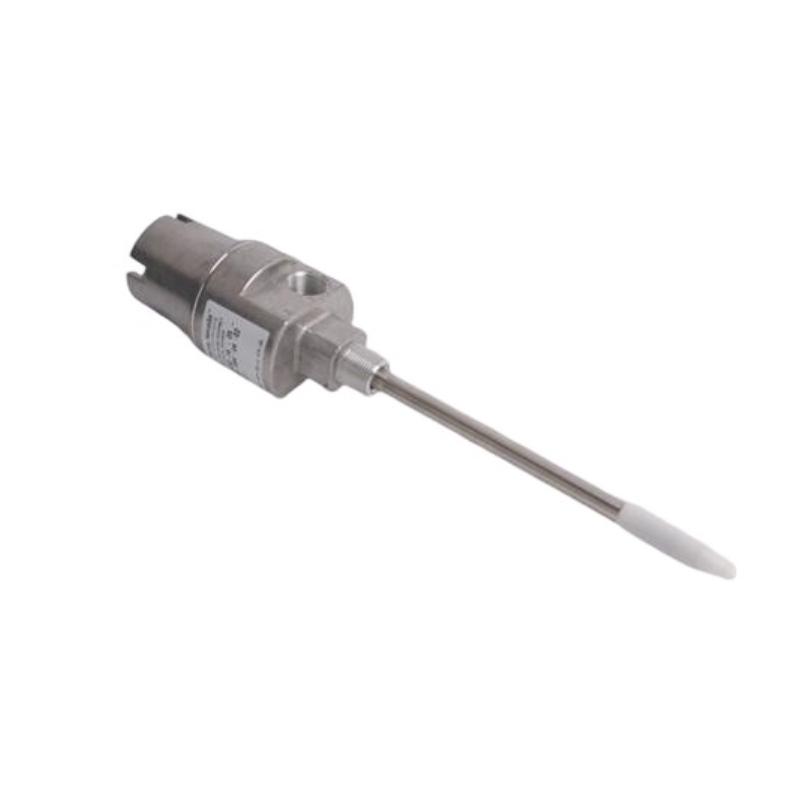

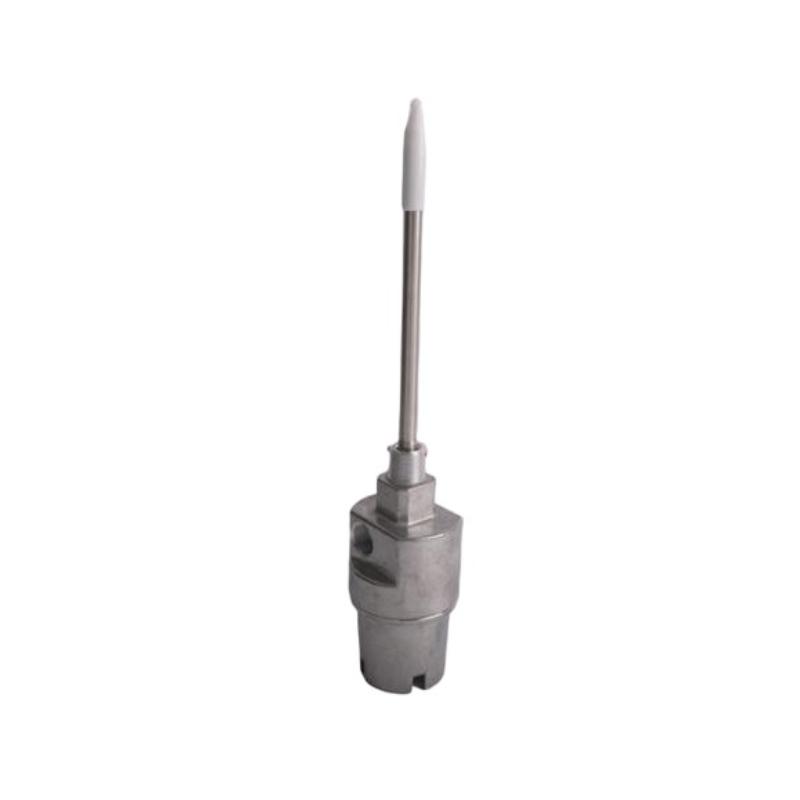

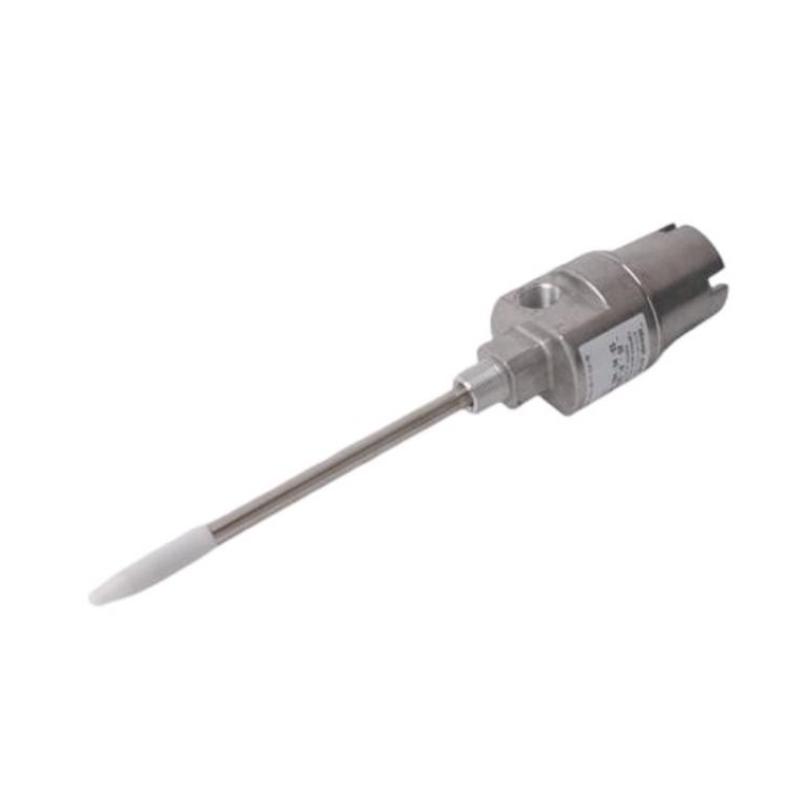

The Bently Nevada 21000-00-00-15-250-00-02 Proximity Probe Housing Assembly is a durable external mounting housing designed for Bently Nevada reverse-mount proximity probes. Constructed with an aluminum body and a 304 stainless-steel probe sleeve, it provides dependable environmental protection while allowing convenient access for probe inspection, adjustment, and replacement. The assembly is suitable for machinery condition monitoring installations that require an extended probe reach and complies with API 670 practices for externally mounted probe housings.
This configuration is supplied without a proximity probe, without a probe cable, features a 1.5 in. (38 mm) standoff adapter, 25.0 in. (635 mm) probe penetration, no conduit fittings (Option 00), and a 3/4-14 NPT mounting thread (Option 02). Because the total sleeve length exceeds 12 inches, additional sleeve support is recommended to maintain installation rigidity.
Technical Specifications
| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 21000-00-00-15-250-00-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Series | 21000 |
| Housing Material | Aluminum |
| Probe Sleeve Material | 304 Stainless Steel |
| Probe Included | No |
| Probe Cable Included | No |
| Standoff Adapter | 1.5 in. (38 mm) |
| Probe Penetration | 25.0 in. (635 mm) |
| Fittings Option | 00 – No Fittings |
| Mounting Thread | 02 – 3/4-14 NPT |
| Dome Cover | Threaded Aluminum Cover |
| Sealing | O-Ring Sealed Construction |
| Compatible Probes | 3300 XL 8 mm, 3300 XL 11 mm, 3300 XL NSv Reverse Mount Probes |
| Compatible Standards | API 670 External Mounting |
| Typical Operating Temperature* | -51°C to +177°C (-60°F to +351°F) |
| Dimensions | Probe Penetration: 635 mm (25.0 in.); Standoff Adapter: 38 mm (1.5 in.) |
| Product Weight | Approx. 1.1 kg |
| Shipping Weight | Approx. 1.5 kg |
| Country of Origin | USA |
