Introduction | Precision Engineered for Critical Rotating Machinery Monitoring

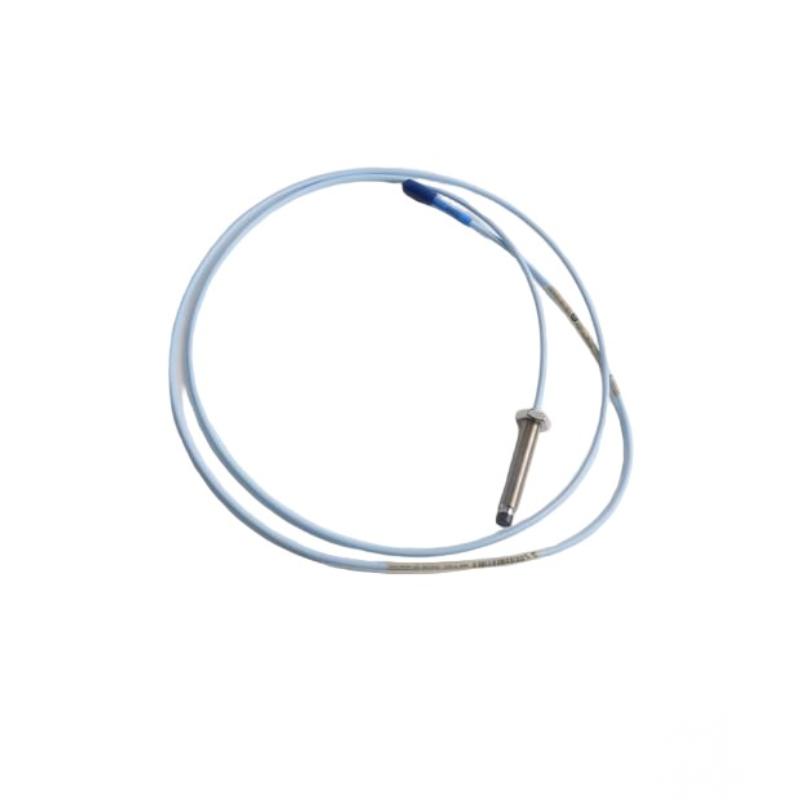

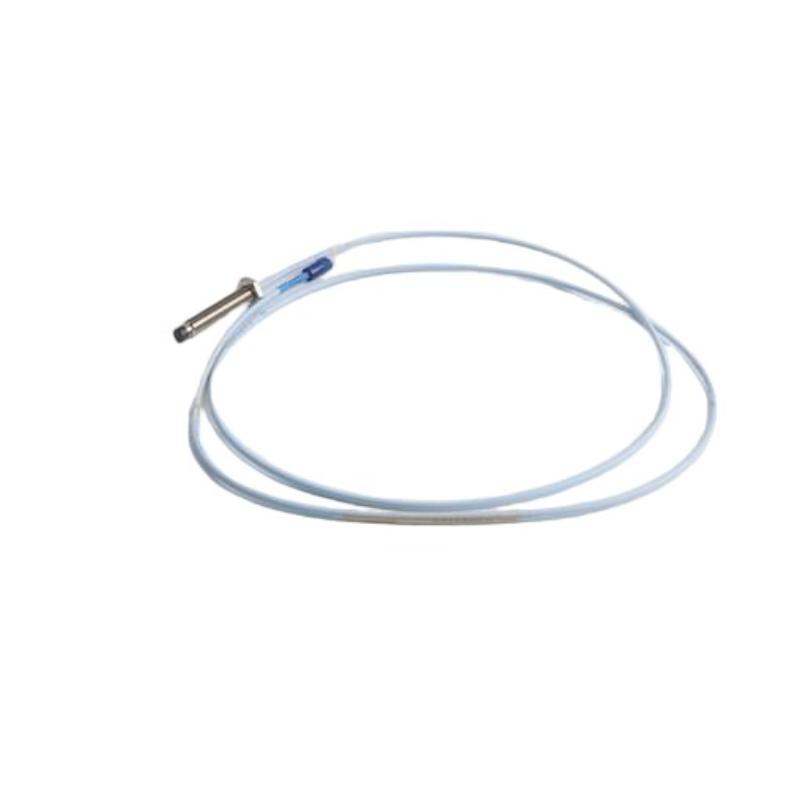

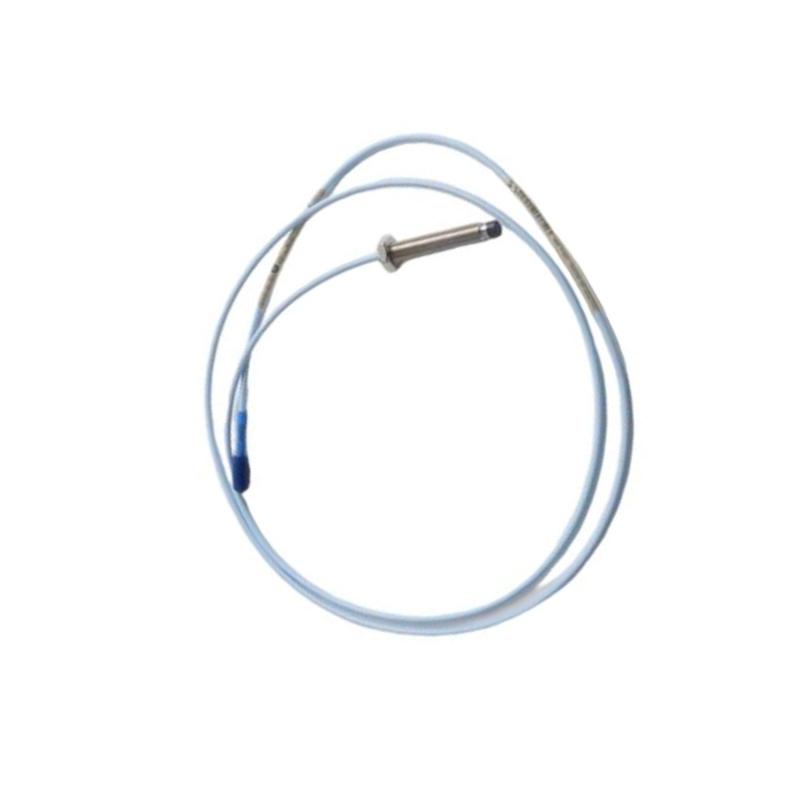

The Bently Nevada 330103-17-22-10-12-05 3300 XL Proximity Probe is a high-precision eddy current sensor designed for continuous monitoring of shaft vibration, displacement, and position in industrial rotating equipment. As part of the globally trusted 3300 XL 8 mm proximity transducer system, this probe delivers exceptional measurement stability and long-term interchangeability in mission-critical applications.
Built for harsh industrial environments, it is widely used in turbine, compressor, pump, and generator protection systems where real-time mechanical condition monitoring is essential. Its robust design ensures consistent performance even under vibration, high temperature, and electromagnetic interference conditions.
Technical Specifications | Mechanical Structure & Measurement Performance
| Parameter | Specification |
|---|
| Model | 330103-17-22-10-12-05 |
| Series | 3300 XL (8 mm Proximity Probe) |
| Type | Eddy Current Proximity Probe |
| Measurement Function | Shaft vibration, axial position, radial displacement |
| System Compatibility | Bently Nevada 3300 XL Proximitor Sensor System |
| Target Material | Conductive metallic shaft (typically steel) |
| Output Type | Proportional voltage signal (system-based conversion) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Integrated coaxial probe cable |
| Thread Type | M10 × 1 (standard 330103 configuration family) |
| Operating Temperature | -52°C to +177°C (system dependent) |
Applications | Industrial Use Cases Across Critical Infrastructure
The 330103-17-22-10-12-05 probe is widely deployed in condition monitoring systems for:
-
Steam turbine shaft vibration monitoring
-
Gas turbine rotor position measurement
-
Centrifugal compressor radial displacement detection
-
Industrial pump bearing condition monitoring
-
Generator shaft vibration and axial position tracking
-
Oil & gas rotating equipment protection systems
-
Petrochemical and refinery machinery diagnostics
-
Power plant turbine supervisory instrumentation (TSI systems)
Its consistent signal output supports predictive maintenance strategies and helps operators reduce unexpected equipment failures.
Advantages | Why It Is Trusted in Industrial Monitoring Systems
-
High-precision eddy current sensing for reliable displacement data
-
Stable long-term performance with minimal calibration drift
-
Strong resistance to EMI and harsh electrical environments
-
Fully compatible with Bently Nevada 3300 XL ecosystem
-
Rugged industrial-grade construction for continuous operation
-
Interchangeable system design simplifies maintenance and replacement
-
Suitable for high-temperature rotating machinery environments
-
Proven performance in global power and process industries
This probe is engineered for environments where measurement accuracy directly impacts equipment safety and operational uptime.
Technical FAQs | Practical Engineering Insights
1. What does this proximity probe measure?
It measures shaft vibration, radial displacement, and axial position in rotating machinery.
2. What system is it designed for?
It is designed for the Bently Nevada 3300 XL Proximitor Sensor system.
3. What is the measurement principle?
It uses eddy current non-contact sensing technology.
4. Can it measure both static and dynamic signals?
Yes, it supports both position (static) and vibration (dynamic) measurement.
5. Is it suitable for turbine applications?
Yes, it is widely used in steam and gas turbine monitoring systems.
6. What type of material does it measure?
Conductive metallic surfaces such as steel shafts.
7. Does it require system calibration?
Yes, calibration is performed at the system level with matched components.
8. Can it withstand harsh environments?
Yes, it is designed for high temperature, vibration, and industrial EMI conditions.
9. Is it interchangeable with other probes?
Only within compatible 3300 XL system configurations and matched lengths.
10. What industries commonly use it?
Power generation, oil & gas, petrochemical, and heavy manufacturing industries.
