Product Overview

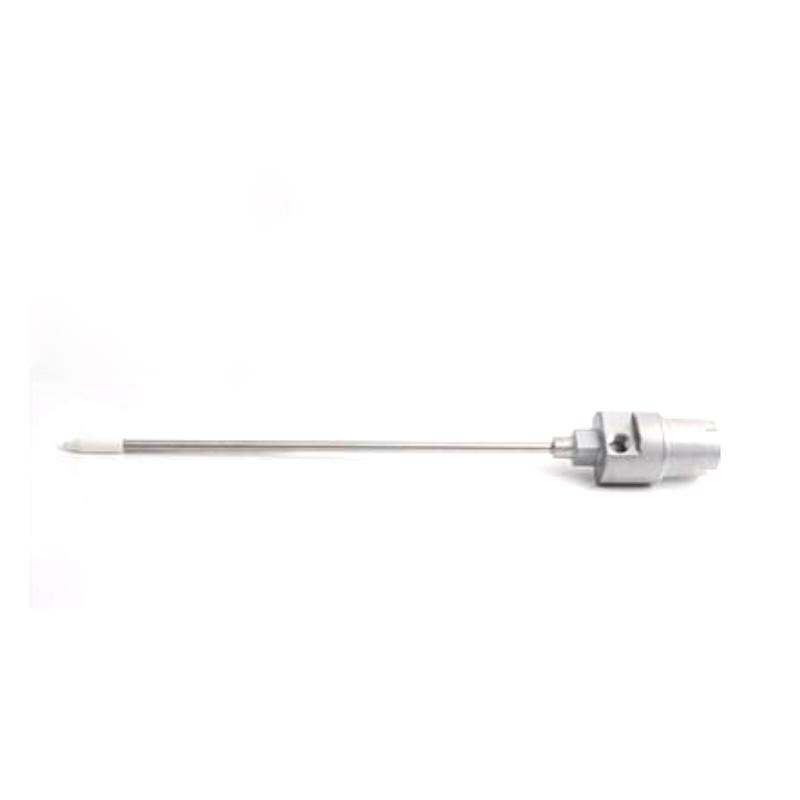

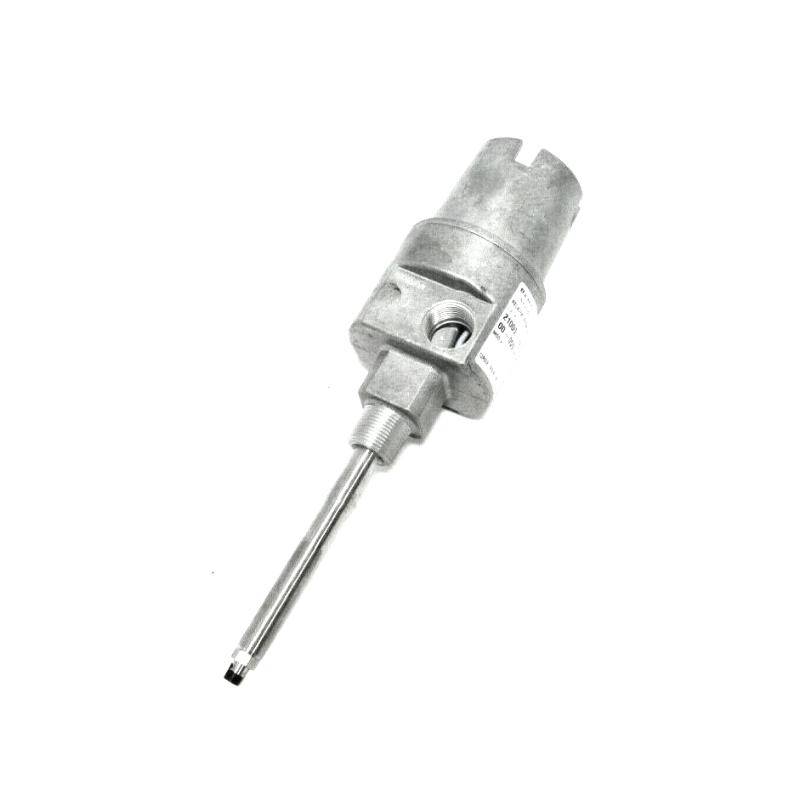

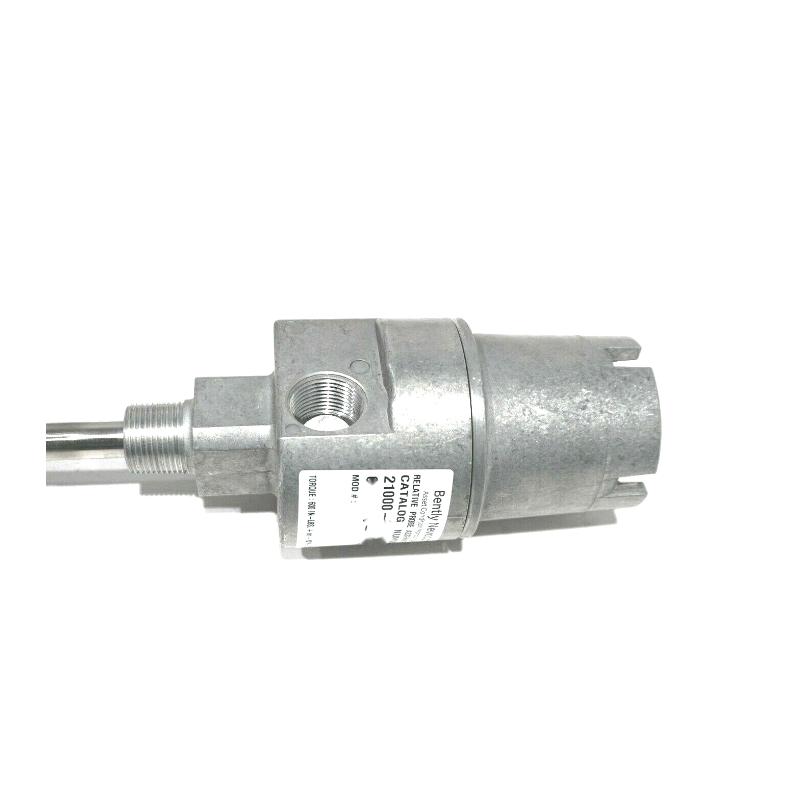

The Bently Nevada 21000-16-05-00-019-03-02 Proximity Probe Housing Assembly is a precision-engineered external mounting solution designed for reliable installation of Bently Nevada reverse-mount proximity probes. Featuring a rugged aluminum housing, a 304 stainless-steel probe sleeve, and a threaded dome cover, this assembly provides dependable environmental protection while allowing convenient access for inspection and maintenance. It is designed for permanent machinery monitoring installations and follows API 670 recommendations for externally mounted probe housings.
This configuration includes a 3300 XL 8 mm reverse-mount proximity probe (Option 16), a 0.5 m (20 in.) probe cable (Option 05), no standoff adapter (Option 00), a 1.9 in. (48 mm) probe penetration (Option 019), one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and one cable seal grip (Option 03), together with a 3/4-14 NPT mounting thread (Option 02).
Technical Specifications
| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 21000-16-05-00-019-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Series | 21000 |
| Housing Material | Aluminum |
| Probe Sleeve Material | 304 Stainless Steel |
| Included Probe | 3300 XL 8 mm Reverse-Mount Proximity Probe |
| Probe Cable Length | 0.5 m (20 in.) |
| Standoff Adapter | None |
| Probe Penetration | 1.9 in. (48 mm) |
| Fittings | One 3/4-14 NPT Plug, One 3/4-14 to 1/2-14 NPT Reducer, One Cable Seal Grip with Grommets |
| Mounting Thread | 3/4-14 NPT |
| Enclosure Style | Threaded Dome Cover |
| Sealing | O-Ring Sealed |
| Compatible Sensor | 3300 XL 8 mm Proximitor Sensor |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Operating Temperature* | -51°C to +177°C (-60°F to +351°F) |
| Dimensions | Probe Penetration: 48 mm (1.9 in.) |
| Product Weight | Approx. 1.1 kg |
| Shipping Weight | Approx. 2.5 kg |
| Country of Origin | USA |
