Product Overview

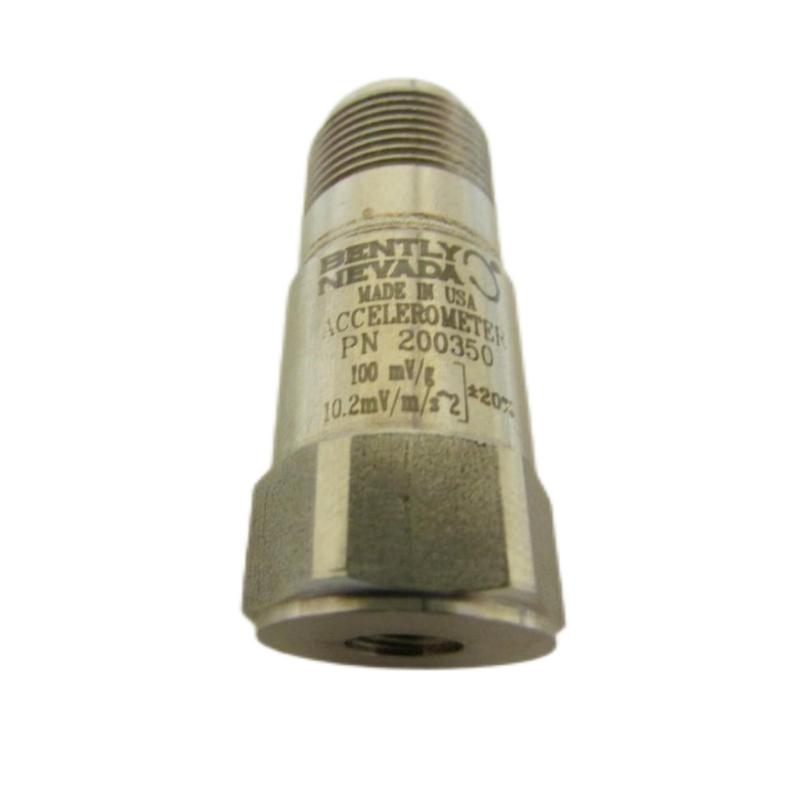

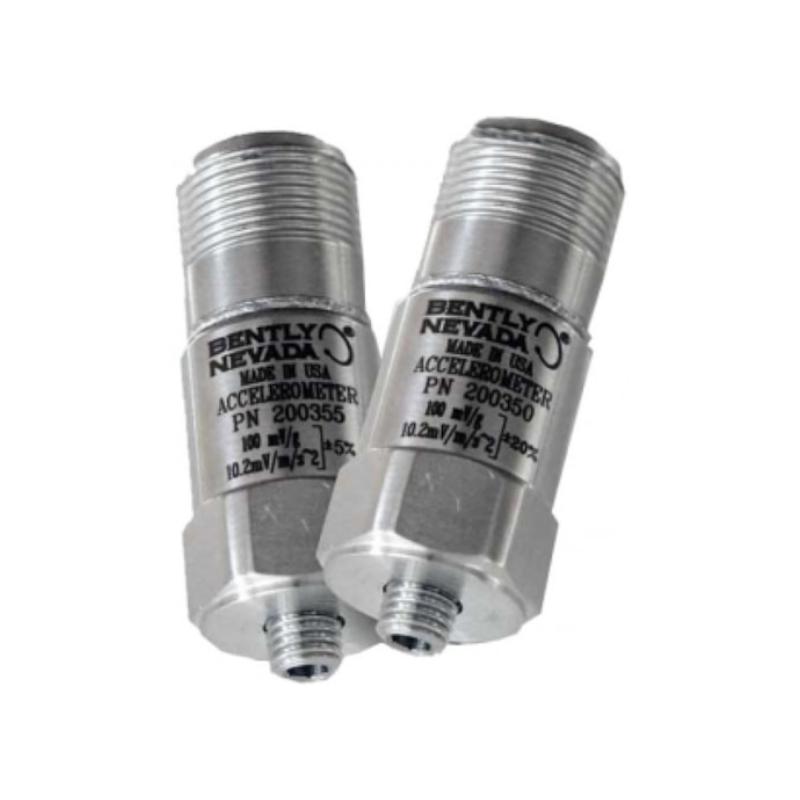

The Bently Nevada 200350-00-00-00 Accelerometer is a general-purpose, case-mounted seismic transducer designed for continuous vibration measurement in rotating equipment. It incorporates a piezoelectric sensing element housed in a hermetically sealed stainless-steel enclosure, delivering dependable acceleration measurements in demanding industrial environments. The sensor is compatible with Trendmaster Pro Constant Current Direct Input Cards and Seismic Direct Input Cards, making it an excellent choice for permanent condition monitoring installations.
The 200350-00-00-00 configuration includes a ¼-28 stainless steel mounting stud with brass tip (0.5 in.), 100 mV/g sensitivity (±20%), and No Agency Approval (00). Its rugged construction and wide operating temperature range help ensure reliable long-term performance across a variety of machinery monitoring applications.
Technical Specifications
| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 200350-00-00-00 |
| Product Type | Accelerometer |
| Sensor Technology | Piezoelectric |
| Output Sensitivity | 100 mV/g (10.2 mV/m/s²) ±20% |
| Frequency Response | 2 Hz to 10 kHz (±3 dB) |
| Measurement Type | Acceleration |
| Connector Type | 2-Pin MIL-C-5015 |
| Housing Material | Hermetically Sealed Stainless Steel |
| Mounting Stud | ¼-28 Stainless Steel with Brass Tip, 0.5 in. |
| Mounting Option Code | 00 |
| Tolerance Code | 00 |
| Approval Option | 00 – No Approvals |
| Supply Type | Constant Current |
| Compatible Hardware | Trendmaster Pro, Seismic Direct Input Card |
| Operating Temperature | -54°C to +121°C (-65°F to +250°F) |
| Shock Limit | 5,000 g Peak |
| Sealing | Hermetically Sealed |
| Dimensions | Approx. Ø31.8 × 44.5 mm (1.25 × 1.75 in.) |
| Product Weight | Approx. 0.24 kg |
| Shipping Weight | Approx. 0.45 kg |
| Country of Origin | USA |
