Designed for Secure Probe Installation

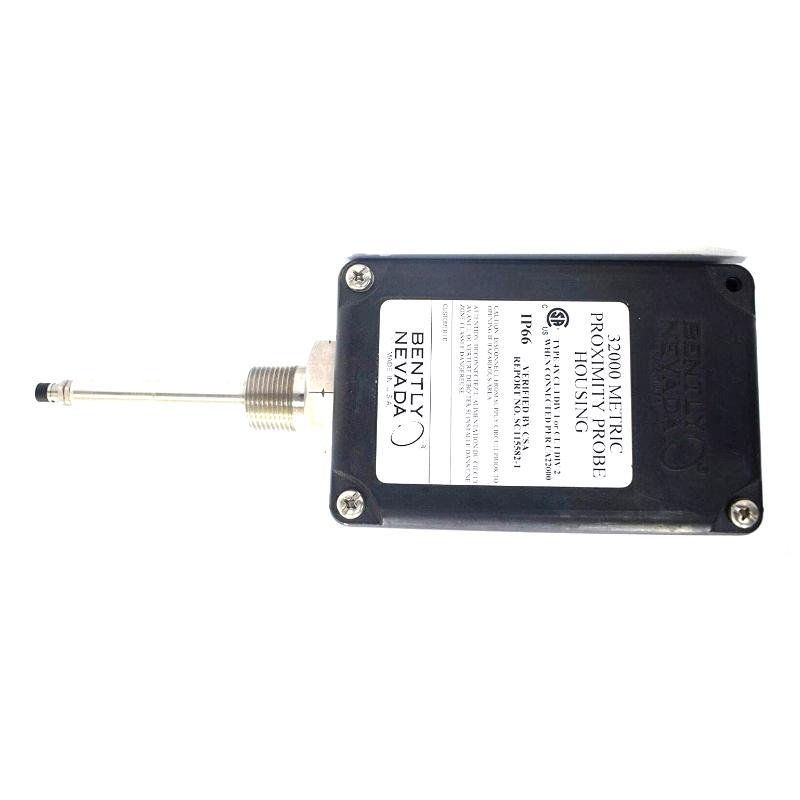

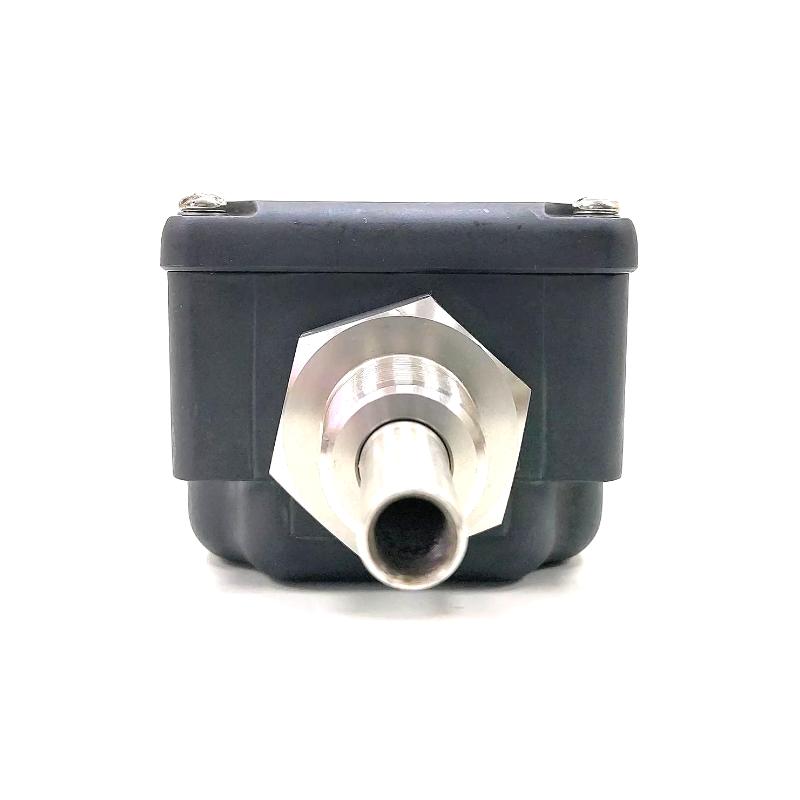

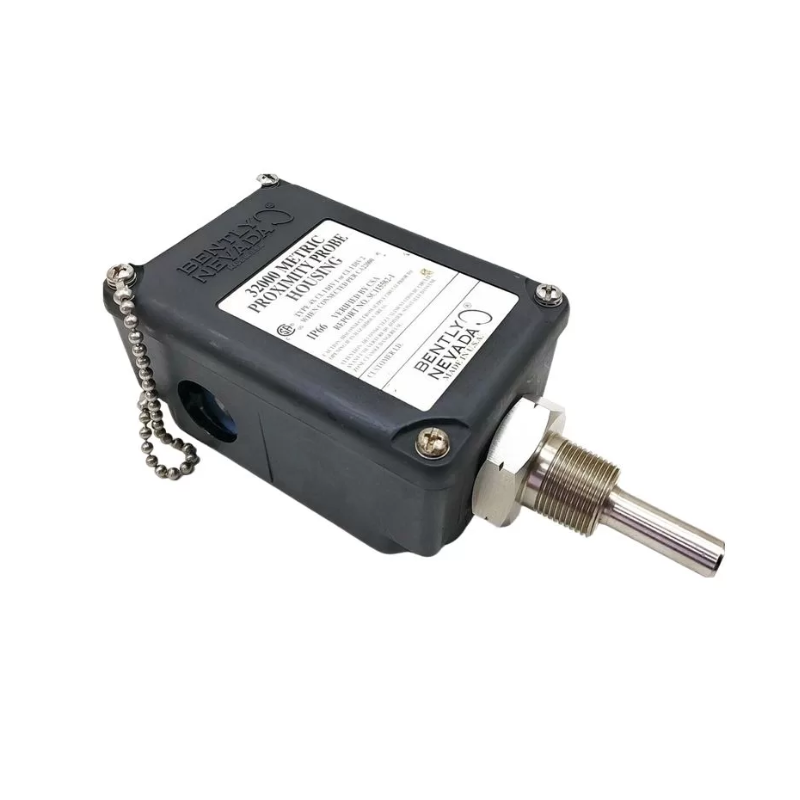

The Bently Nevada 32000-00-00-04-420-01-02 Proximity Probe Housing is engineered to provide reliable mounting and environmental protection for proximity probes installed through machine casings. As part of the proven 31000/32000 Proximity Probe Housing Series, this housing assembly enables convenient external access for probe adjustment or replacement without requiring machine disassembly, helping reduce maintenance time and improve equipment availability.
This configuration is supplied without a pre-installed probe or probe cable, features a 40 mm standoff adapter, 420 mm probe penetration, M25 conduit fitting with two plugs, and a 3/4-14 NPT mounting thread. Constructed from high-strength polyphenylene sulfide (PPS) and corrosion-resistant stainless steel components, it is designed to deliver dependable performance in demanding industrial environments.
Product Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 32000-00-00-04-420-01-02 |
| Product Type | Proximity Probe Housing |
| Series | 31000/32000 Housing Assemblies |
| Installed Probe | Not Included |
| Probe Cable | Not Included |
| Standoff Adapter Length | 40 mm |
| Probe Penetration | 420 mm |
| Conduit Fitting | One M25 Fitting with Two Plugs |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Polyphenylene Sulfide (PPS) with Stainless Steel Components |
| Environmental Protection | NEMA 4X / IP66 (when properly assembled) |
| Operating Temperature | -51°C to +177°C |
| Approximate Dimensions | 510 × 65 × 65 mm |
| Approximate Weight | 1.00 kg |
