Precision Non-Contact Vibration Monitoring

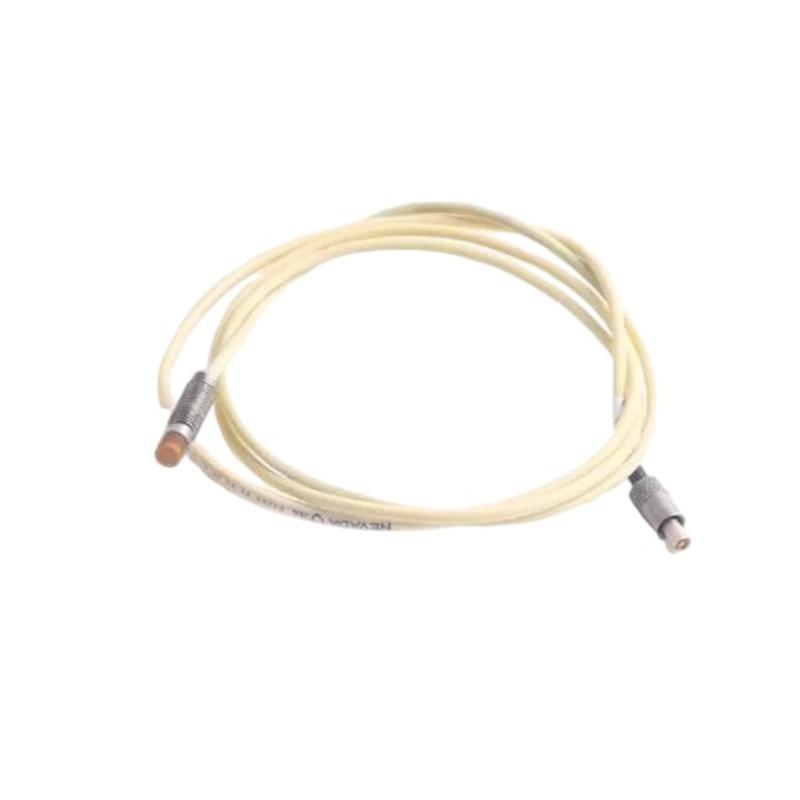

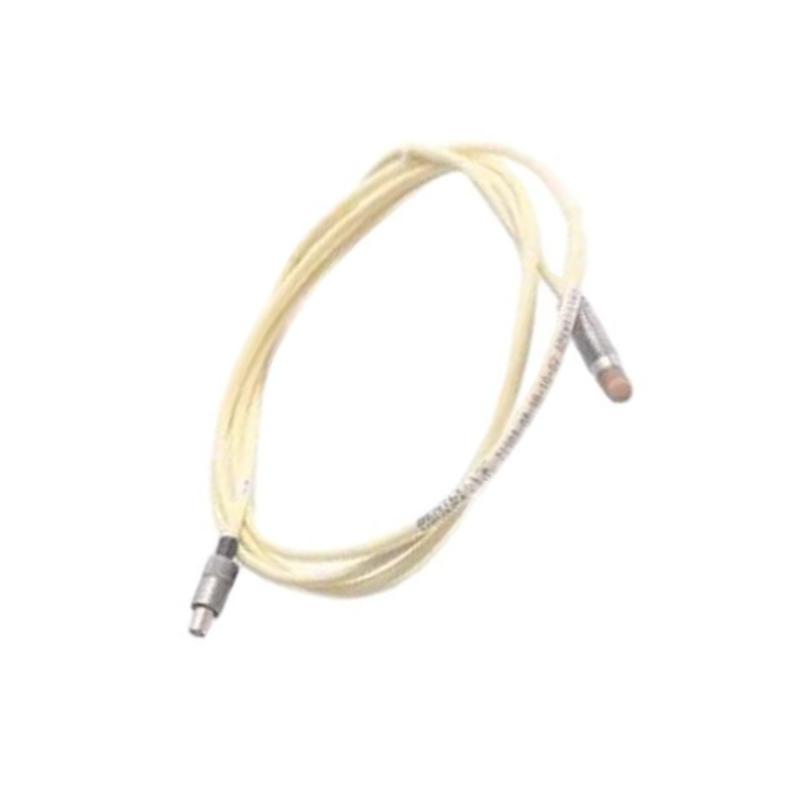

The Bently Nevada 21500-00-08-10-02 7200 5 mm Proximity Probe is designed for accurate non-contact measurement of shaft vibration, displacement, and position in rotating machinery. As part of the trusted 7200 Series Proximity Transducer System, this probe delivers dependable performance for continuous machinery condition monitoring and predictive maintenance.
Featuring a 5 mm probe tip, 1.0 m integral cable, 1/4-28 UNF threaded case, and a miniature male coaxial connector, the probe integrates seamlessly with compatible 7200 Series Proximitor® sensors. Its rugged construction and stable measurement characteristics make it well suited for industrial environments where equipment reliability and operational efficiency are essential.
Product Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21500-00-08-10-02 |
| Product Type | 7200 5 mm Proximity Probe |
| Series | 7200 Proximity Transducer System |
| Probe Diameter | 5 mm |
| Overall Case Length | 0.8 in (20 mm) |
| Integral Cable Length | 1.0 m (39 in) |
| Thread Type | 1/4-28 UNF |
| Connector Type | Miniature Male Coaxial Connector |
| Frequency Response | 0 to 10 kHz |
| Typical Scale Factor | 200 mV/mil (7.87 V/mm) |
| Operating Temperature | -51°C to +177°C |
| Approximate Dimensions | 12 × 2 × 2 cm |
| Approximate Weight | 0.15 kg |
