Reliable Compact Probe for High-Accuracy Machinery Protection

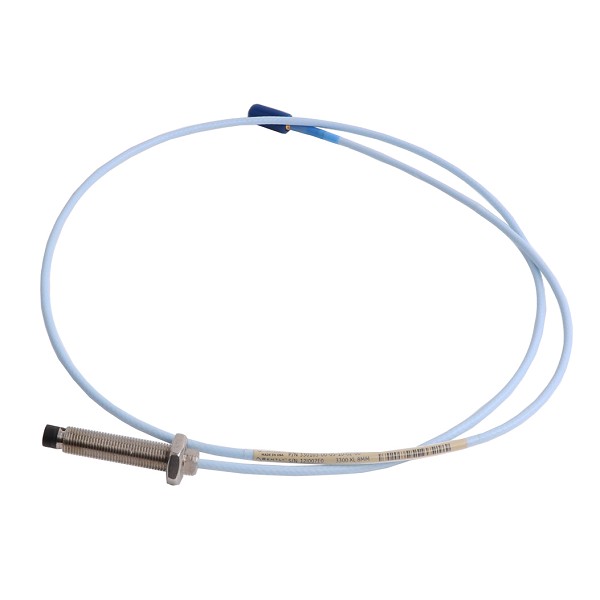

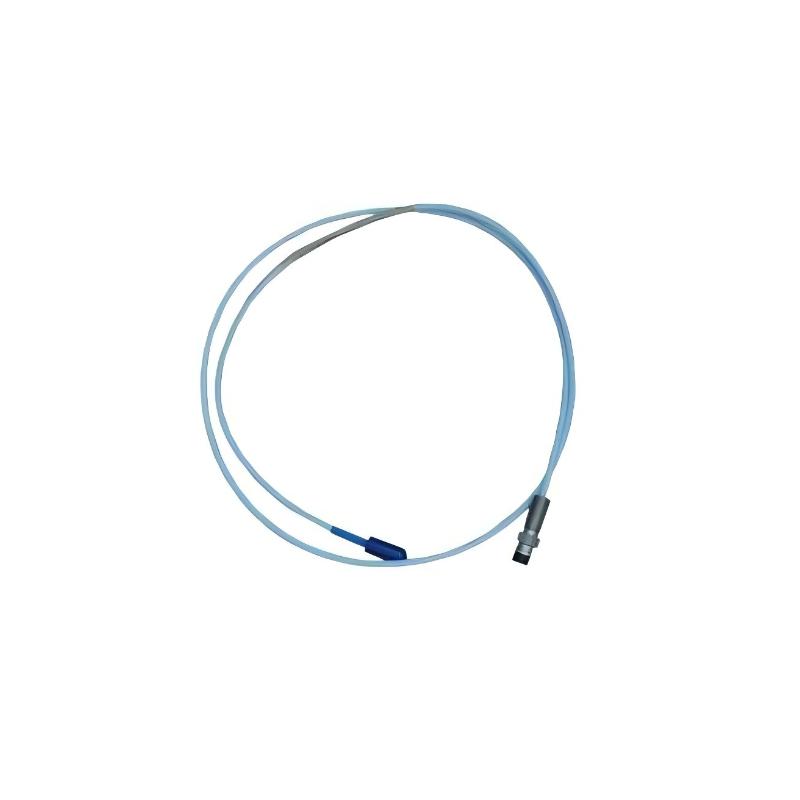

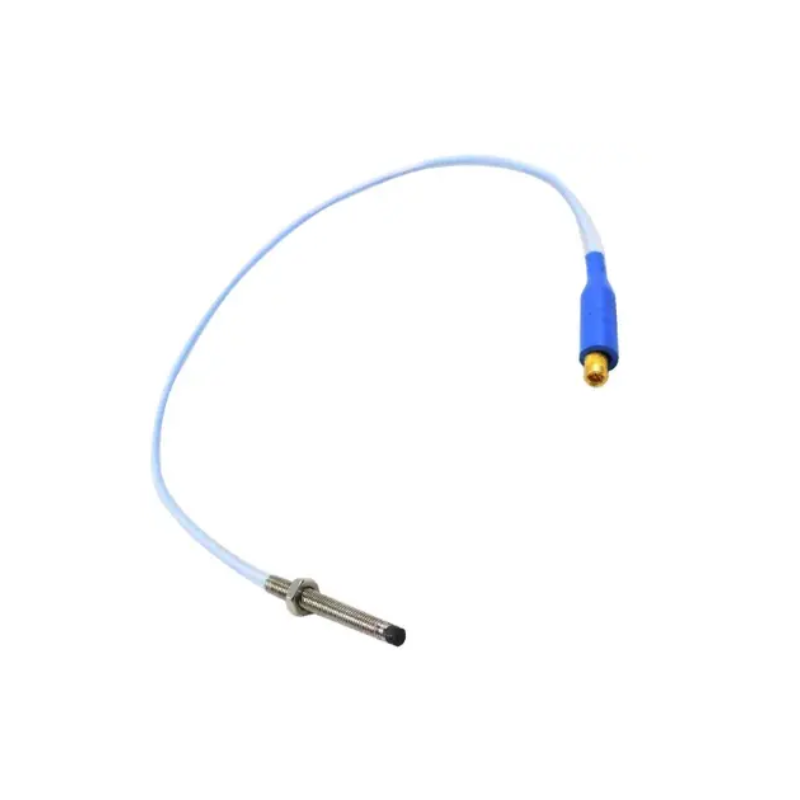

The Bently Nevada 330910-01-08-10-01-05 3300 NSv Proximity Probe is a compact, non-contact eddy current sensor engineered for precise measurement of shaft vibration, radial displacement, axial position, and rotational speed in critical rotating machinery. As a member of the 3300 NSv Proximity Transducer System, this probe is specifically designed for applications where installation space is limited or shaft dimensions are smaller than those supported by standard proximity probes.
This configuration incorporates an armored M10 × 1 threaded probe, a 10 mm unthreaded length, an 80 mm overall case length, a 1.0-meter integral cable, a miniature coaxial ClickLoc™ connector with connector protector, and multiple international approvals. The rugged stainless-steel construction and high-quality sensing elements provide dependable long-term performance in demanding industrial environments while supporting predictive maintenance strategies.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330910-01-08-10-01-05 |
| Product Type | 3300 NSv Proximity Probe |
| Series | 3300 NSv |
| Measurement Technology | Non-contact Eddy Current |
| Probe Thread | M10 × 1 (Armored) |
| Unthreaded Length | 10 mm |
| Overall Case Length | 80 mm |
| Integral Cable Length | 1.0 m (39 in) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector with Connector Protector |
| Cable Type | Standard Cable |
| Agency Approval | Multiple Approvals (CSA / ATEX / IECEx) |
| Housing Material | Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 1.5 mm (60 mils) |
| Typical Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | Up to 10 kHz (Typical) |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 80 mm probe body with 1.0 m integral cable |
| Weight | Approx. 0.33 kg |
