Optimized for Accurate Monitoring in Space-Limited Installations

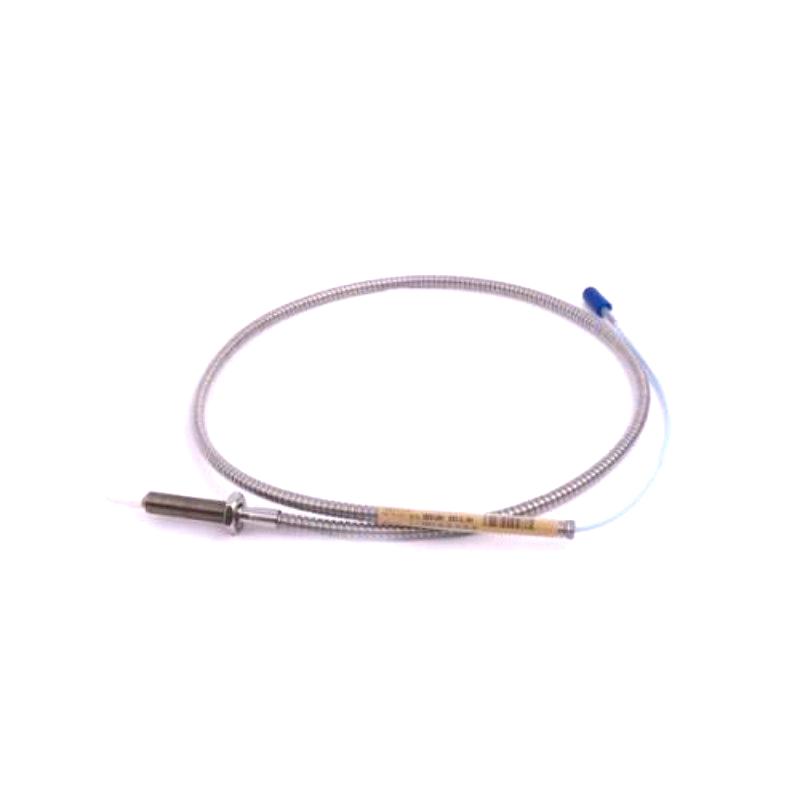

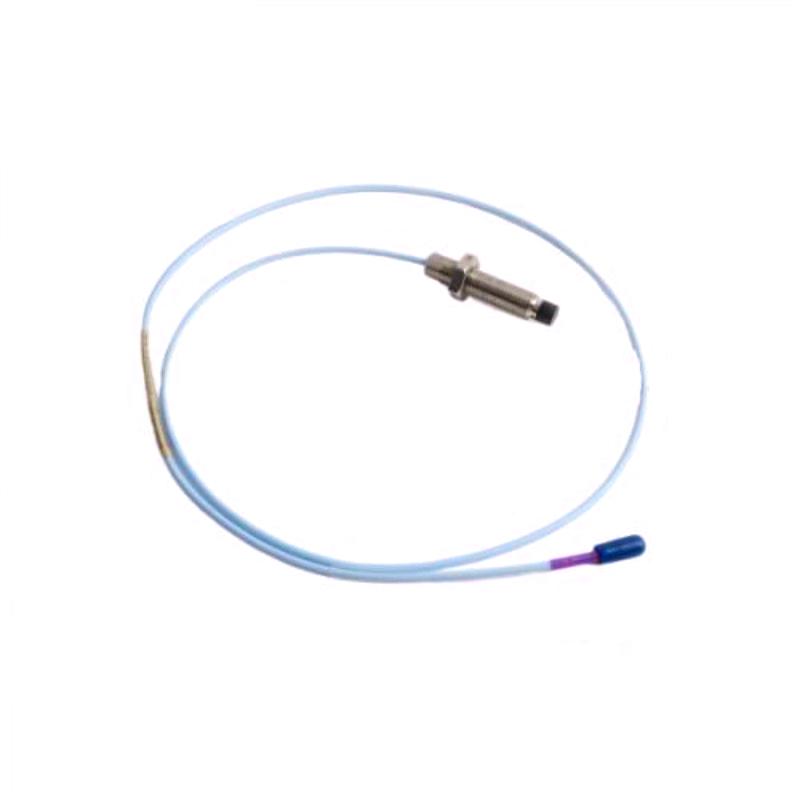

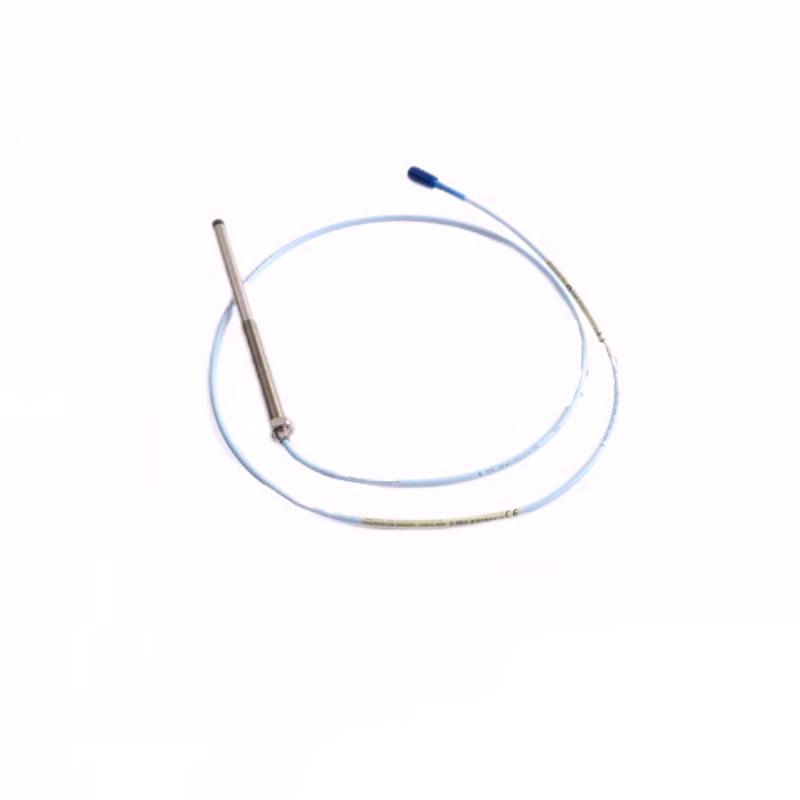

The Bently Nevada 330910-00-20-10-01-00 3300 NSv Proximity Probe is a precision-engineered non-contact eddy current sensor developed for continuous monitoring of shaft vibration, radial displacement, axial position, and rotational speed in compact rotating machinery. As part of the 3300 NSv Proximity Transducer System, this probe is designed for applications where conventional proximity probes cannot be installed due to limited mounting space or small shaft diameters. It delivers stable, repeatable measurements that support predictive maintenance and improve equipment reliability.
This configuration features a 200 mm overall case length, a 1.0-meter integral cable, a miniature coaxial ClickLoc™ connector with connector protector, and the 00 standard industrial approval option. Its stainless-steel housing, durable PPS sensing tip, and robust cable construction provide dependable performance in demanding industrial environments while ensuring long service life.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330910-00-20-10-01-00 |
| Product Type | 3300 NSv Proximity Probe |
| Series | 3300 NSv |
| Measurement Technology | Non-contact Eddy Current |
| Probe Thread | M10 × 1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 200 mm |
| Integral Cable Length | 1.0 m (39 in) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector with Connector Protector |
| Cable Type | Standard Unarmored Cable |
| Agency Approval | 00 (Standard Industrial) |
| Probe Housing Material | Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 1.5 mm (60 mils) |
| Typical Sensitivity | 7.87 V/mm (200 mV/mil) |
| Recommended Gap Setting | 1.0 mm (40 mils) |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz (Typical) |
| Dimensions | Approx. 200 mm probe body with 1.0 m integral cable |
| Weight | Approx. 0.36 kg |
