High-Precision Sensing for Critical Rotating Machinery

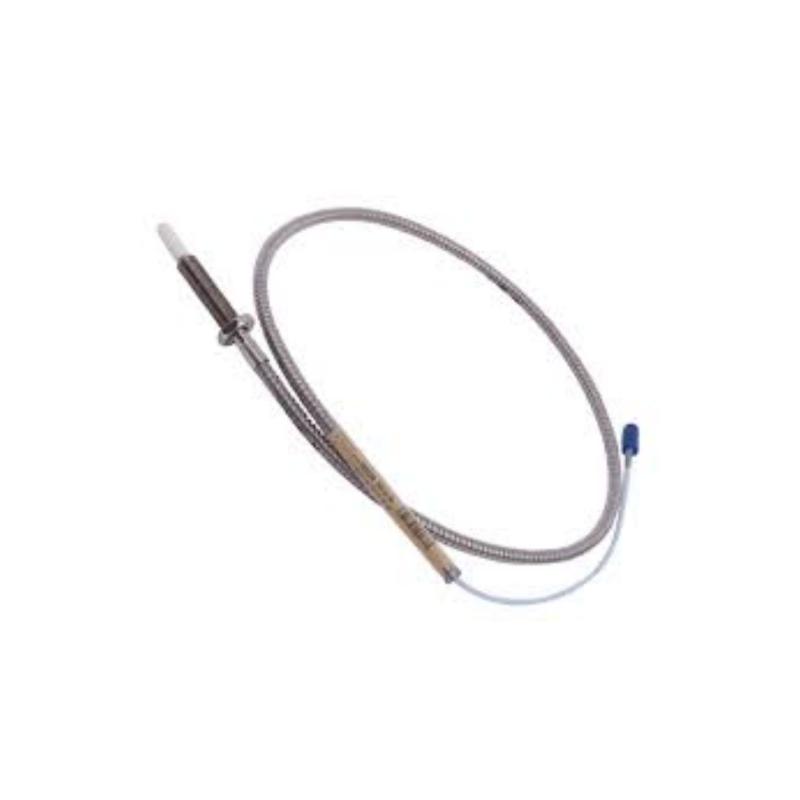

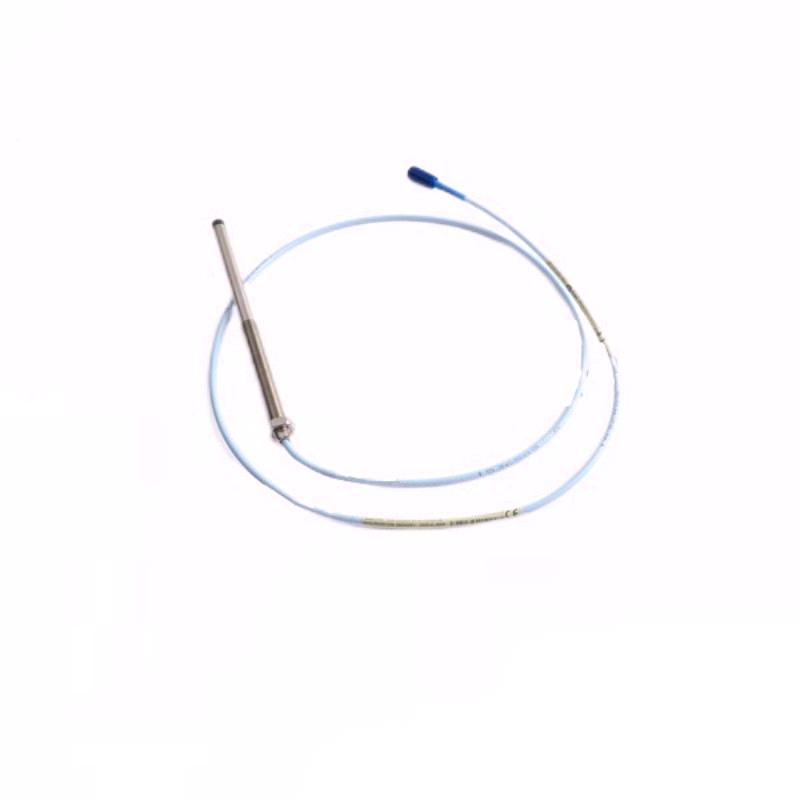

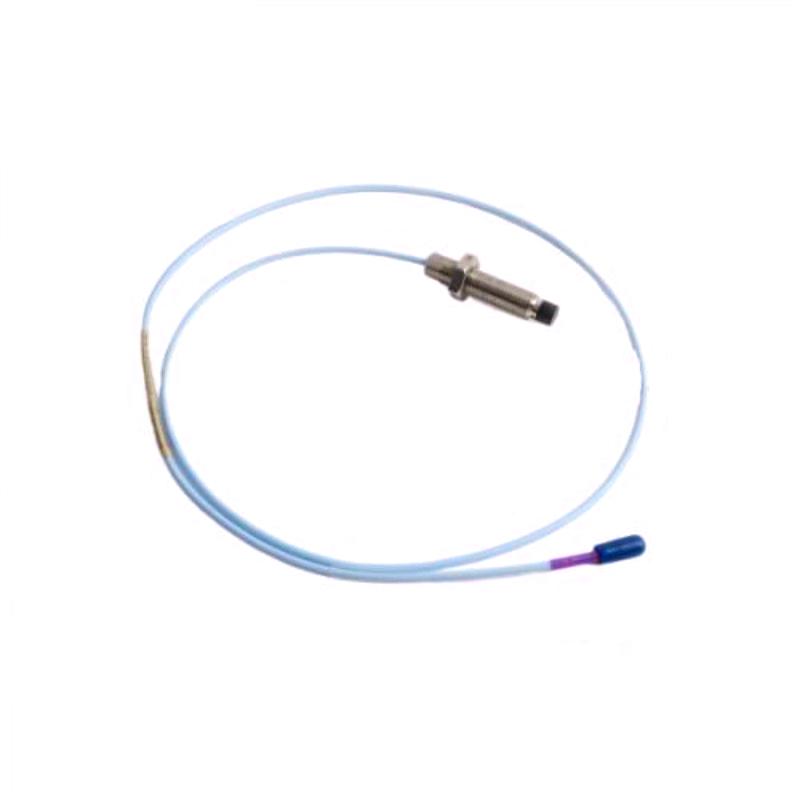

The Bently Nevada 330910-00-50-10-02-00 3300 NSv Proximity Probe is a compact, non-contact eddy current sensor designed for continuous monitoring of shaft vibration, radial displacement, axial position, and speed in rotating machinery. As part of the proven 3300 NSv Proximity Transducer System, this probe delivers accurate, repeatable measurements in applications where installation space is limited or standard proximity probes cannot be accommodated. The NSv Series is especially well suited for small-target applications while maintaining excellent signal stability and long-term reliability.
With a 500 mm overall case length, a 1.0-meter integral cable, a miniature coaxial ClickLoc™ connector, and the 00 standard industrial configuration, this model offers extended mounting flexibility for specialized machinery layouts. Its stainless-steel housing and durable PPS sensing tip provide dependable performance in demanding industrial environments, helping improve equipment availability and support predictive maintenance programs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330910-00-50-10-02-00 |
| Product Type | 3300 NSv Proximity Probe |
| Series | 3300 NSv |
| Measurement Technology | Non-contact Eddy Current |
| Probe Thread | M10 × 1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 500 mm |
| Integral Cable Length | 1.0 m (39 in) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Unarmored Coaxial Cable |
| Agency Approval | 00 (Standard Industrial) |
| Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 1.5 mm (60 mils) |
| Typical Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0–10 kHz (Typical) |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 500 mm probe body with 1.0 m integral cable |
| Weight | Approx. 0.48 kg |
