Engineered for Accurate Monitoring in Compact Industrial Applications

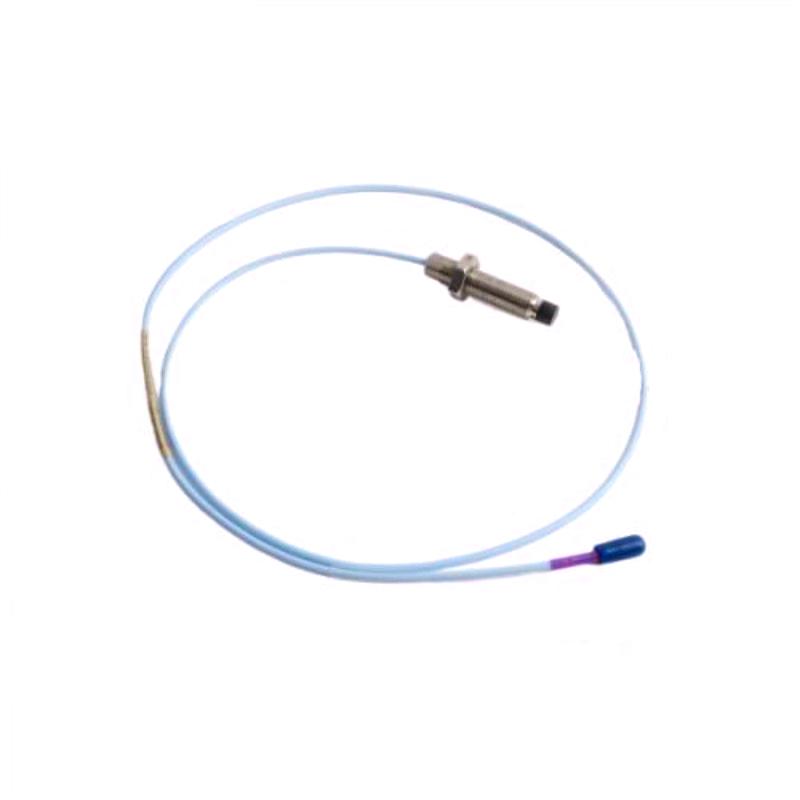

The Bently Nevada 330910-00-13-10-02-00 3300 NSv Proximity Probe is a precision non-contact eddy current sensor designed for continuous monitoring of shaft vibration, radial displacement, axial position, and rotational speed in compact rotating equipment. As a member of the proven 3300 NSv Proximity Transducer System, this probe is optimized for installations where space is limited while maintaining exceptional measurement accuracy and long-term operational stability.
This model features a 130 mm overall case length, a 1.0-meter integral cable, a miniature coaxial ClickLoc™ connector, and the 00 standard industrial approval option. Built with a corrosion-resistant stainless-steel housing and a durable PPS sensing tip, it provides dependable performance in demanding industrial environments and integrates seamlessly with compatible NSv extension cables and Proximitor® sensors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330910-00-13-10-02-00 |
| Product Type | 3300 NSv Proximity Probe |
| Series | 3300 NSv |
| Measurement Technology | Non-contact Eddy Current |
| Probe Thread | M10 × 1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 130 mm |
| Integral Cable Length | 1.0 m (39 in) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Unarmored Coaxial Cable |
| Agency Approval | 00 (Standard Industrial) |
| Probe Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 1.5 mm (60 mils) |
| Typical Sensitivity | 7.87 V/mm (200 mV/mil) |
| Recommended Gap Setting | 1.0 mm (40 mils) |
| Frequency Response | 0–10 kHz (Typical) |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 130 mm probe body with 1.0 m integral cable |
| Weight | Approx. 0.32 kg |
