Precision Monitoring Solution for Compact Rotating Equipment

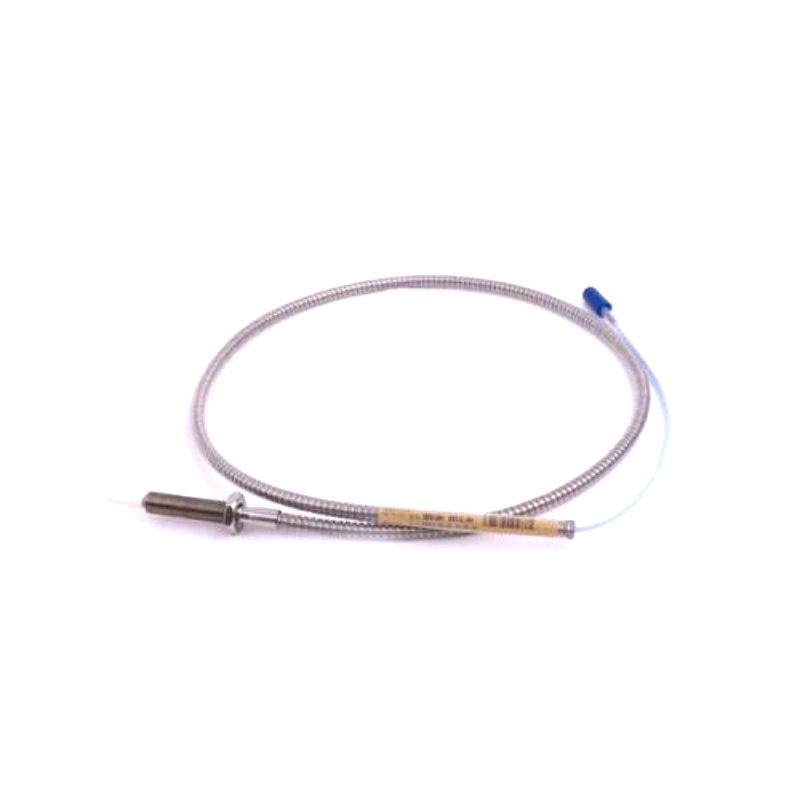

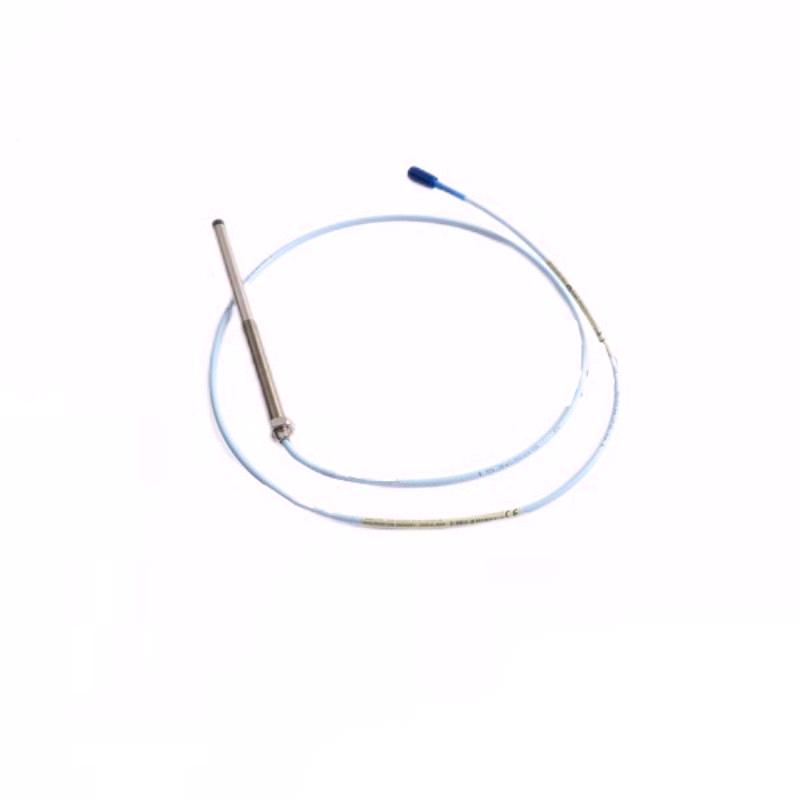

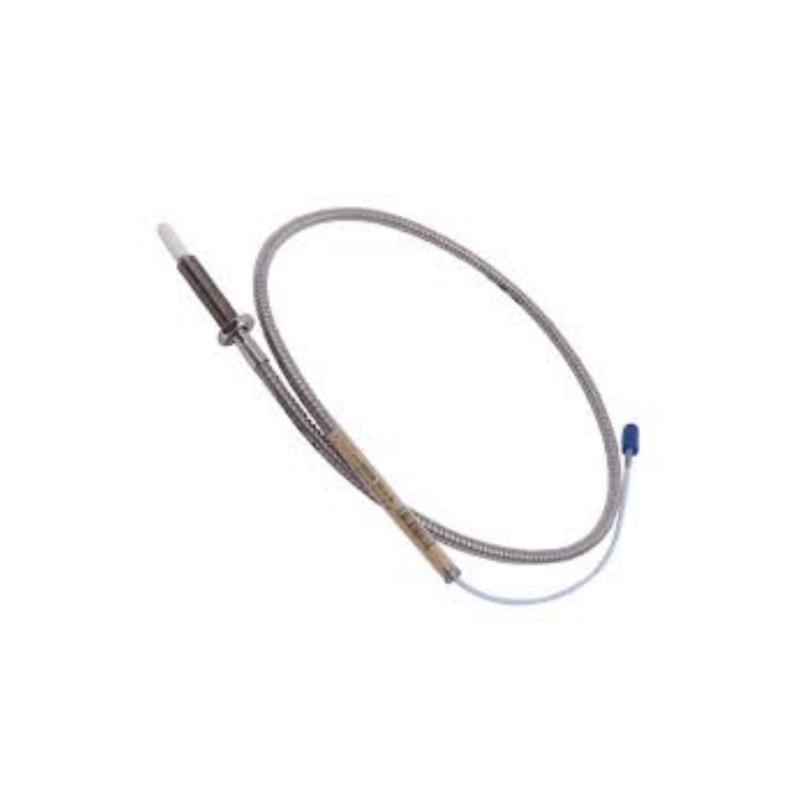

The Bently Nevada 330910-00-18-10-02-00 3300 NSv Proximity Probe is a high-performance non-contact eddy current sensor designed for accurate monitoring of shaft vibration, radial displacement, axial position, and rotational speed in compact rotating machinery. As part of the 3300 NSv Proximity Transducer System, this probe is engineered for applications where installation space is limited while maintaining exceptional measurement accuracy and long-term reliability.
Configured with a 180 mm overall case length, a 1.0-meter integral cable, a miniature coaxial ClickLoc™ connector, and the 00 standard industrial approval option, this model offers excellent installation flexibility and dependable performance in demanding industrial environments. Its stainless-steel housing, PPS sensing tip, and high-quality coaxial cable ensure reliable operation and extended service life.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330910-00-18-10-02-00 |
| Product Type | 3300 NSv Proximity Probe |
| Series | 3300 NSv |
| Measurement Technology | Non-contact Eddy Current |
| Probe Thread | M10 × 1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 180 mm |
| Integral Cable Length | 1.0 m (39 in) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Unarmored Coaxial Cable |
| Agency Approval | 00 (Standard Industrial) |
| Probe Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 1.5 mm (60 mils) |
| Typical Sensitivity | 7.87 V/mm (200 mV/mil) |
| Recommended Gap Setting | 1.0 mm (40 mils) |
| Frequency Response | 0–10 kHz (Typical) |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 180 mm probe body with 1.0 m integral cable |
| Weight | Approx. 0.35 kg |
