Advanced Compact Sensing for Continuous Equipment Condition Monitoring

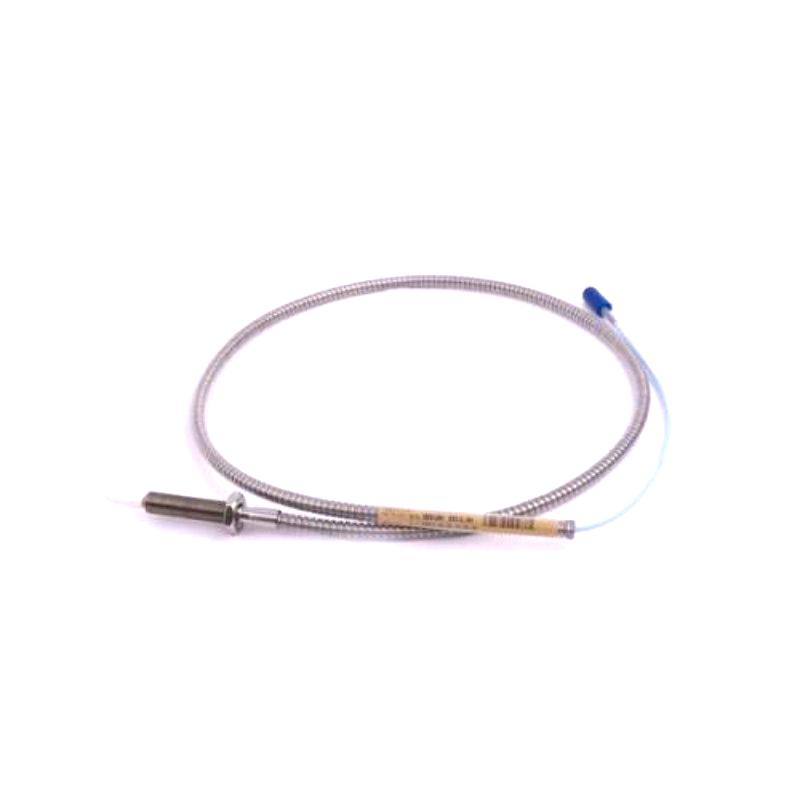

The Bently Nevada 330910-00-11-10-02-05 3300 NSv Proximity Probe is a high-precision non-contact eddy current sensor developed for continuous monitoring of shaft vibration, radial displacement, axial position, and rotational speed in critical rotating machinery. As part of the trusted 3300 NSv Proximity Transducer System, this probe is engineered for applications with limited installation space while delivering outstanding measurement stability and long-term reliability.
Configured with a 110 mm overall case length, a 1.0-meter integral cable, a miniature coaxial ClickLoc™ connector, and multiple international agency approvals, this model provides dependable performance in a wide variety of industrial environments. Its stainless-steel probe housing, durable PPS sensing tip, and high-quality coaxial cable construction help ensure accurate measurements, simplified installation, and extended service life.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330910-00-11-10-02-05 |
| Product Type | 3300 NSv Proximity Probe |
| Series | 3300 NSv |
| Measurement Technology | Non-contact Eddy Current |
| Probe Thread | M10 × 1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 110 mm |
| Integral Cable Length | 1.0 m (39 in) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Coaxial Cable |
| Agency Approval | Multiple Approvals (CSA / ATEX / IECEx) |
| Probe Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 1.5 mm (60 mils) |
| Typical Sensitivity | 7.87 V/mm (200 mV/mil) |
| Recommended Gap Setting | 1.0 mm (40 mils) |
| Frequency Response | 0–10 kHz (Typical) |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 110 mm probe body with 1.0 m integral cable |
| Weight | Approx. 0.32 kg |
