Compact and Reliable Solution for Precision Machinery Monitoring

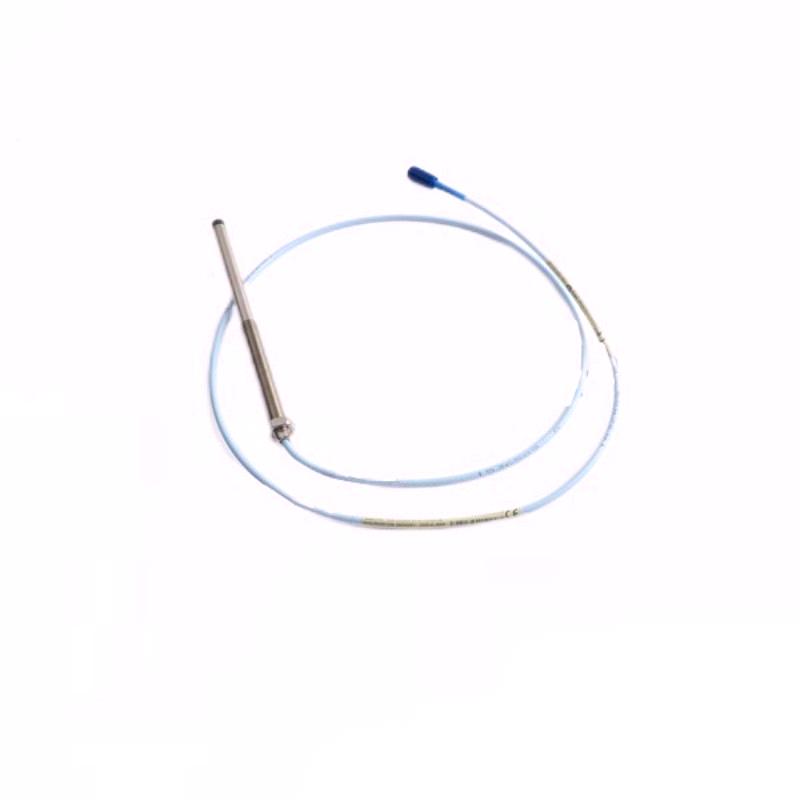

The Bently Nevada 330910-00-10-50-02-05 3300 NSv Proximity Probe is a precision-engineered non-contact eddy current sensor designed to deliver accurate measurements of shaft vibration, radial displacement, axial position, and rotational speed in compact rotating machinery. As part of the proven 3300 NSv Proximity Transducer System, this probe is optimized for installations where limited mounting space or small shaft diameters require a compact sensing solution without compromising measurement performance.
Featuring a 100 mm probe case length, a 5.0-meter integral cable, a miniature coaxial ClickLoc™ connector, and international agency approvals, this model provides dependable operation across a wide range of industrial environments. Its corrosion-resistant stainless-steel housing, durable PPS probe tip, and high-quality coaxial cable construction contribute to long service life, helping maintenance teams improve equipment reliability while reducing maintenance costs.
Product Overview
The 330910-00-10-50-02-05 is designed to integrate seamlessly with compatible 3300 NSv extension cables and Proximitor® sensors, providing a complete machinery condition monitoring solution. Its compact design is especially suitable for equipment with restricted installation space, allowing engineers to obtain precise vibration data that supports predictive maintenance and efficient asset management.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330910-00-10-50-02-05 |
| Product Type | 3300 NSv Proximity Probe |
| Series | 3300 NSv |
| Measurement Technology | Non-contact Eddy Current |
| Probe Thread | M10 × 1 |
| Probe Case Length | 100 mm |
| Integral Cable Length | 5.0 m (16.4 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Construction | Standard Unarmored Coaxial Cable |
| Probe Housing Material | Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 1.5 mm (60 mils) |
| Typical Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz (Typical) |
| Certifications | CSA, ATEX, IECEx |
| Dimensions | Approx. 100 mm probe body with 5.0 m integral cable |
| Weight | Approx. 0.44 kg |
