Precision Monitoring Solution for Critical Rotating Machinery

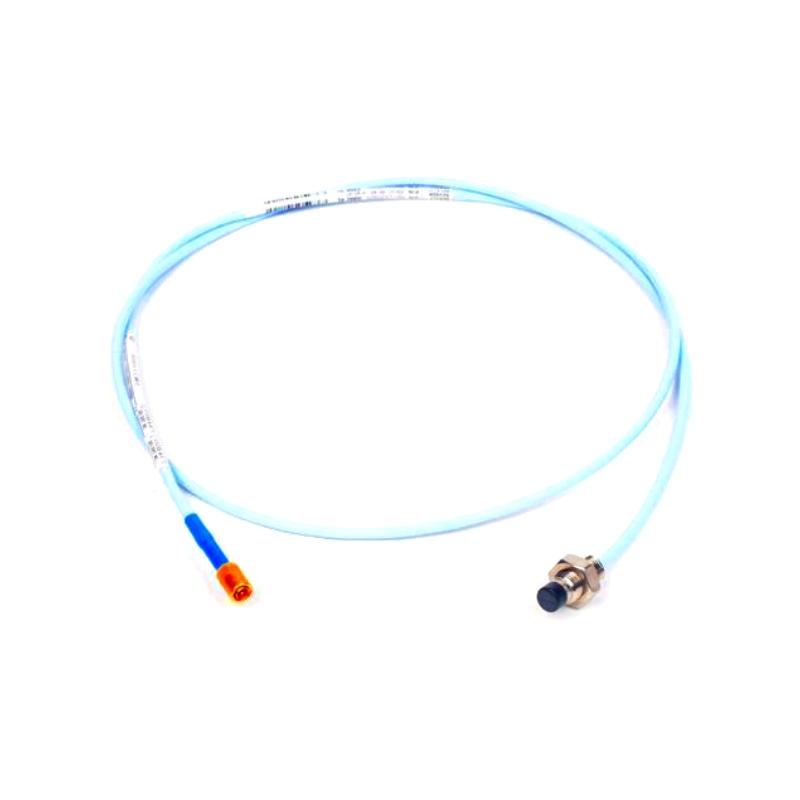

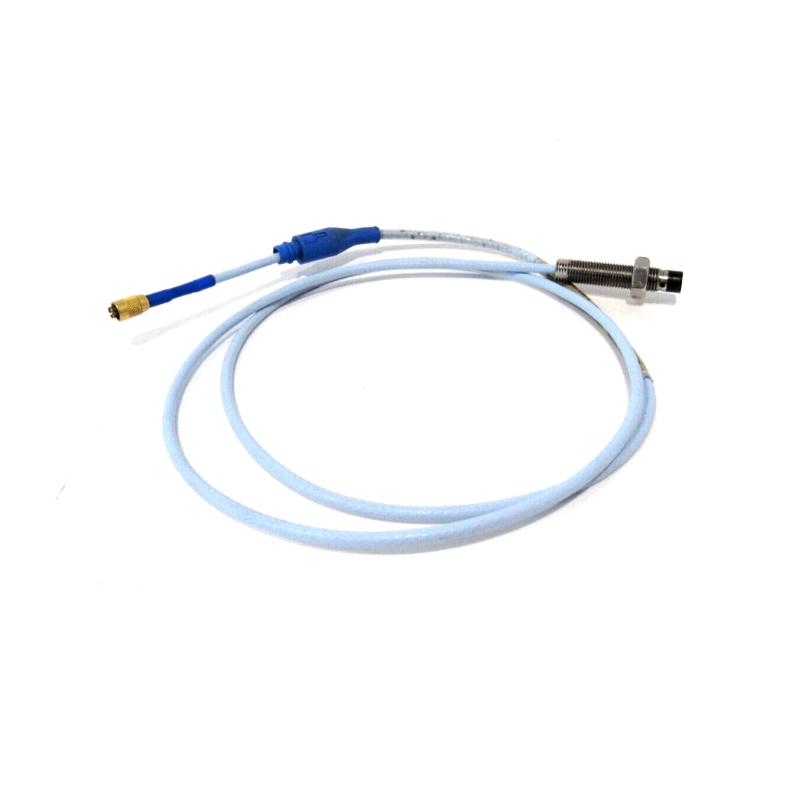

The Bently Nevada 330101-00-96-05-02-00 3300 XL 8 mm Proximity Probe is a high-performance eddy current sensor designed for continuous, non-contact measurement of shaft vibration, radial displacement, axial position, and speed in industrial rotating equipment. As part of the trusted 3300 XL 8 mm Proximity Transducer System, this probe delivers stable and accurate signals that support advanced condition monitoring and predictive maintenance strategies in demanding environments.
With an extended 9.6-inch overall case length, a 0.5-meter integral cable, and a miniature coaxial ClickLoc™ connector, this model is optimized for installations requiring deeper mounting reach and compact cable routing. The 02 connector configuration ensures secure electrical connection, while the 00 approval option indicates a standard industrial version without hazardous-area certification. Built with stainless-steel housing and a PPS sensing tip, the probe offers strong resistance to heat, vibration, and corrosive industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-96-05-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Technology | Eddy Current Proximity Sensing |
| Probe Diameter | 8 mm |
| Mounting Thread | 3/8-24 UNF |
| Unthreaded Length | 0 in (Fully threaded) |
| Overall Case Length | 9.6 in (243.8 mm) |
| Integral Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard, unarmored |
| Agency Approval | 00 (Standard industrial) |
| Housing Material | Stainless steel (AISI 303/304) |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Measurement Range | 2.0 mm (typical linear range) |
| Operating Temperature | -52°C to +177°C |
| Weight | Approx. 0.80 kg |
