Built for Reliable Machine Protection and Precision Monitoring

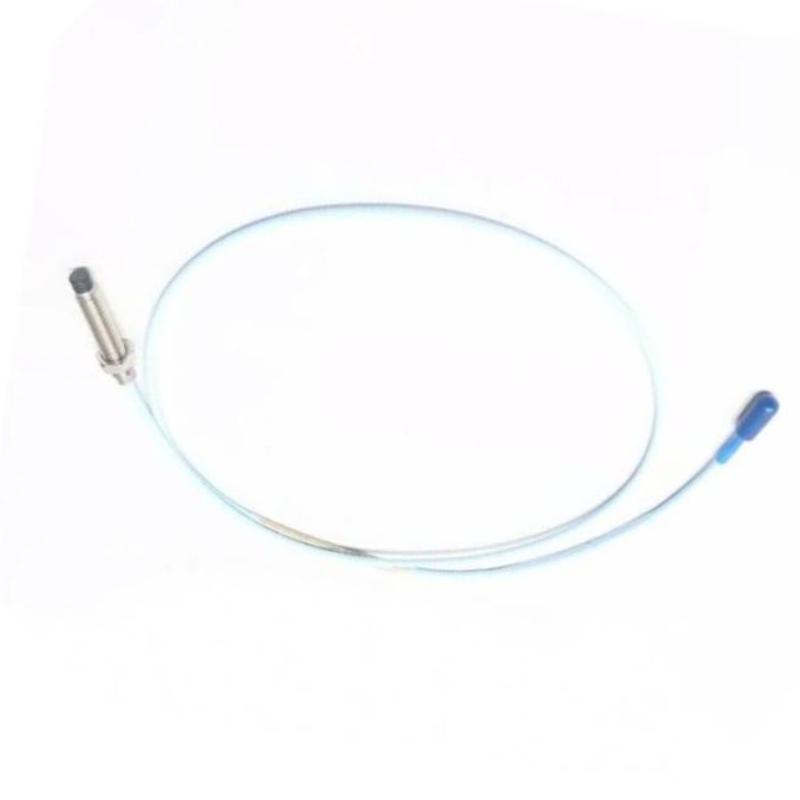

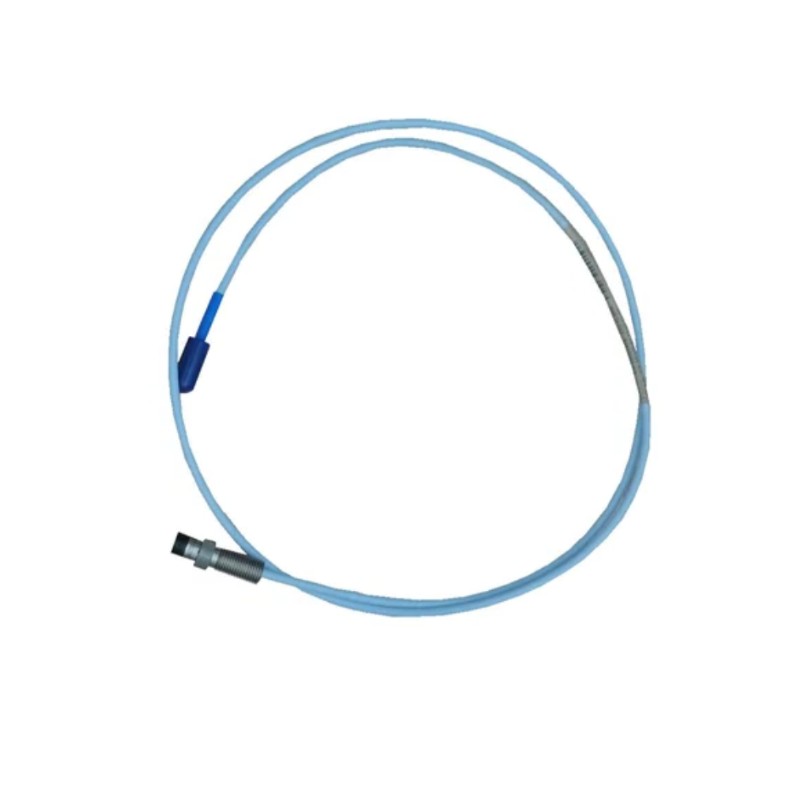

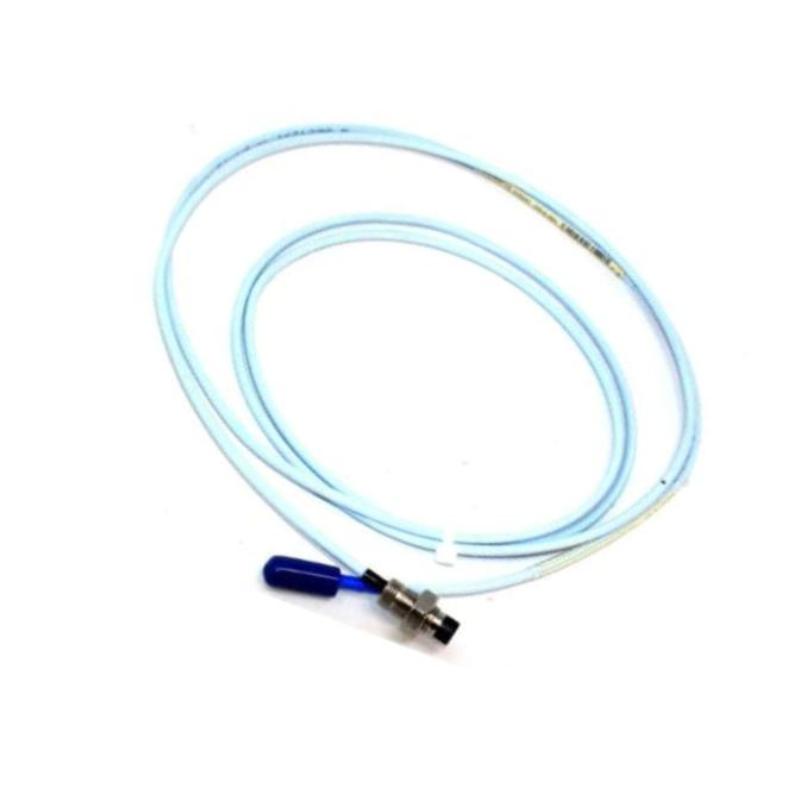

The Bently Nevada 330101-00-76-05-01-00 3300 XL 8 mm Proximity Probe is a premium non-contact eddy current sensor engineered to deliver accurate vibration, displacement, and shaft position measurements for critical rotating machinery. As an essential component of the 3300 XL 8 mm Proximity Transducer System, this probe offers outstanding measurement stability, rugged durability, and seamless compatibility with matching extension cables and Proximitor® sensors. It is widely selected for predictive maintenance programs where dependable condition monitoring is essential for maximizing equipment uptime.
This configuration features a 7.6-inch overall case length, a 0.5-meter standard integral cable, and a miniature coaxial ClickLoc™ connector with connector protector. The 00 approval option represents the standard configuration without additional hazardous-area certifications, making it suitable for general industrial applications. Manufactured with a corrosion-resistant stainless-steel housing and a robust PPS probe tip, the probe maintains consistent performance even under demanding operating conditions. Complete component interchangeability within the 3300 XL system also simplifies maintenance and reduces spare parts inventory.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-76-05-01-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Mounting Thread | 3/8-24 UNF |
| Unthreaded Length | 0 in (Fully Threaded) |
| Overall Case Length | 7.6 in (193.0 mm) |
| Integral Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector with Connector Protector |
| Cable Type | Standard, Unarmored |
| Agency Approval | Standard (00) |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Measurement Functions | Shaft Vibration, Axial Position, Radial Position, Speed and Phase Reference |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 193.0 mm probe body with 0.5 m cable |
| Weight | Approx. 0.35 kg |
