Designed for Accurate Monitoring of Critical Rotating Assets

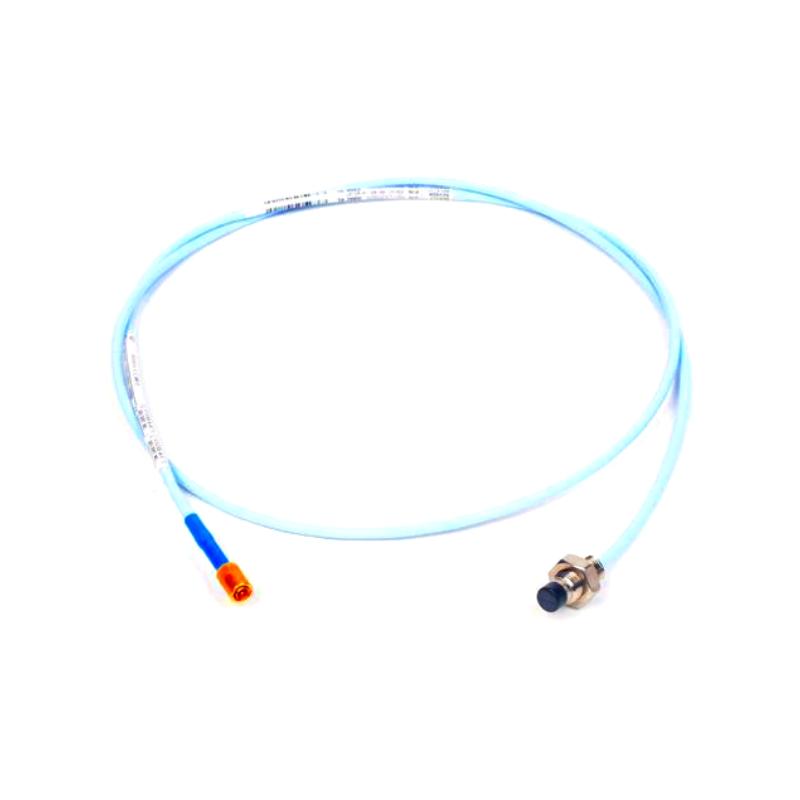

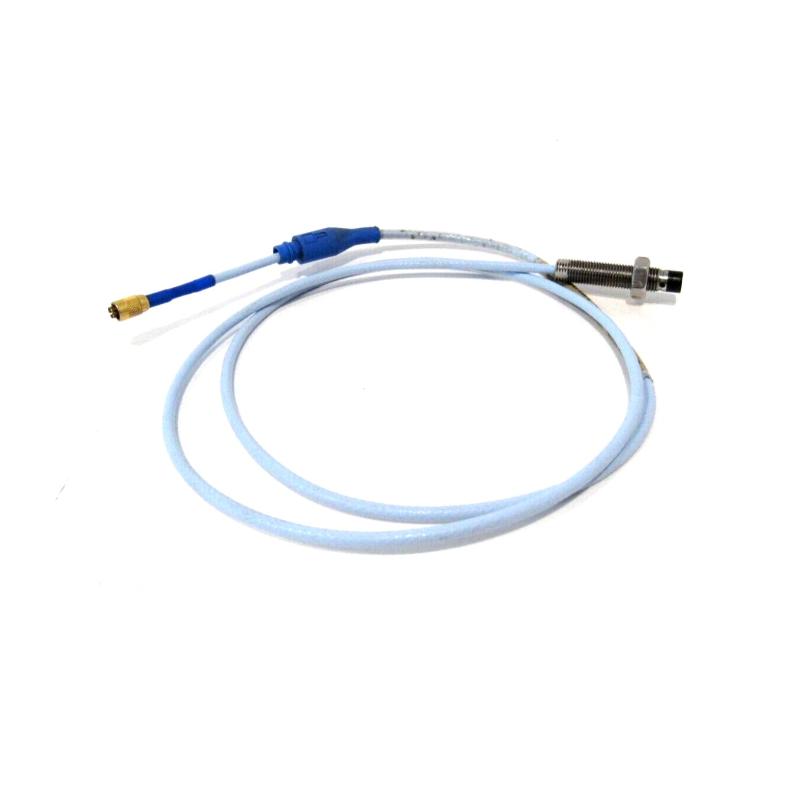

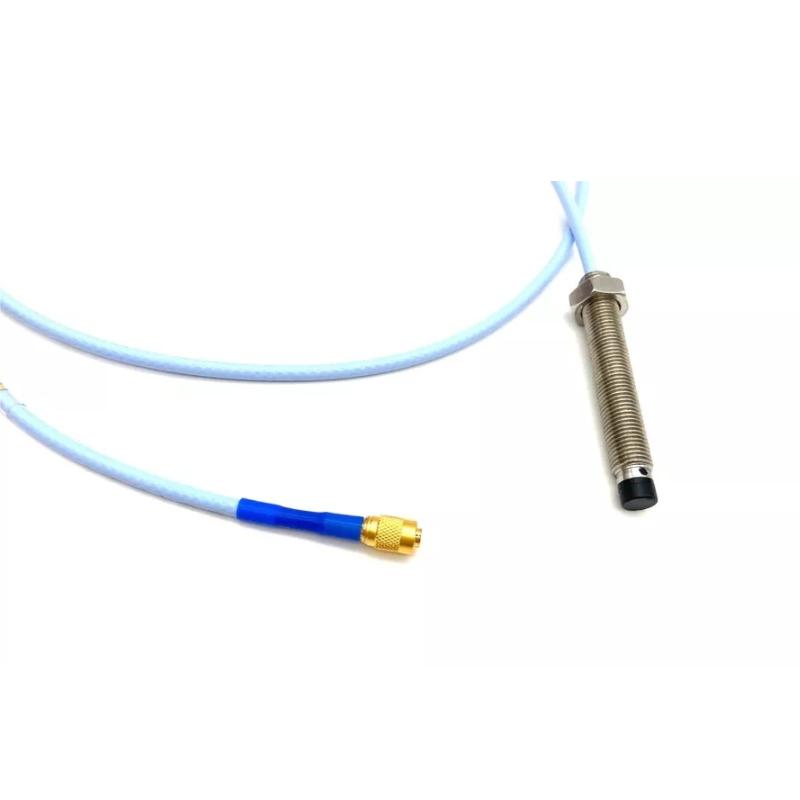

The Bently Nevada 330101-00-88-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision non-contact eddy current sensor engineered for continuous vibration and shaft position monitoring in mission-critical rotating equipment. As a key component of the 3300 XL 8 mm Proximity Transducer System, this probe delivers stable, repeatable measurements of shaft vibration, radial displacement, axial position, and speed reference, enabling maintenance teams to maximize equipment reliability and minimize unexpected downtime. The 3300 XL platform is widely recognized for its high accuracy, temperature stability, and complete component interchangeability across the transducer system.
This configuration features an 8.8-inch overall case length, a 1.0-meter integral cable, a miniature coaxial ClickLoc™ connector, and the 05 agency approval option, providing CSA, ATEX, and IECEx certifications for installations requiring hazardous-area compliance. Its rugged stainless-steel housing and durable PPS sensing tip ensure reliable operation in harsh industrial environments, making it an excellent choice for predictive maintenance and machinery protection applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-88-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Mounting Thread | 3/8-24 UNF |
| Unthreaded Length | 0 in (Fully Threaded) |
| Overall Case Length | 8.8 in (223.5 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard, Unarmored |
| Agency Approval | CSA, ATEX, IECEx |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 223.5 mm probe body with 1.0 m cable |
| Weight | Approx. 0.36 kg |
