Engineered for Continuous Machinery Health Monitoring

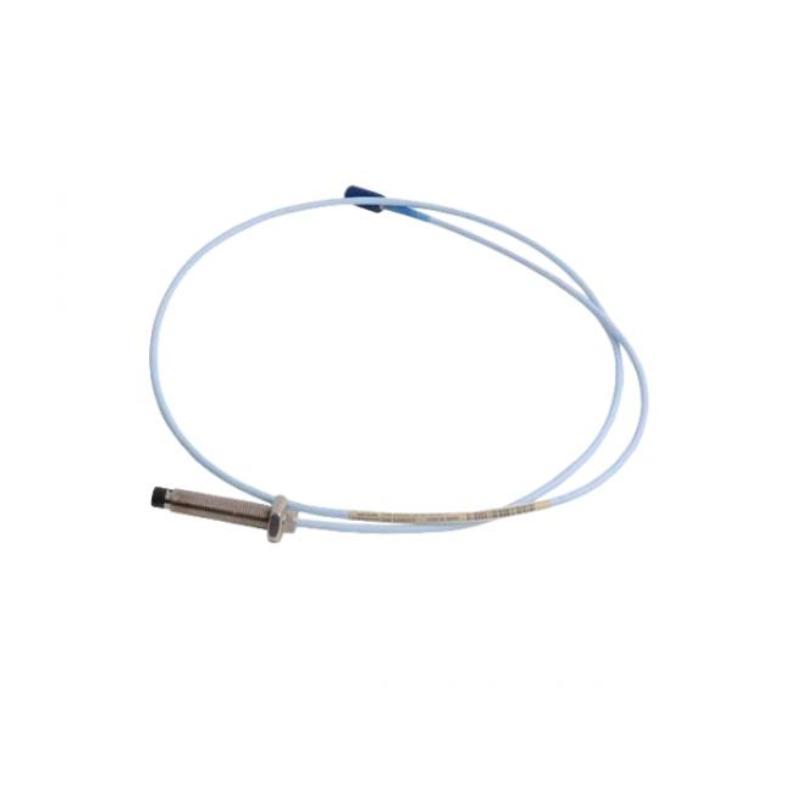

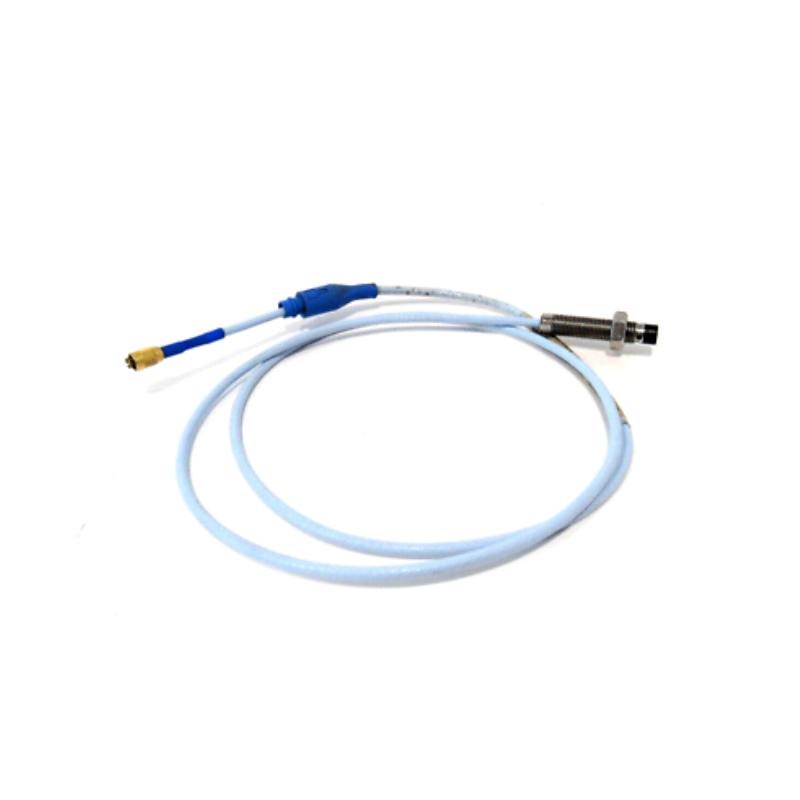

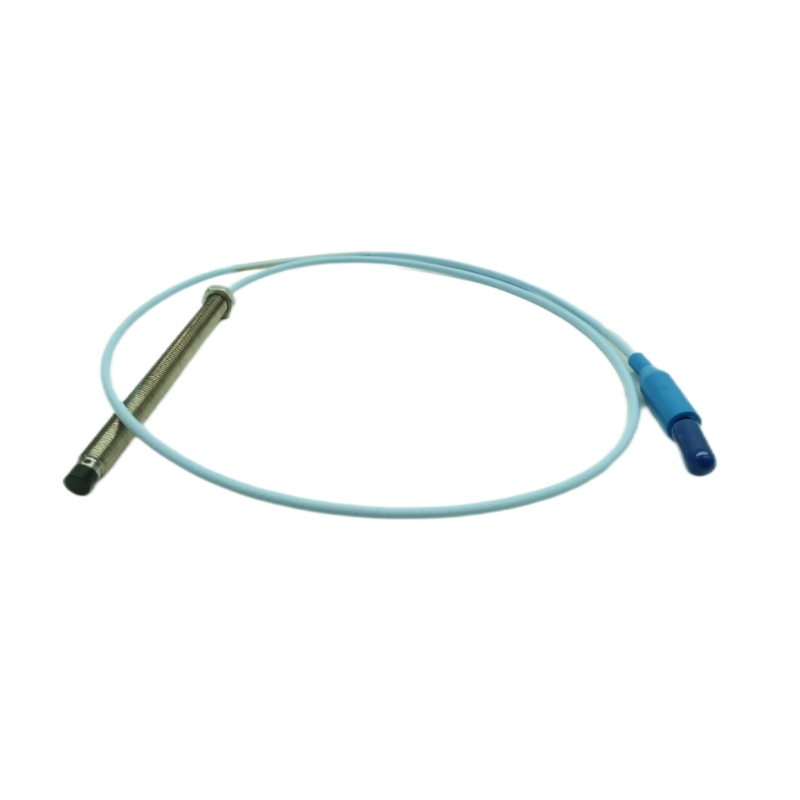

The Bently Nevada 330101-00-80-10-02-00 3300 XL 8 mm Proximity Probe is a precision non-contact eddy current sensor designed to provide reliable shaft vibration, radial displacement, axial position, and speed measurements for critical rotating machinery. As part of the renowned 3300 XL 8 mm Proximity Transducer System, this probe delivers outstanding measurement accuracy, excellent environmental stability, and long-term operational reliability for demanding industrial applications.
This configuration features an 8.0-inch overall case length, a 1.0-meter integral cable, and a miniature coaxial ClickLoc™ connector for secure installation and dependable signal transmission. The 00 agency approval option identifies the standard industrial version without additional hazardous-area certifications, making it ideal for general-purpose machinery monitoring systems. Manufactured with a corrosion-resistant AISI 303/304 stainless-steel housing and a durable PPS sensing tip, the probe is built to withstand harsh operating environments while maintaining exceptional measurement stability throughout its service life.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-80-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Mounting Thread | 3/8-24 UNF |
| Unthreaded Length | 0 in (Fully Threaded) |
| Overall Case Length | 8.0 in (203.2 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard, Unarmored |
| Agency Approval | Standard (00) |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Measurement Functions | Shaft Vibration, Radial Position, Axial Position, Speed and Phase Reference |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 203.2 mm probe body with 1.0 m cable |
| Weight | Approx. 0.33 kg |
