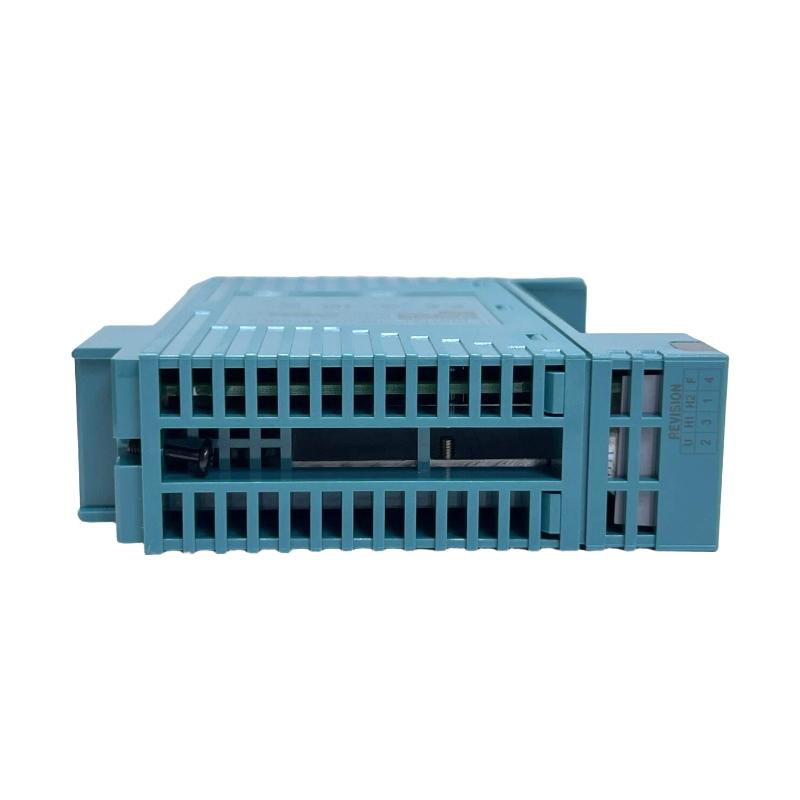

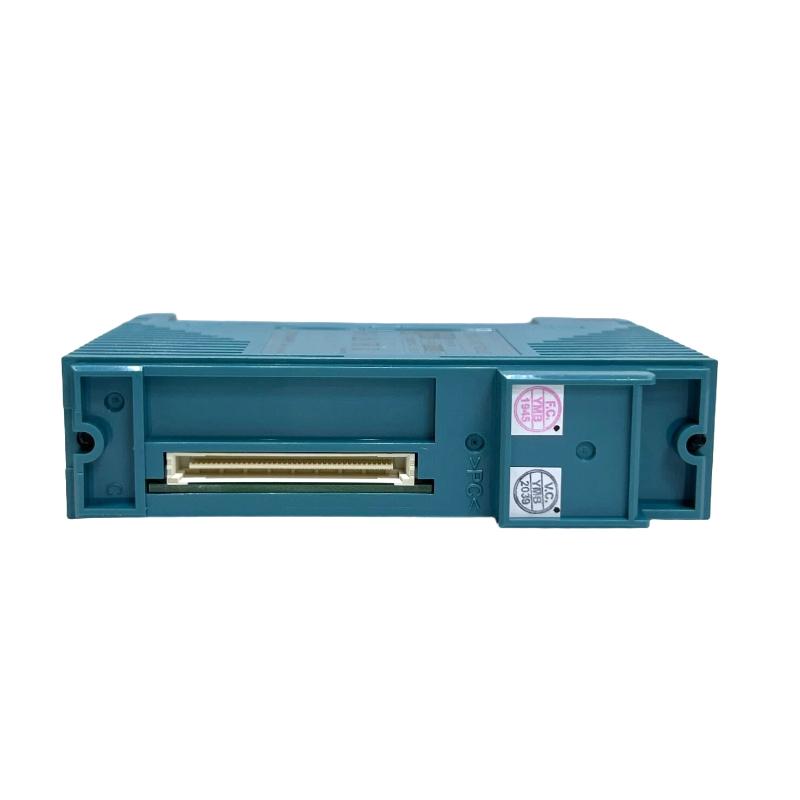

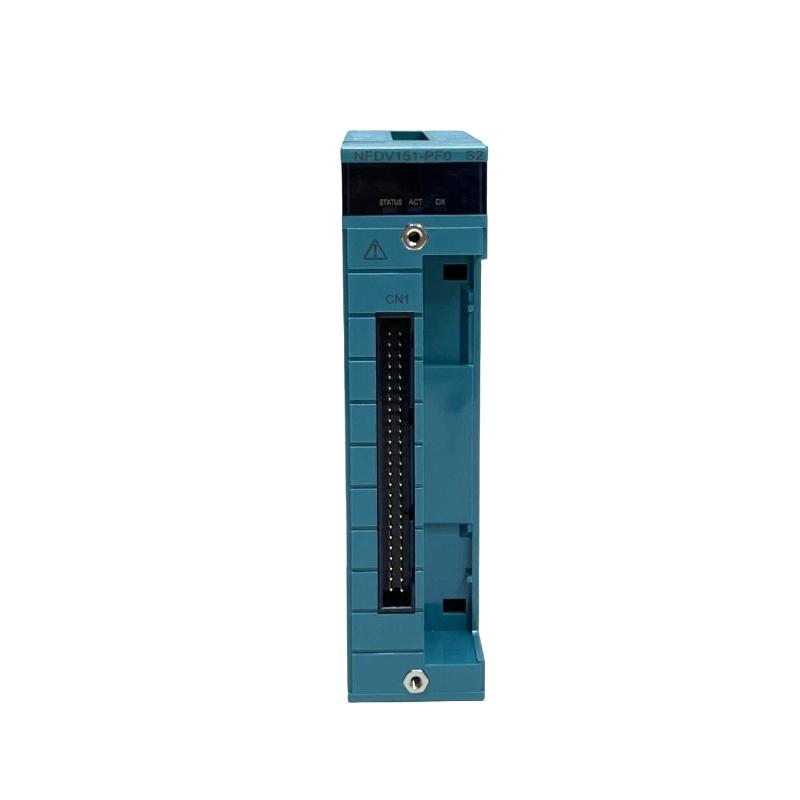

Yokogawa NFDV151-P10/CCC01 Digital Input Module

Name: Yokogawa NFDV151-P10/CCC01 Digital Input Module
Brand: Yokogawa Electric
SKU: 8131
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:NFDV151-P10/CCC01
Product Origin:Japan
Product Dimensions:130 × 107.5 × 32.8 mm
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Introduction

The Yokogawa NFDV151-P10/CCC01 Digital Input Module is a high-density, industrial-grade solution designed for reliable ON/OFF signal acquisition in distributed control systems. Engineered for seamless integration with Yokogawa STARDOM and FCN controllers, this module provides fast, stable input detection with advanced diagnostics. Its robust isolation design and flexible sink/source compatibility make it a dependable choice for complex automation environments where signal accuracy and system safety are critical.

Technical Specifications

Parameter	Specification
Model	NFDV151-P10/CCC01
Module Type	Digital Input Module
Input Channels	32 isolated channels
Input Type	Sink / Source compatible
Rated Input Voltage	24 V DC
Input Voltage Range	18–26.4 V DC
Input OFF Voltage	≤ 5.0 V DC
Input Current	4.1 mA ±20% per channel
Max Instantaneous Voltage	30 V DC
Response Time	≤ 8 ms
Minimum ON Detection	20 ms
Max Switching Frequency	25 Hz
Isolation Voltage	2000 V AC (system), 500 V AC (between groups)
Current Consumption	500 mA @ 5 V DC
Operating Temperature	0°C to +40°C
Dimensions (H×W×D)	130 × 107.5 × 32.8 mm
Weight	Approx. 0.3 kg
Connection Type	Pressure clamp terminal / MIL connector
Special Option	CCC01 (connector cover configuration)

Application Scenarios

This module is widely used in industrial environments where reliable digital signal acquisition is essential for process control and monitoring:

Oil & gas production and refining systems
Chemical processing plants
Power generation and utility automation
Manufacturing production lines
Safety instrumented systems (SIS)

Its high channel density makes it especially suitable for systems requiring large volumes of discrete input signals within a compact footprint.

Key Benefits

High Channel Density: Supports 32 inputs, reducing cabinet space requirements
Flexible Input Compatibility: Works with both sink and source signals for versatile integration
Fast Signal Response: Ensures real-time monitoring with minimal latency
Strong Electrical Isolation: Enhances system safety and minimizes interference
Advanced Diagnostics: Pushbutton edge detection and LED indicators simplify troubleshooting
Industrial Reliability: Designed for stable operation in demanding environments

Technical FAQs

1. What is the primary function of this module?
It captures digital ON/OFF signals from field devices and converts them into data for the control system.

2. How many input channels are available?
The module provides 32 isolated digital input channels.

3. What input types are supported?
Both sink and source input configurations are supported.

4. What is the typical response time?
The input response time is 8 ms or less for status signals.

5. Does it support pushbutton detection?
Yes, it includes edge detection and counting functions for pushbutton inputs.

6. What voltage level does it operate on?
It operates with a nominal input of 24 V DC.

7. How does it ensure signal reliability?
Through high isolation voltage and surge protection mechanisms.

8. Is it suitable for safety systems?
Yes, it is commonly used in safety instrumented systems due to its reliability.

9. What wiring options are available?
It supports pressure clamp terminals or MIL connector cables.

10. What does the CCC01 suffix represent?
It refers to a specific connector cover or configuration option for installation flexibility.
