Enhance Equipment Reliability with Precision Shaft Monitoring

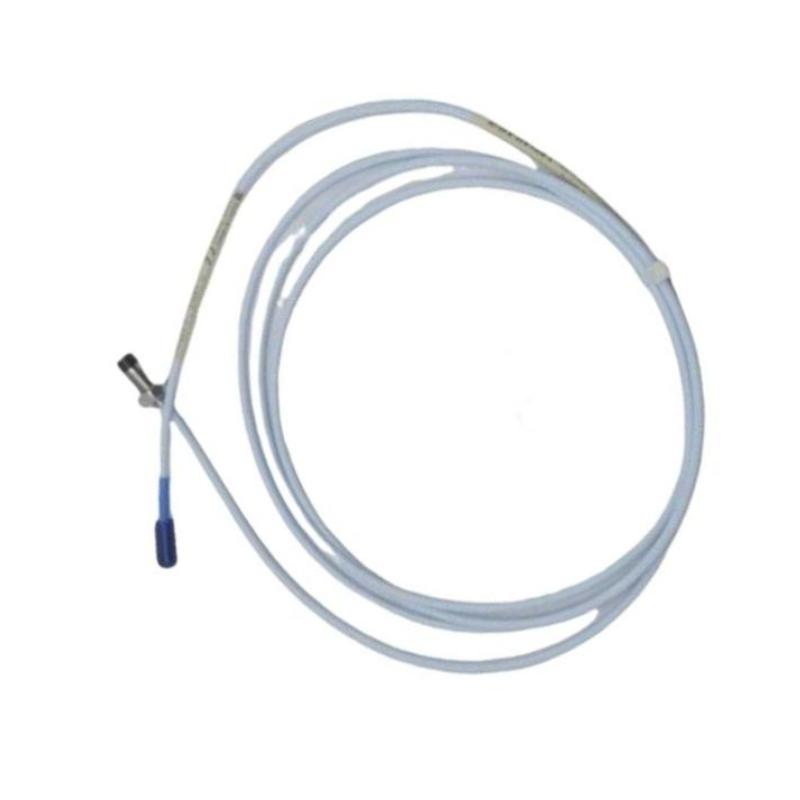

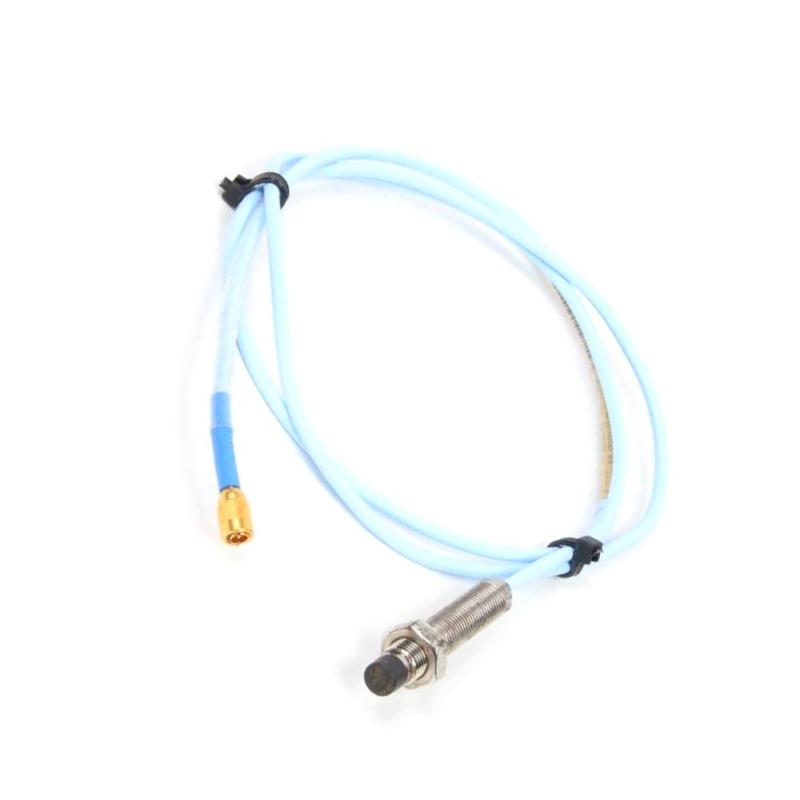

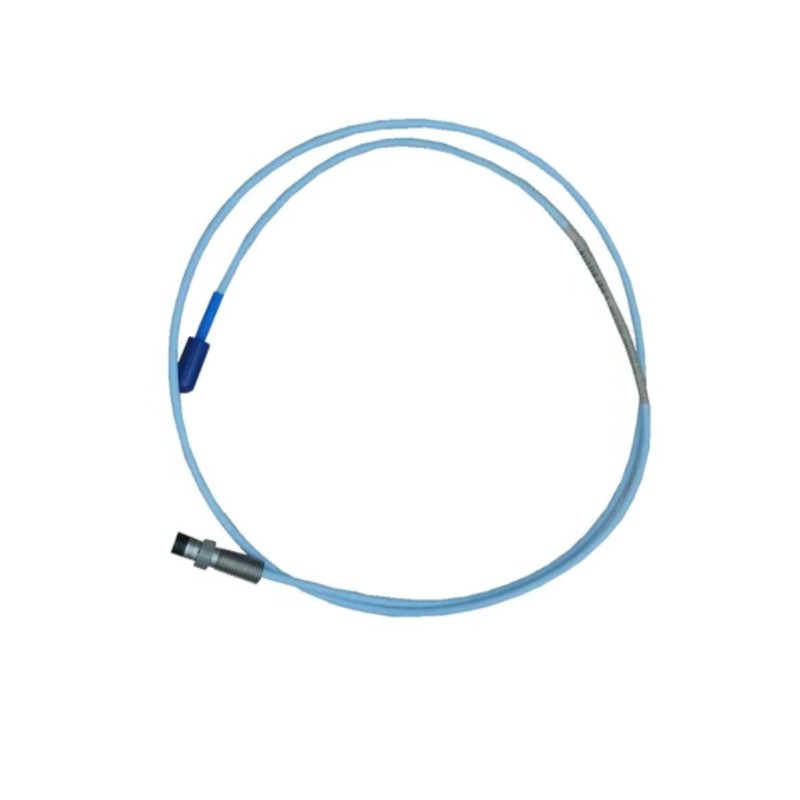

The Bently Nevada 330101-00-75-20-02-05 3300 XL 8 mm Proximity Probe is a premium non-contact eddy current sensor designed for continuous monitoring of shaft vibration, axial position, radial displacement, and speed reference in critical rotating machinery. As a key component of the 3300 XL 8 mm Proximity Transducer System, this probe delivers exceptional measurement accuracy and long-term stability, making it an ideal solution for machinery protection and predictive maintenance programs.
Configured with a 7.5-inch overall case length, 2.0-meter integral cable, miniature coaxial ClickLoc™ connector, and CSA, ATEX, and IECEx approval option, this model is designed for installations requiring extended cable routing and hazardous-area compliance. Its stainless-steel housing resists corrosion and mechanical wear, while the PPS sensing tip provides reliable operation under demanding industrial conditions. The interchangeable design of the 3300 XL system also simplifies maintenance by allowing compatible probes, extension cables, and Proximitor® sensors to work together efficiently, reducing spare parts inventory and maintenance downtime.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-75-20-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 in (Fully Threaded) |
| Overall Case Length | 7.5 in (190.5 mm) |
| Integral Cable Length | 2.0 m (6.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard, Unarmored |
| Agency Approval | CSA, ATEX, IECEx |
| Probe Housing | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Typical Functions | Shaft Vibration, Radial Position, Axial Position, Speed and Phase Reference |
| Operating Temperature | -51°C to +177°C |
| Dimensions | Approx. 190.5 mm probe body with 2.0 m cable |
| Weight | Approx. 0.56 kg |
