High-Performance Vibration Monitoring for Critical Rotating Equipment

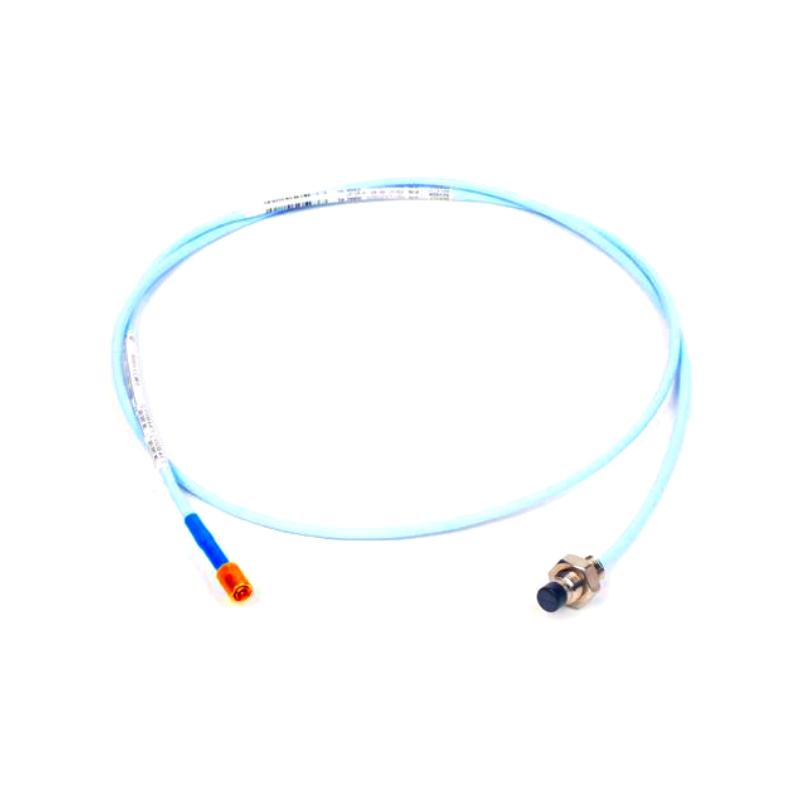

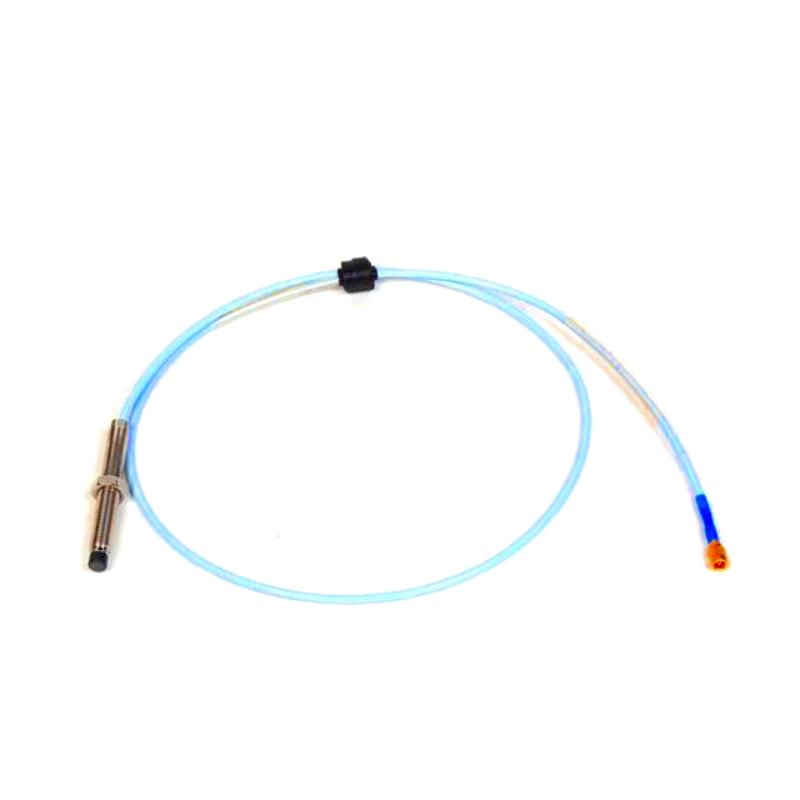

The Bently Nevada 330101-00-92-10-02-05 3300 XL 8 mm Proximity Probe is a precision-engineered non-contact eddy current sensor developed for continuous condition monitoring of rotating machinery. As a member of the proven 3300 XL 8 mm Proximity Transducer System, this probe delivers accurate measurements of shaft vibration, radial displacement, axial position, and speed, enabling maintenance teams to identify potential mechanical issues before they impact production.
Configured with a 9.2-inch overall case length, a 1.0-meter integral cable, a miniature coaxial ClickLoc™ connector, and CSA, ATEX, and IECEx approvals, this model is ideal for installations requiring an extended probe body and certified operation in hazardous environments. Its stainless-steel construction and PPS sensing tip provide outstanding durability, while complete compatibility with matching extension cables and Proximitor® sensors simplifies installation, maintenance, and spare parts management. The 3300 XL platform is recognized for its excellent temperature stability, linearity, and interchangeability across the complete transducer system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-92-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Mounting Thread | 3/8-24 UNF |
| Unthreaded Length | 0 in (Fully Threaded) |
| Overall Case Length | 9.2 in (233.7 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard, Unarmored |
| Agency Approval | CSA, ATEX, IECEx |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 233.7 mm probe body with 1.0 m cable |
| Weight | Approx. 0.37 kg |
