Reliable Non-Contact Measurement for Critical Machinery Protection

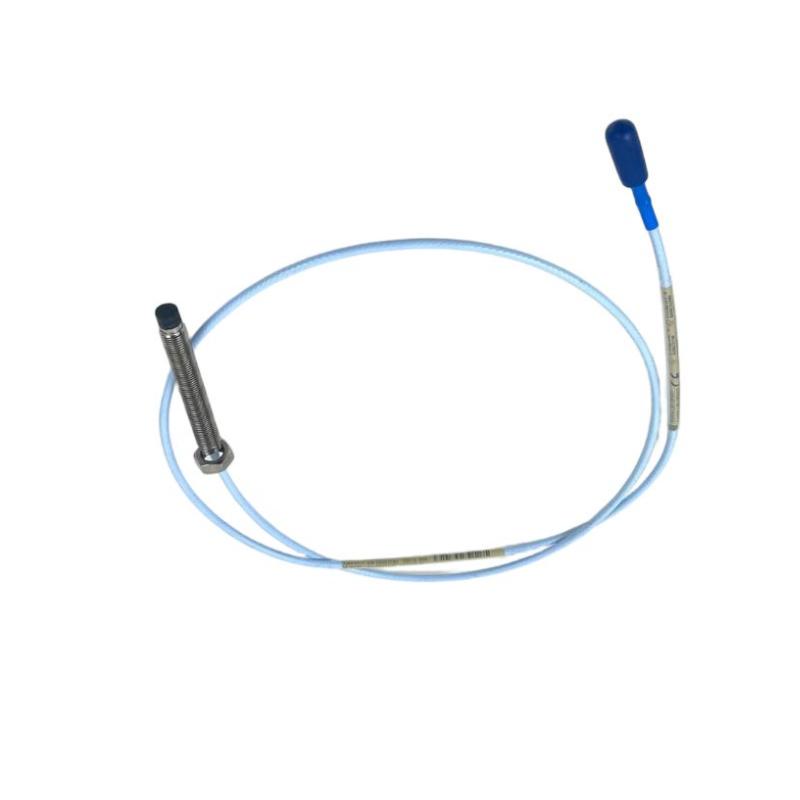

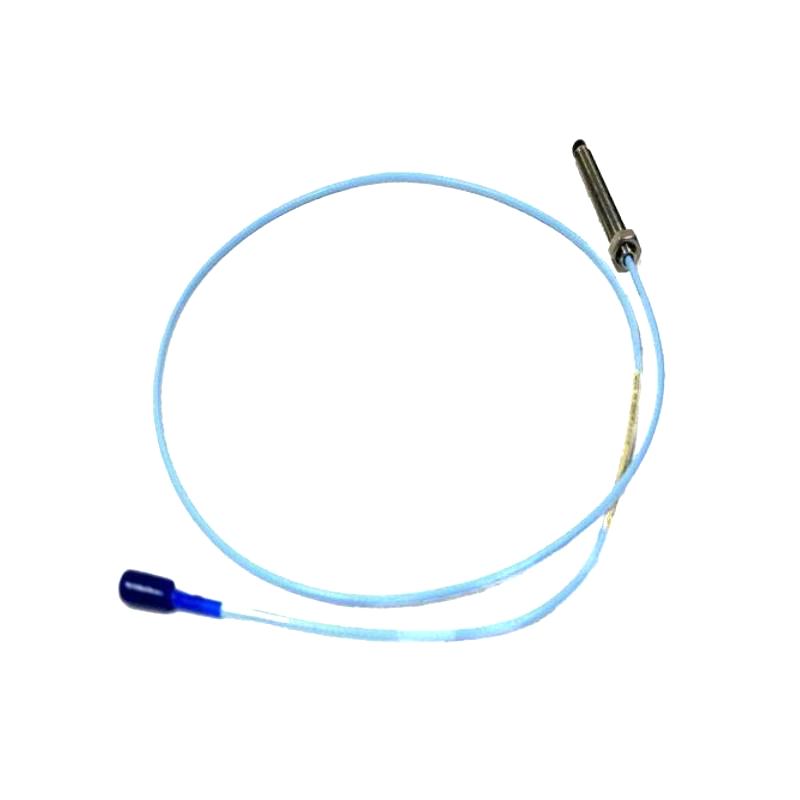

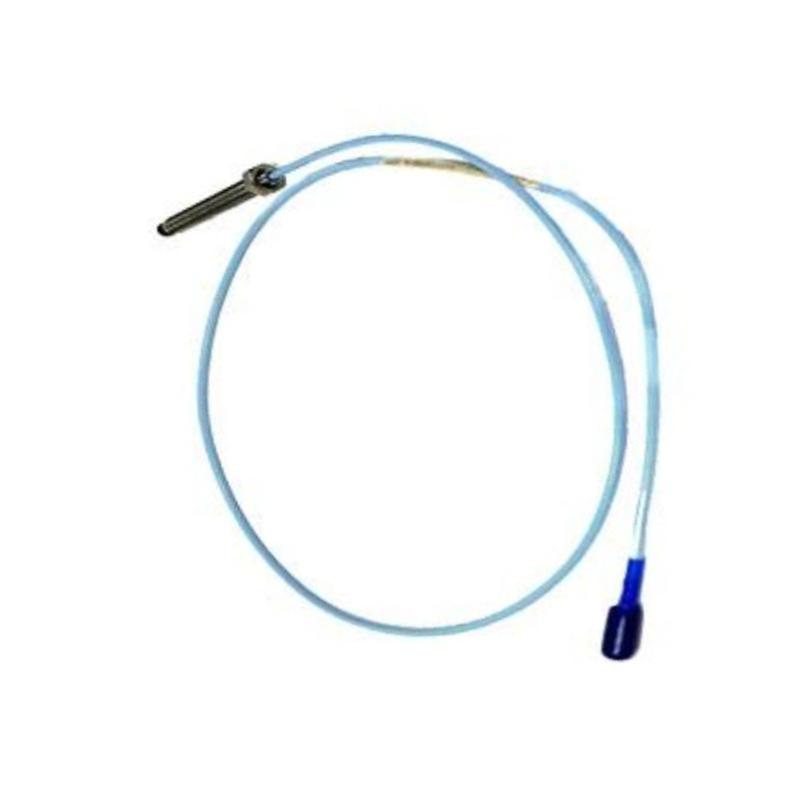

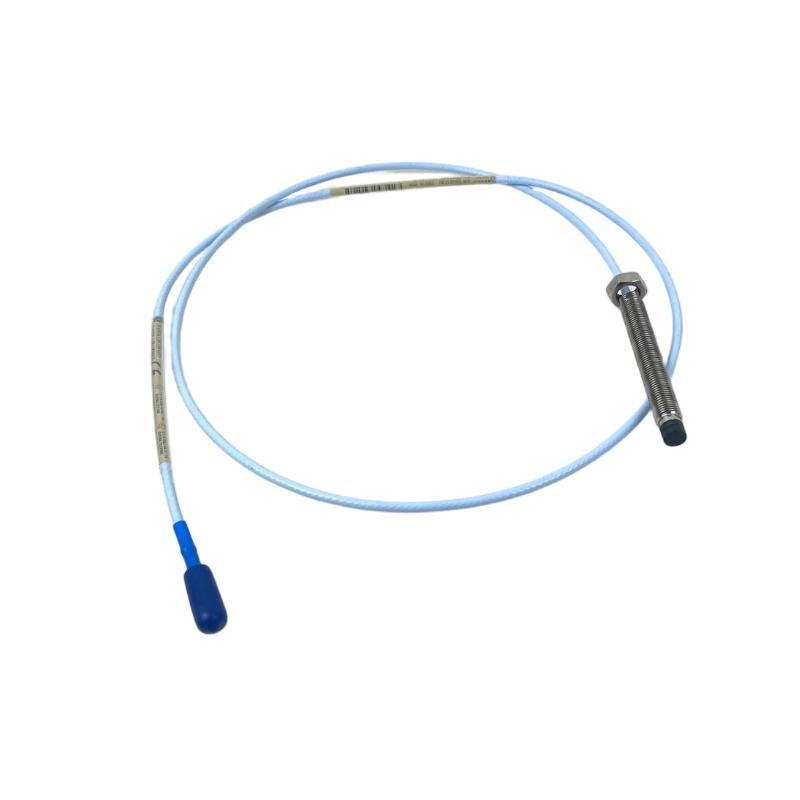

The Bently Nevada 330101-00-75-10-02-00 3300 XL 8 mm Proximity Probe is a precision-engineered eddy current sensor developed for continuous monitoring of rotating equipment in demanding industrial environments. As an integral component of the 3300 XL 8 mm Proximity Transducer System, this probe provides accurate measurements of shaft vibration, axial position, radial displacement, and rotational speed, helping maintenance personnel detect developing faults before they impact production.
This configuration incorporates a 7.5-inch overall case length, 1.0-meter standard unarmored cable, and a miniature coaxial ClickLoc™ connector, offering flexible installation and dependable signal integrity. Designed with a corrosion-resistant stainless-steel housing and a durable PPS sensing tip, the probe delivers excellent long-term stability under continuous operating conditions. Complete interchangeability with compatible 3300 XL extension cables and Proximitor® sensors also simplifies maintenance while reducing inventory requirements. The 3300 XL system is recognized for meeting the performance expectations of modern machinery protection applications, including compliance with API 670 requirements for standard system configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-75-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 in (Fully Threaded) |
| Overall Case Length | 7.5 in (190.5 mm) |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard, Unarmored |
| Agency Approval | Standard (No Agency Approval Option) |
| Probe Housing | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Measurement Functions | Shaft Vibration, Radial Position, Axial Position, Speed and Phase Reference |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 190.5 mm probe body with 1.0 m cable |
| Weight | Approx. 0.34 kg |
