High-Performance Sensing for Critical Rotating Machinery

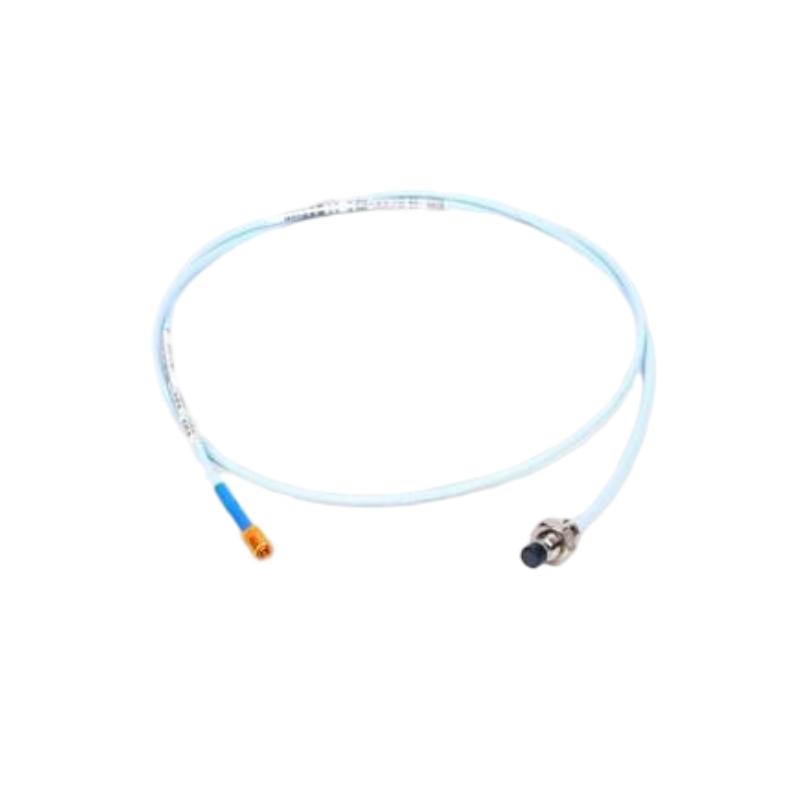

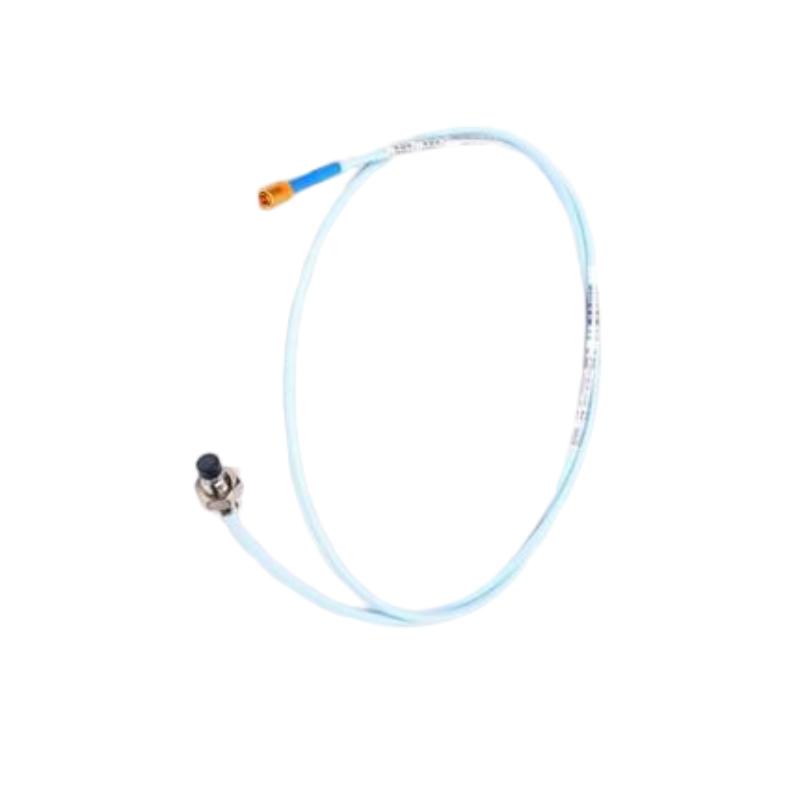

The Bently Nevada 330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe is a premium non-contact eddy current sensor designed to provide accurate vibration, shaft displacement, axial position, and speed measurements for critical rotating equipment. As part of the proven 3300 XL 8 mm Proximity Transducer System, this probe delivers exceptional measurement stability, helping operators enhance equipment reliability and reduce unplanned maintenance.
Configured with a 5.7-inch overall case length, a 1.0-meter standard cable, and a miniature coaxial ClickLoc™ connector, this model is engineered for straightforward installation and dependable long-term operation. The 05 agency approval option includes CSA, ATEX, and IECEx certifications, making it suitable for applications requiring internationally recognized hazardous-area approvals. Its rugged stainless-steel housing and durable PPS probe tip provide excellent resistance to corrosion, vibration, and harsh industrial conditions, ensuring reliable performance throughout the product's service life.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-57-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 in (Fully Threaded) |
| Overall Case Length | 5.7 in (144.8 mm) |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard, Unarmored |
| Agency Approval | CSA, ATEX, IECEx |
| Probe Housing | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Typical Measurements | Shaft Vibration, Radial Position, Axial Position, Speed and Phase Reference |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 144.8 mm probe body with 1.0 m integrated cable |
| Weight | Approx. 0.323 kg |
