Optimized for Accurate Machinery Health Monitoring

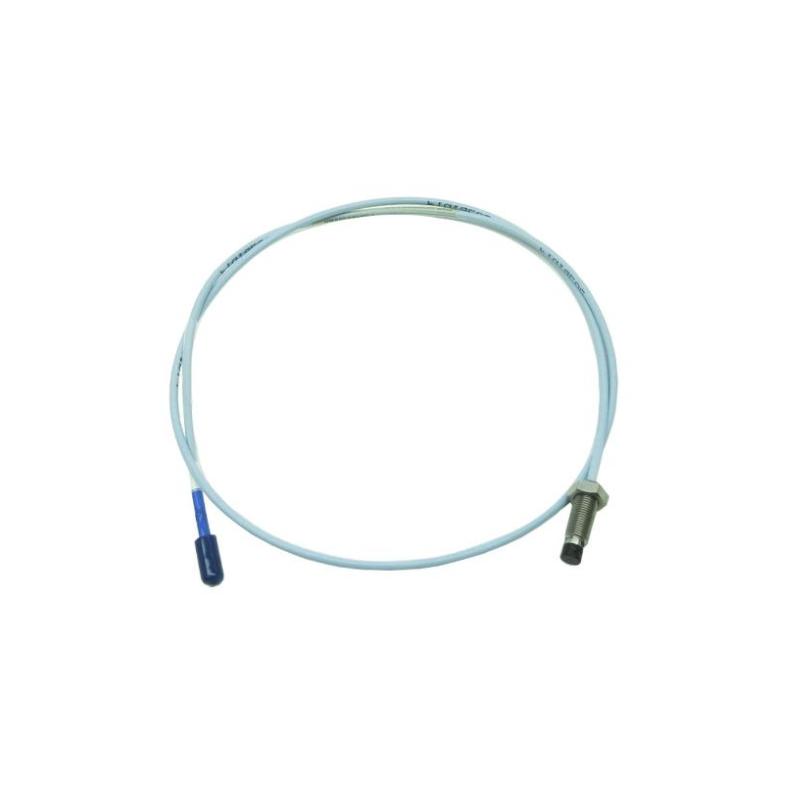

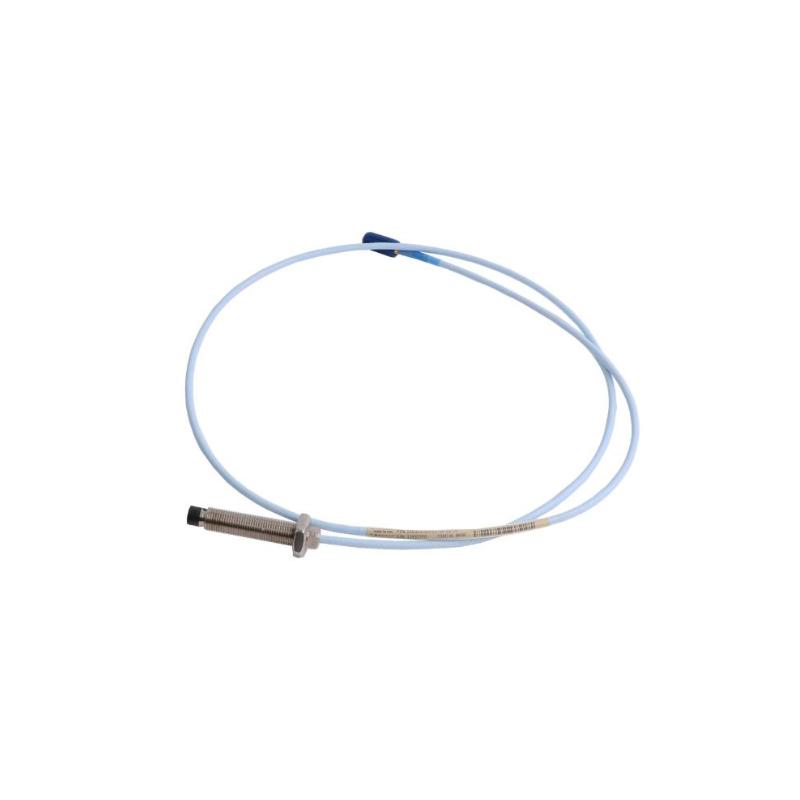

The Bently Nevada 330101-00-56-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision, non-contact sensor designed to monitor shaft vibration, axial position, radial displacement, and rotational speed in critical rotating equipment. As part of the trusted 3300 XL 8 mm Proximity Transducer System, this probe combines advanced eddy current sensing technology with rugged mechanical construction to deliver reliable, repeatable measurements in demanding industrial applications.
This configuration features a 5.6-inch overall case length, 1.0-meter standard cable, and a miniature coaxial ClickLoc™ connector, providing secure installation and excellent compatibility with matching extension cables and Proximitor® sensors. Designed for long-term operation, the probe supports complete component interchangeability within the 3300 XL system, reducing maintenance complexity and minimizing equipment downtime. Its durable stainless-steel housing and high-performance PPS sensing tip make it well suited for continuous operation in harsh industrial environments. The 3300 XL platform also complies with widely recognized machinery protection standards, making it a preferred choice for condition monitoring professionals.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-56-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 in (Fully Threaded) |
| Overall Case Length | 5.6 in (142.2 mm) |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard, Unarmored |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | AISI 303/304 Stainless Steel |
| Typical Functions | Shaft Vibration, Axial Position, Radial Displacement, Speed and Phase Reference |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 142.2 mm probe body with 1.0 m cable |
| Weight | Approx. 0.33 kg |
