Engineered for Accurate and Continuous Machinery Condition Monitoring

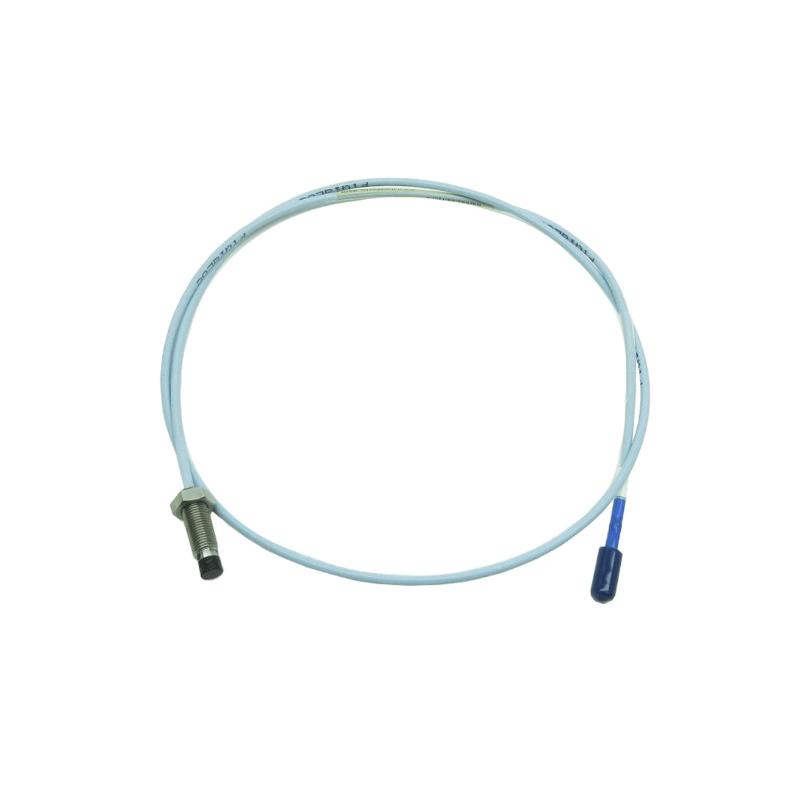

The Bently Nevada 330101-00-55-10-02-00 3300 XL 8 mm Proximity Probe is a high-performance non-contact sensor developed to deliver precise shaft vibration and displacement measurements for critical rotating machinery. As a key component of the trusted 3300 XL 8 mm Proximity Transducer System, this probe combines advanced eddy current sensing technology with rugged mechanical construction to provide dependable monitoring in demanding industrial environments.
Configured with a 5.5-inch overall case length, 1.0-meter standard cable, and miniature coaxial ClickLoc™ connector, this model is designed for easy installation and seamless integration with compatible extension cables and Proximitor® sensors. Its fully threaded stainless-steel housing and durable PPS probe tip ensure long service life while maintaining measurement stability under challenging operating conditions.
Whether installed on turbines, compressors, generators, or industrial pumps, the 330101-00-55-10-02-00 supports predictive maintenance strategies by providing reliable machinery condition data that helps reduce unplanned downtime, improve equipment availability, and optimize maintenance schedules.
Technical Profile
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-55-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 in (Fully Threaded) |
| Overall Case Length | 5.5 in (139.7 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard, Unarmored |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | AISI 303/304 Stainless Steel |
| Measurement Functions | Shaft Vibration, Radial Position, Axial Position, Speed and Phase Reference |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 139.7 mm probe body with 1.0 m cable |
| Weight | Approx. 0.323 kg |
