Precision Monitoring for Critical Rotating Equipment

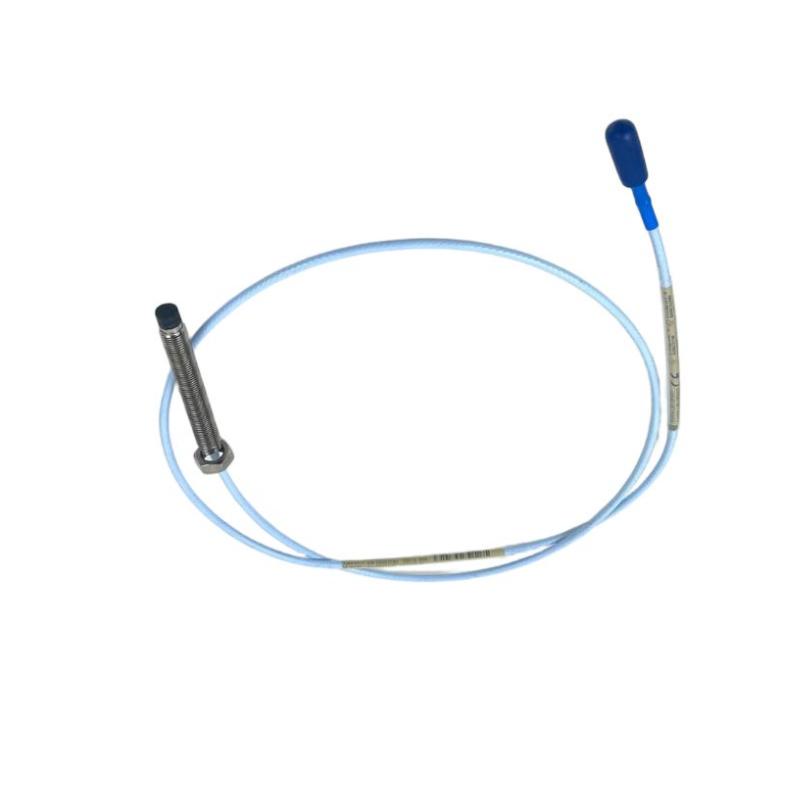

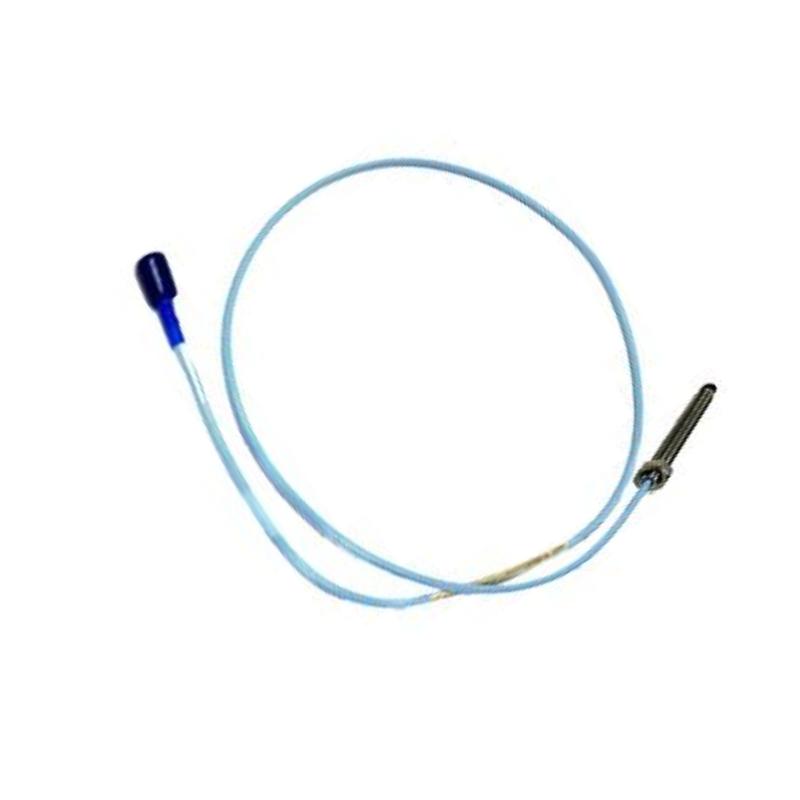

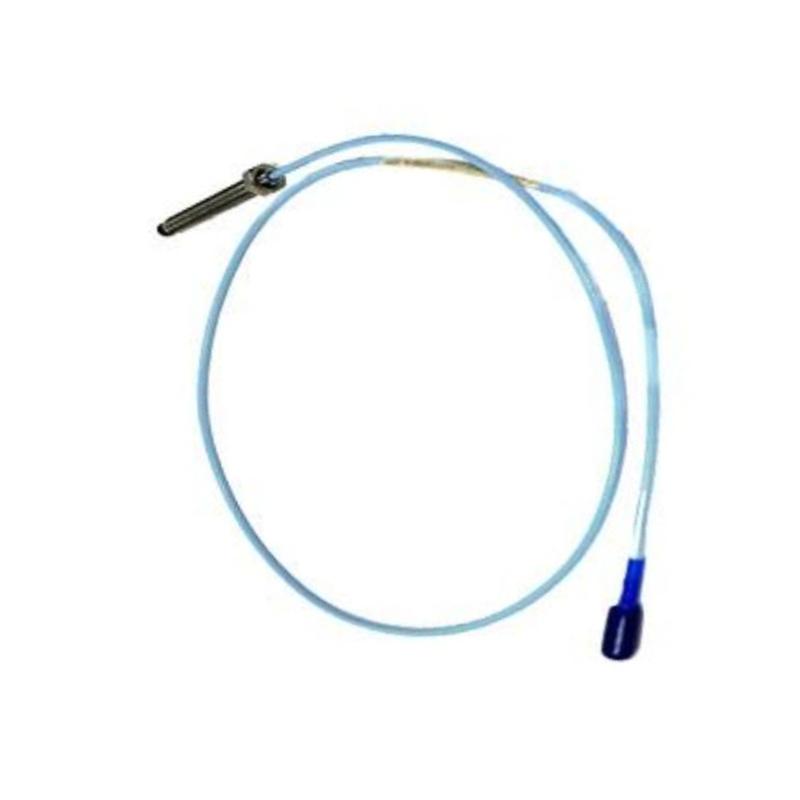

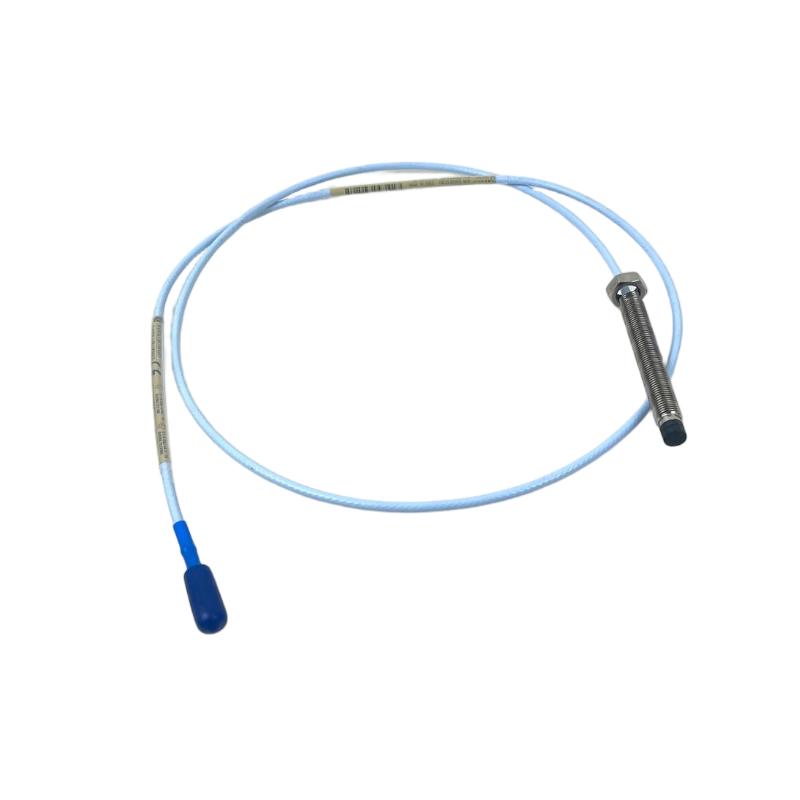

The Bently Nevada 330101-00-53-10-02-05 3300 XL 8 mm Proximity Probe is an industrial-grade eddy current proximity sensor engineered for continuous shaft vibration and position monitoring in demanding rotating machinery applications. As part of the renowned 3300 XL 8 mm Proximity Transducer System, this probe delivers highly stable and repeatable measurements, making it an excellent choice for predictive maintenance and machinery protection systems.
Designed for compatibility with 3300 XL extension cables and Proximitor® sensors, this probe offers exceptional interchangeability without requiring individual calibration between system components. Its robust stainless-steel construction, advanced TipLoc® probe technology, and reliable cable retention contribute to long-term performance even in harsh industrial environments.
Whether installed on steam turbines, compressors, centrifugal pumps, or large electric motors, the 330101-00-53-10-02-05 helps maintenance teams monitor shaft displacement and vibration with confidence, supporting improved equipment reliability, reduced unplanned downtime, and optimized maintenance planning. The probe also conforms to widely accepted machinery protection practices, making it a trusted solution for critical asset monitoring.
Engineering Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-53-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Sensing Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0 in (Fully Threaded) |
| Overall Case Length | 5.3 in |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Probe Material | PPS Probe Tip with Stainless Steel Housing |
| Operating Function | Shaft Vibration, Axial Position, Speed and Phase Reference |
| Typical Applications | Turbines, Compressors, Pumps, Motors |
| Dimensions | Approx. 134.6 mm overall case length with 1 m cable configuration |
| Weight | Approx. 0.32 kg (probe assembly equivalent configuration) |
